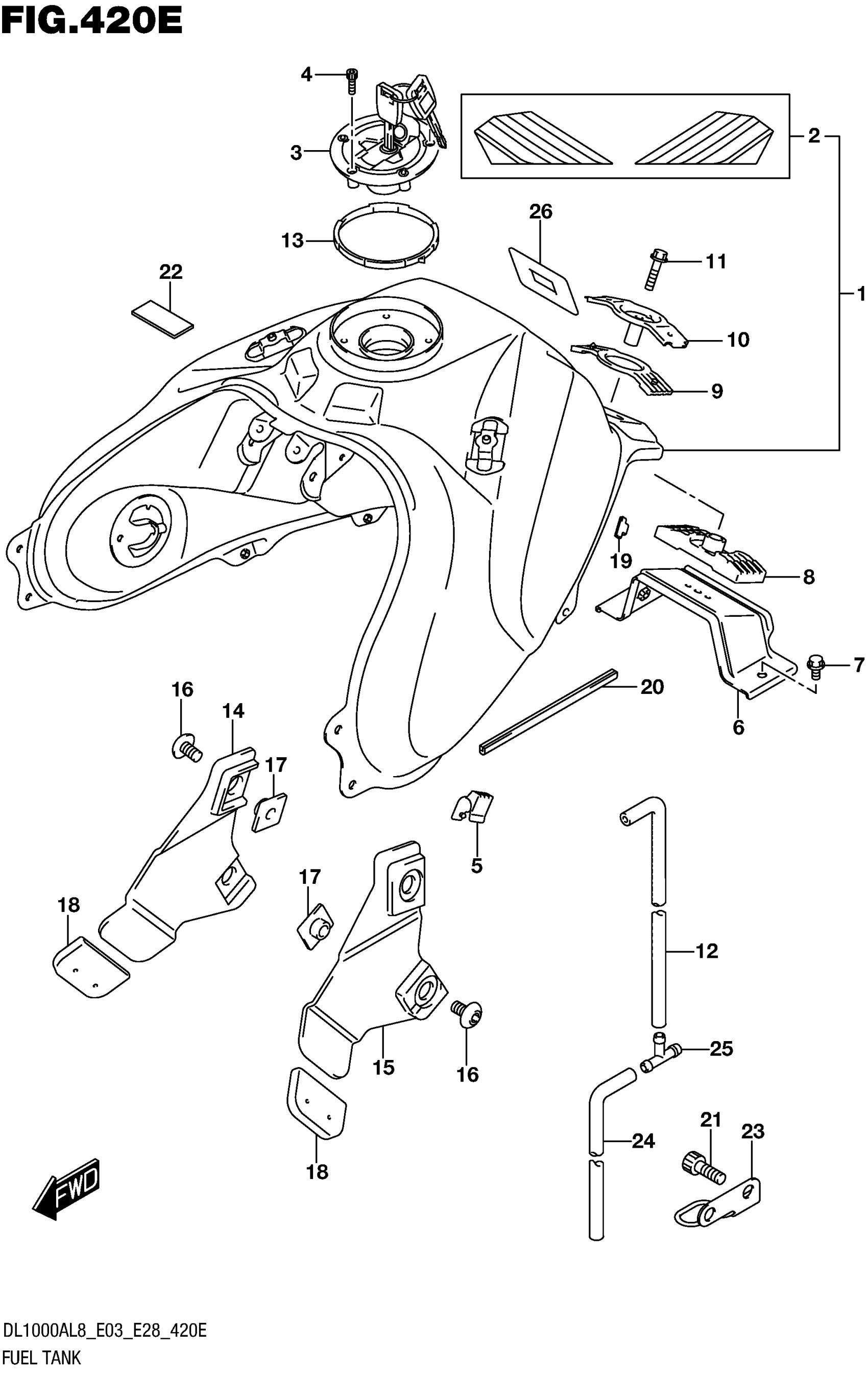

Suzuki DL1000XAL8 (2018) FUEL TANK (DL1000AL8 E33) (FOR YU1) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW)

44100-31JA0-YU1

$1,253.20

2

.TAPE SET, FUEL TANK

68110-31J00-GY8

$54.08

2

(YELLOW/BLACK)

68110-31J00-GY8

$54.08

3

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

4

BOLT

44244-11J00

$4.00

5

CUSHION,FUEL TANK SIDE

44541-31J00

Unavailable

6

BRACKET,FUEL TANK REAR

44550-31J00

Unavailable

7

BOLT (8X16)

01550-0816A

$2.32

8

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

9

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

10

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

11

BOLT (8X35)

01550-0835A

$3.04

12

HOSE, WATER DRAIN

44423-31J20

Unavailable

13

MOLDING, FUEL TANK COVER

68241-31J00

Unavailable

14

BRACKET, FUEL TANK COVER

44179-31J00

$11.58

14

SIDE RH

44179-31J00

$11.58

15

BRACKET, FUEL TANK COVER

44189-31J00

$11.58

15

SIDE LH

44189-31J00

$11.58

16

SCREW (6X10)

09139-06181

$3.83

17

NUT (M6)

44523-47H00

$10.02

18

CUSHION,FUEL TANK COVER BRKT

44542-31J00

$4.82

19

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

20

MOLDING, FUEL TANK REAR

44552-24B00

$14.08

21

BOLT

07130-1016B

Unavailable

22

CUSHION, FUEL TANK

44544-31J00

$5.52

23

GUIDE,DRAIN HOSE

44480-31J00

$10.18

24

HOSE, FUEL TANK DRAIN NO.2

44423-31J11

Unavailable

25

3 WAY

09367-08005

$4.83

26

CUSHION

44545-31J00

Unavailable
