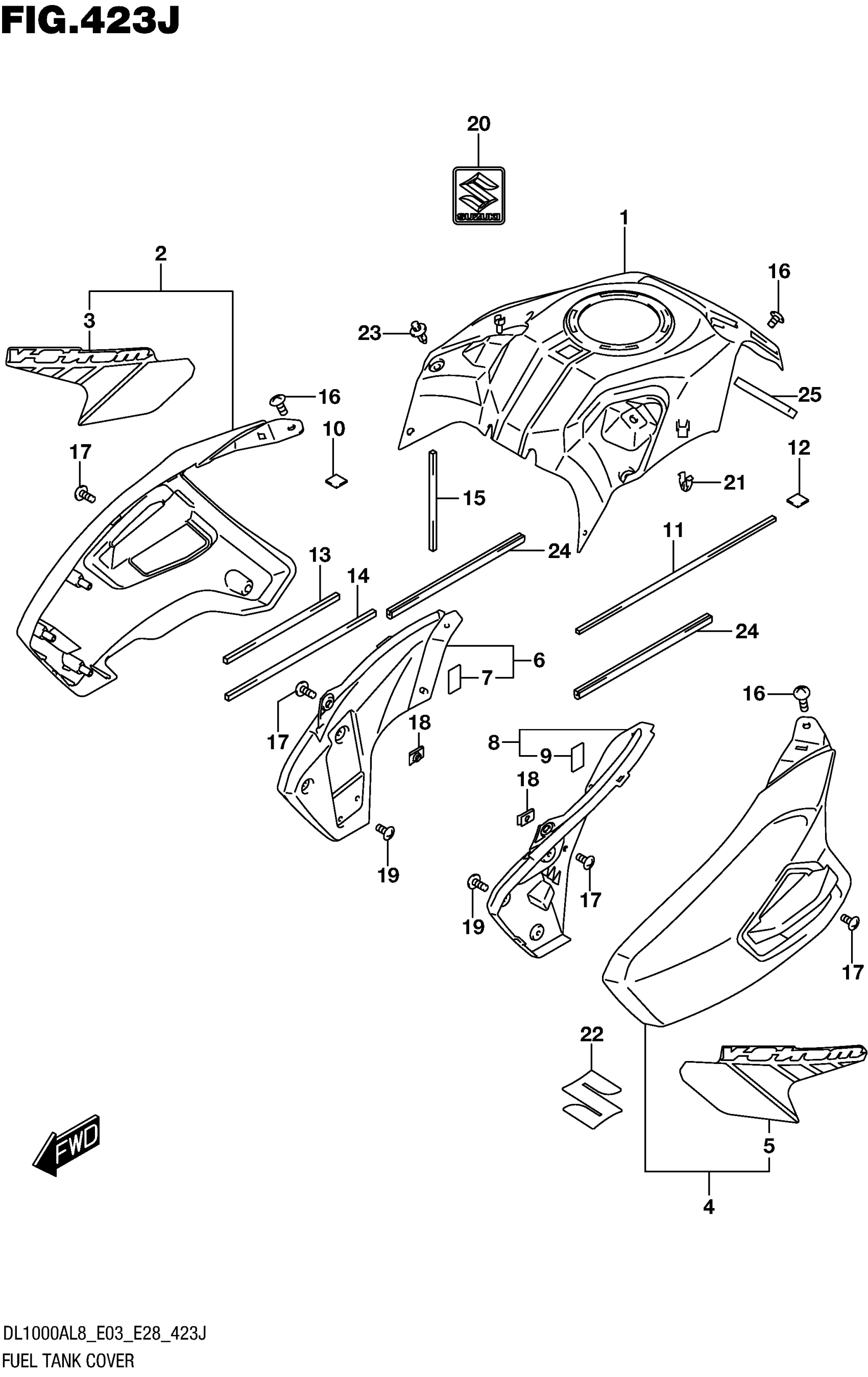

Suzuki DL1000XAL8 (2018) FUEL TANK COVER (DL1000XAL8 E33) Diagram

#

Description
Price

1

COVER,FUEL TANK This part replaces 44191-31J00-YKV.

44191-31J01-YKV

$295.07

1

COVER,FUEL TANK This part replaces 44191-31J00-YKV.

44191-31J01-YKV

$295.07

2-1

COVER COMP,FUEL | FOR YU1 This part replaces 44170-31J10-YKV.

44170-31J11-YKV

$205.13

2-1

COVER COMP,FUEL This part replaces 44170-31J10-YKV.

44170-31J11-YKV

$205.13

2-2

COVER COMP,FUEL | FOR YVB,YWW This part replaces 44170-31J10-4TX.

44170-31J11-4TX

$209.00

2-2

COVER COMP,FUEL This part replaces 44170-31J10-4TX.

44170-31J11-4TX

$209.00

3-1

.TAPE, FUEL TANK COVER RH | FOR YKV

68125-31J00-BHA

$35.25

3-2

.TAPE, FUEL TANK COVER RH | FOR 4TX

68125-31J00-BG4

$35.25

4-1

COVER COMP,FUEL | FOR YU1 This part replaces 44180-31J10-YKV.

44180-31J11-YKV

$209.00

4-1

COVER COMP,FUEL This part replaces 44180-31J10-YKV.

44180-31J11-YKV

$209.00

4-2

COVER COMP,FUEL | FOR YVB,YWW This part replaces 44180-31J10-4TX.

44180-31J11-4TX

$177.67

4-2

COVER COMP,FUEL This part replaces 44180-31J10-4TX.

44180-31J11-4TX

$177.67

5-1

.TAPE, FUEL TANK COVER LH | FOR YKV

68135-31J00-BHA

$35.25

5-2

.TAPE, FUEL TANK COVER LH | FOR 4TX

68135-31J00-BG4

$35.25

6

COVER, FUEL TANK FRONT RH

44270-31J00

$41.57

7

.TAPE, FUEL TANK COVER

45517-31J00

$8.40

8

COVER, FUEL TANK FRONT LH

44280-31J00

$41.57

9

.TAPE, FUEL TANK COVER

45517-31J00

$8.40

10

CUSHION, TANK COVER SIDE NO.4 | CUT AS REQUIRED

44612-13600

$4.65

11

CUSHION, FUEL TANK COVER

44277-01H00

$5.18

12

CUSHION, FUEL TANK COVER NO.2

94642-10GA0

$4.03

13

CUSHION (5X120X6)

44176-31J00

$2.75

14

CUSHION, TANK COVER SIDE NO.2

44177-31J00

$3.08

15

CUSHION

44178-31J00

$2.87

16

BOLT (6X10)

09139-06172

$3.04

17

BOLT (5X13)

09139-05074

$2.61

18

NUT

09148-05052

$3.37

19

SCREW

03241-0516B

$1.74

20

EMBLEM, "S"

68281-47HA0

$7.77

21

CLIP

09409-08326

$2.48

22

EMBLEM, "S"

68111-47HA0

$40.44

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

24

MOLDING, FUEL TANK

44552-24B00

$14.08

25

CUSHION

45289-05H00

$4.11
