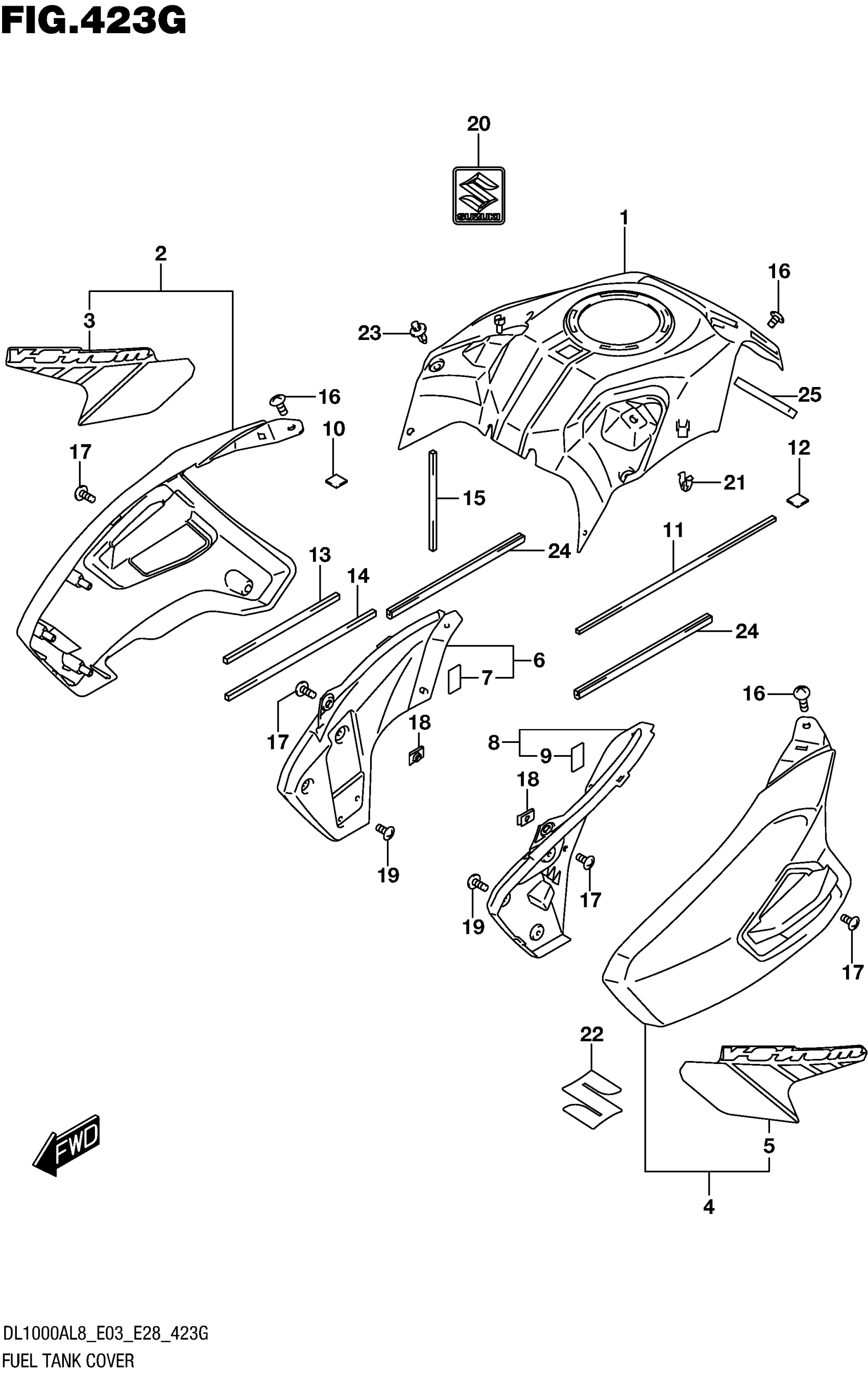

Suzuki DL1000XAL8 (2018) FUEL TANK COVER (DL1000XAL8 E03) Diagram

#

Description
Price

1

COVER,FUEL TANK This part replaces 44191-31J00-YKV.

44191-31J01-YKV

$325.18

1

COVER,FUEL TANK This part replaces 44191-31J00-YKV.

44191-31J01-YKV

$325.18

2-1

COVER COMP,FUEL | FOR YU1 This part replaces 44170-31J10-YKV.

44170-31J11-YKV

$228.28

2-1

COVER COMP,FUEL This part replaces 44170-31J10-YKV.

44170-31J11-YKV

$228.28

2-2

COVER COMP,FUEL | FOR YVB,YWW This part replaces 44170-31J10-4TX.

44170-31J11-4TX

$232.58

2-2

COVER COMP,FUEL This part replaces 44170-31J10-4TX.

44170-31J11-4TX

$232.58

3-1

.TAPE, FUEL TANK COVER RH | FOR YKV

68125-31J00-BHA

$39.80

3-2

.TAPE, FUEL TANK COVER RH | FOR 4TX

68125-31J00-BG4

$39.80

4-1

COVER COMP,FUEL | FOR YU1 This part replaces 44180-31J10-YKV.

44180-31J11-YKV

$232.58

4-1

COVER COMP,FUEL This part replaces 44180-31J10-YKV.

44180-31J11-YKV

$232.58

4-2

COVER COMP,FUEL | FOR YVB,YWW This part replaces 44180-31J10-4TX.

44180-31J11-4TX

$127.93

4-2

COVER COMP,FUEL This part replaces 44180-31J10-4TX.

44180-31J11-4TX

$127.93

5-1

.TAPE, FUEL TANK COVER LH | FOR YKV

68135-31J00-BHA

$39.80

5-2

.TAPE, FUEL TANK COVER LH | FOR 4TX

68135-31J00-BG4

$39.80

6

COVER, FUEL TANK FRONT RH

44270-31J00

$46.92

7

.TAPE, FUEL TANK COVER

45517-31J00

$9.48

8

COVER, FUEL TANK FRONT LH

44280-31J00

$46.92

9

.TAPE, FUEL TANK COVER

45517-31J00

$9.48

10

CUSHION, TANK COVER SIDE NO.4 | CUT AS REQUIRED

44612-13600

$5.27

11

CUSHION, FUEL TANK COVER

44277-01H00

$4.87

12

CUSHION, FUEL TANK COVER NO.2

94642-10GA0

$4.57

13

CUSHION (5X120X6)

44176-31J00

$3.10

14

CUSHION, TANK COVER SIDE NO.2

44177-31J00

$3.48

15

CUSHION

44178-31J00

$3.25

16

BOLT (6X10)

09139-06172

$2.80

17

BOLT (5X13)

09139-05074

$2.58

18

NUT

09148-05052

$3.04

19

SCREW

03241-0516B

$1.68

20

EMBLEM, "S"

68281-47HA0

$7.11

21

CLIP

09409-08326

$2.45

22

EMBLEM, "S"

68111-47HA0

$37.02

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

24

MOLDING, FUEL TANK

44552-24B00

$13.26

25

CUSHION

45289-05H00

$3.01
