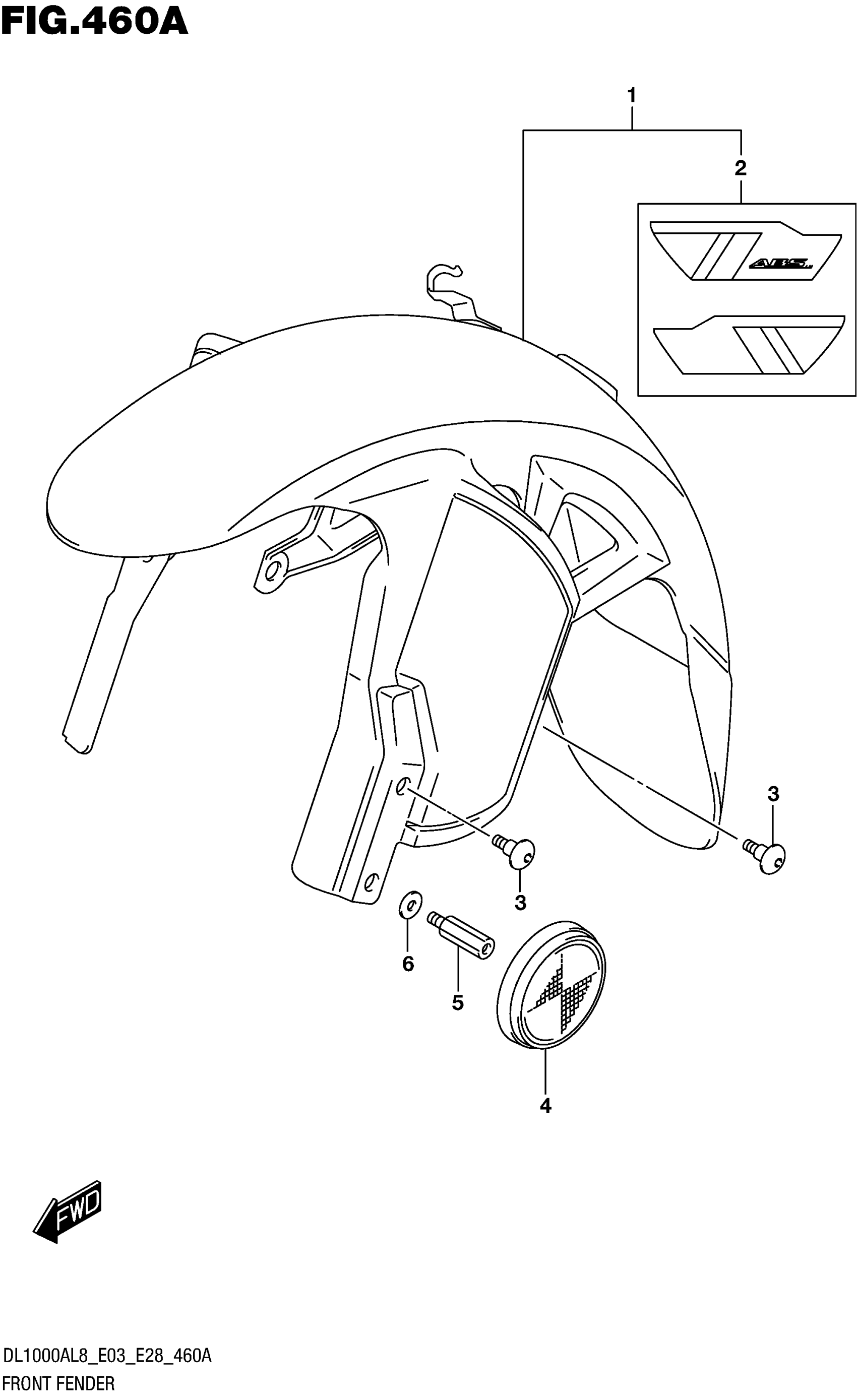

Suzuki DL1000XAL8 (2018) FRONT FENDER (DL1000AL8 E03) (FOR YU1) Diagram

#

Description

Price

1

FENDER ASSY,FRO This part replaces 53100-31J20-BG7.

53100-31J21-BG7

$195.37

2

.TAPE SET, FRONT FENDER

68150-31J00-BG7

Unavailable

3

SCREW

47915-31J00

$2.92

4

REFLEX REFLECTOR ASSY,FR SIDE This part replaces 35950-13K00.

35950-13K01

$12.46

5

BOLT

09119-06109

$13.28

6

WASHER (8.5X18X1)

09160-08043

$1.83
