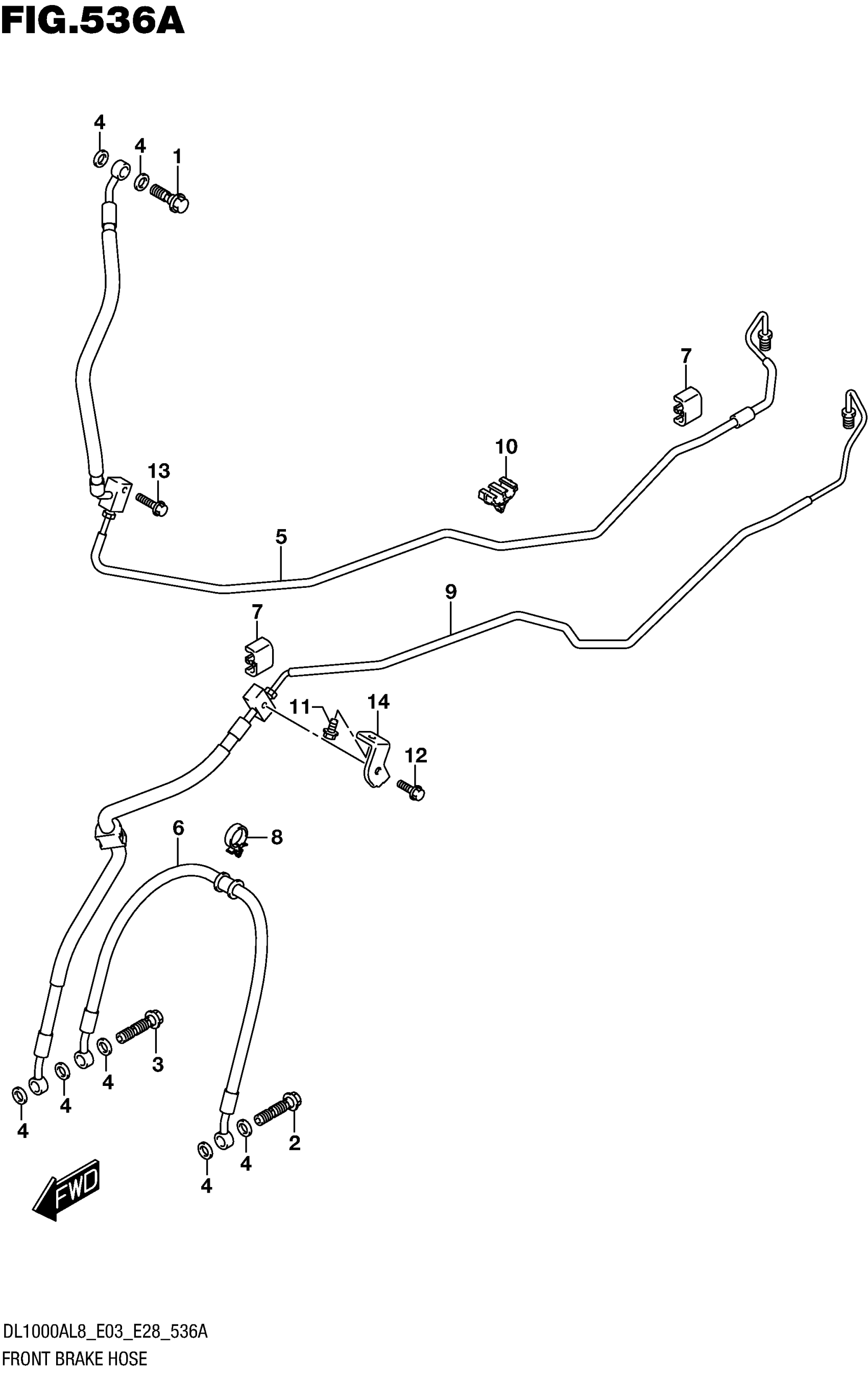

Suzuki DL1000XAL8 (2018) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION

09360-10062

$6.43

2

UNION

09360-10062

$6.43

3

UNION

09360-10064

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE ASSY, FRONT BRAKE NO.1

59200-31J20

Unavailable

6

HOSE, FRONT BRAKE NO.2

59240-31J20

Unavailable

7

CLAMP

09403-06324

Unavailable

8

CLAMP

09403-16412

$3.37

9

HOSE ASSY, FR BRAKE NO.2

59400-31J20

Unavailable

10

CLAMP

09403-07334

Unavailable

11

BOLT

01547-0612A

$2.03

12

BOLT

01547-0616A

$2.03

13

BOLT

01547-0625A

$2.01

14

CLAMP, FRONT BRAKE HOSE NO.1

59261-31J00

Unavailable
