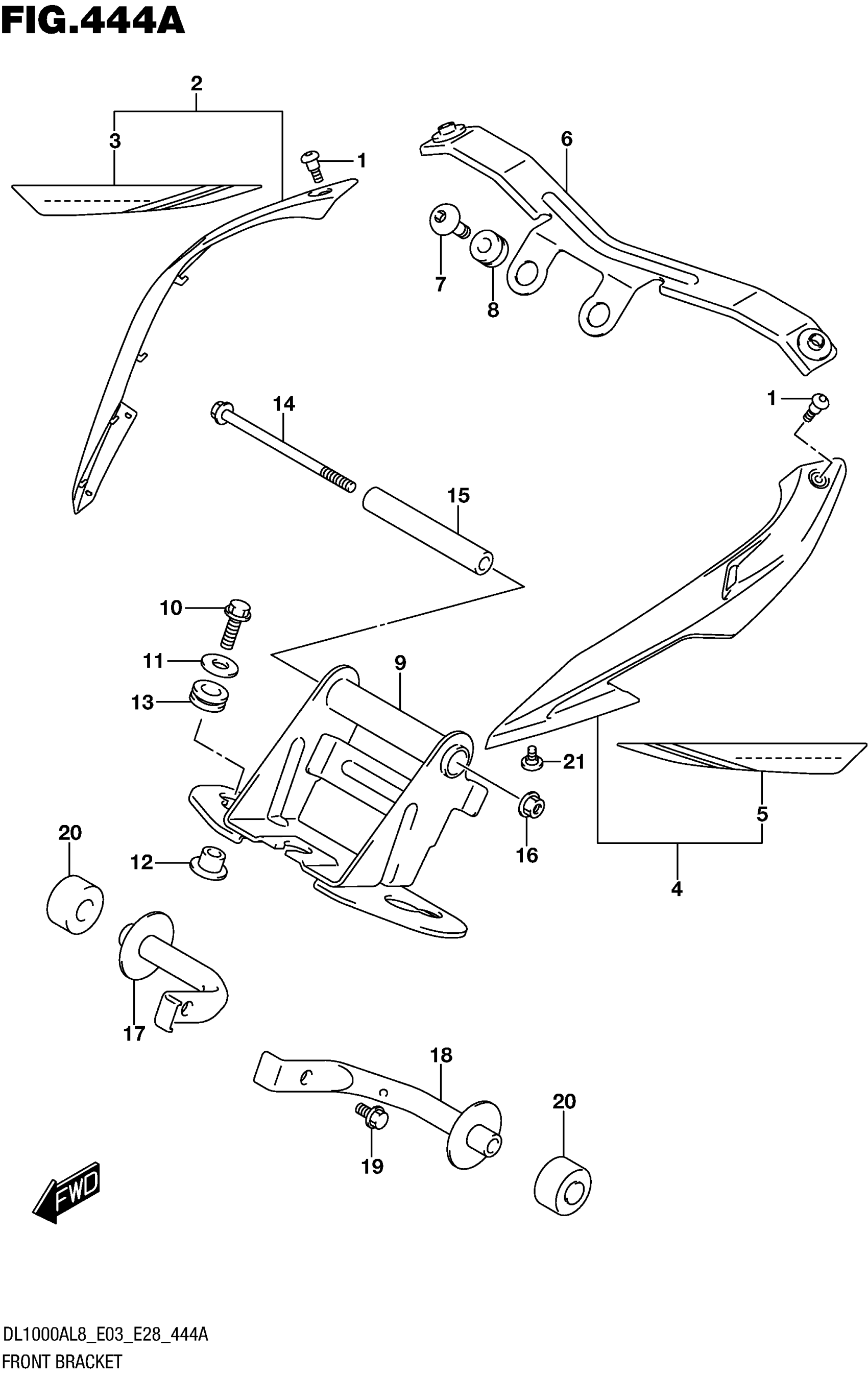

Suzuki DL1000XAL8 (2018) FRONT BRACKET (DL1000AL8 E03) (FOR YU1) Diagram

#

Description
Price

1

SCREW

44193-31J00

$5.33

2

COVER, SIDE REAR RH (SILVER)

94420-31J20-YMD

$145.97

3

.TAPE, COVER SIDE RH

68275-31J00-BG5

$26.48

4

COVER, SIDE REAR LH (SILVER)

94430-31J20-YMD

$148.73

5

.TAPE, COVER SIDE LH

68285-31J00-BG5

$26.48

6

BRACKET, COVER

44160-31J00

$21.38

7

BOLT (6X20)

09139-06190

$4.17

8

CUSHION, COVER

44164-31J00

Unavailable

9

BRACKET,FUEL TANK FRONT

44520-31J01

$57.32

10

SCREW (6X25)

09139-06192

$3.23

11

WASHER This part replaces 09160-06012.

09160-06054

$1.62

12

SPACER, FUEL TANK FR

44512-16G00

$7.44

13

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

14

BOLT

01550-0695A

Unavailable

15

SPACER

44561-35F00

$13.88

16

NUT

08319-3106B

$2.45

17

BRACKET, SIDE RH

44560-31J00

$16.58

18

BRACKET, SIDE LH

44560-31J00

$16.58

19

BOLT

01550-0612A

$1.97

20

CUSHION,FRONT SIDE BRKT This part replaces 44543-31J00.

44543-31J01

$5.00

21

SCREW (5X13)

09139-05091

$2.03
