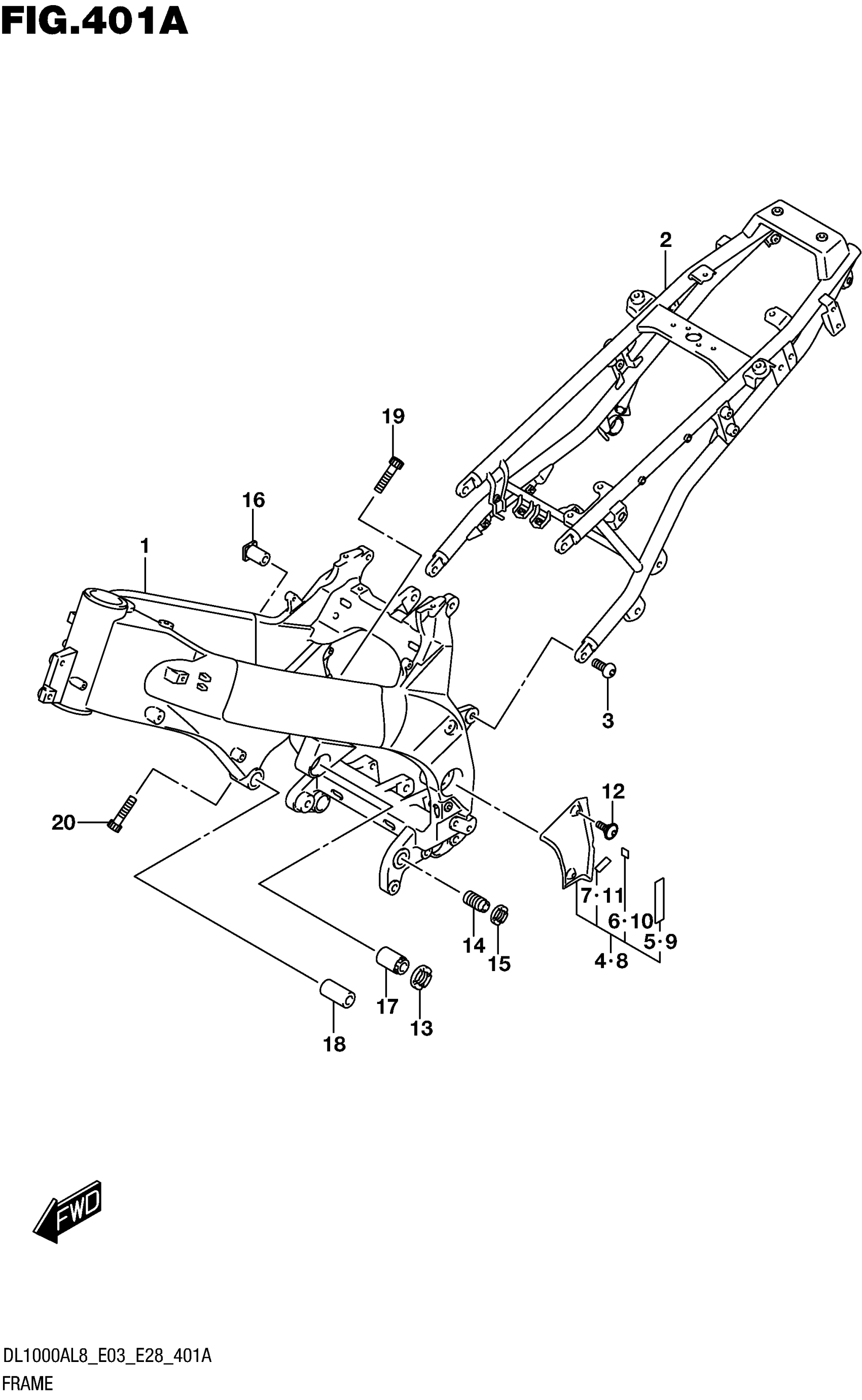

Suzuki DL1000XAL8 (2018) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-31J10-YAP

Unavailable

2

RAIL, SEAT (BLACK)

41200-31J20-YAP

$812.88

3

BOLT (10X25)

09139-10003

$6.93

4

COVER,PIVOT RH

43580-31J00

$23.38

5

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

6

CUSHION (10X10X1)

63115-37H00

$3.64

7

CUSHION (10X30X2)

94429-21E00

$3.07

8

COVER,PIVOT LH

43590-31J00

$23.38

9

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

10

CUSHION (10X10X1)

63115-37H00

$3.64

11

CUSHION (10X30X2)

94429-21E00

$3.07

12

BOLT (5X13)

09139-05074

$2.61

13

NUT,CRANK CASE ADJUST CTR

41922-19F20

$18.90

14

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

$23.47

15

NUT, ADJUSTER LOWER

41922-33E20

Unavailable

16

SPACER, ADJUSTER UPPER

41941-19F01

$40.33

17

BOLT, CRANK CASE ADJUST

41921-47H00

$52.60

18

SPACER, ENG HEAD MTG RR LH

41942-02F00

$28.70

19

BOLT

07130-0840B

$3.91

20

BOLT

07130-0840B

$3.91
