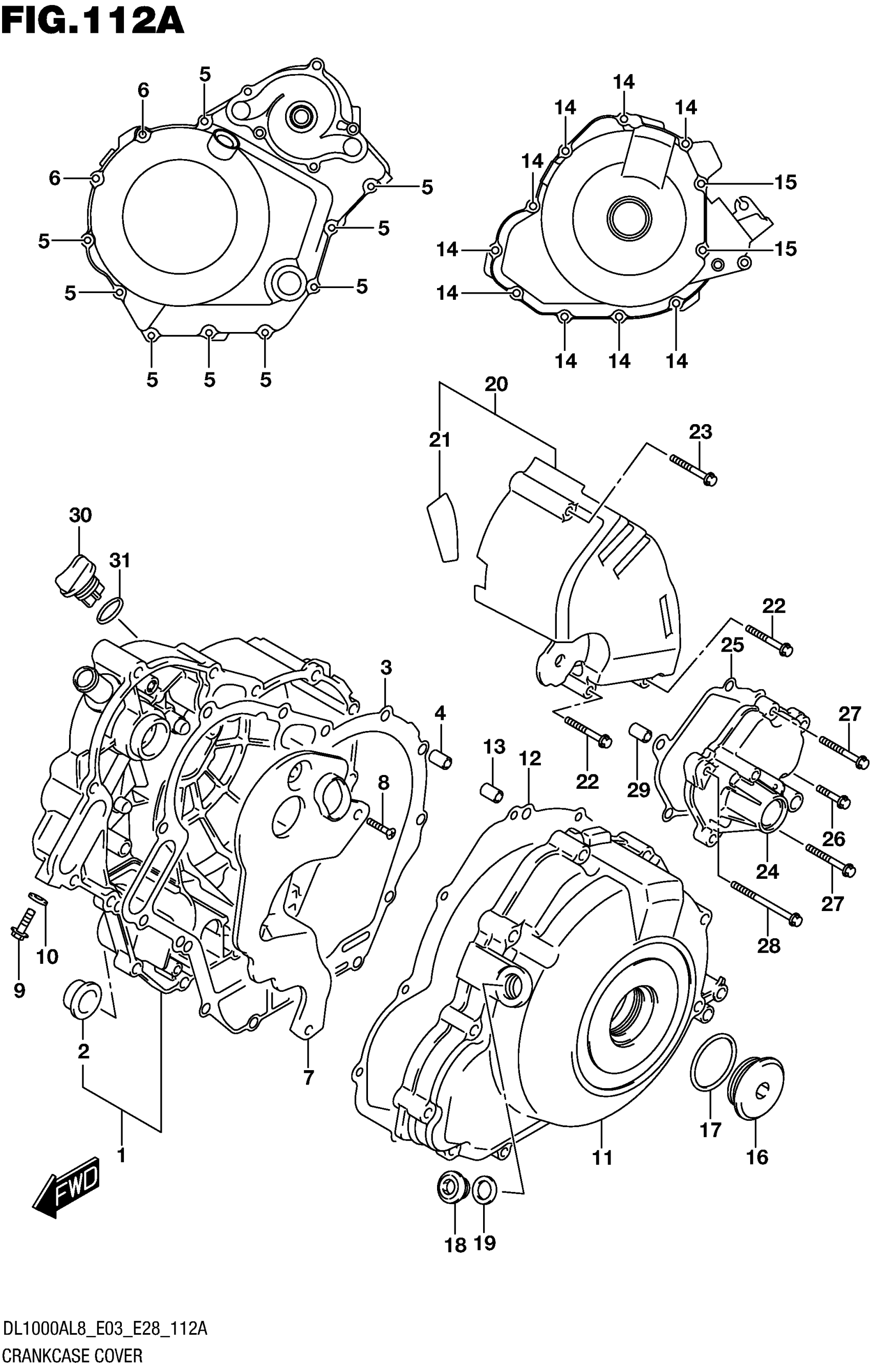

Suzuki DL1000XAL8 (2018) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-06G40

$348.22

2

.LENS, OIL LEVEL CHECK

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-06G10

$19.35

4

PIN

04211-09149

$1.65

5

BOLT (6X30)

09103-06213

$2.47

6

BOLT (6X75)

09103-06257

$3.14

7

SEPARATOR,OIL

11342-06G00

$57.33

8

SCREW

02112-0612A

$1.49

9

BOLT

01550-0610A

$1.97

10

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

11

COVER,MAGNETO This part replaces 11351-31J10.

11351-31J11

$294.20

12

GASKET, MAGNETO COVER

11483-02F10

$17.54

13

PIN

04211-09149

$1.65

14

BOLT (6X35)

09103-06214

$2.48

15

BOLT (6X80)

09103-06263

$3.78

16

PLUG

09259-36027

$17.38

17

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

18

PLUG (14X12)

09248-14011

$2.98

19

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

20

COVER,ENG SPROCKET

11360-31J00

$48.22

21

.SHEET, SPROCKET COVER

11362-31J00

$8.92

22

BOLT (6X35)

09103-06214

$2.48

23

BOLT (6X60)

09103-06261

$3.16

24

COVER,GEAR SHIFT

11381-06G00

$99.63

25

GASKET

11485-02F10

$4.99

26

BOLT (6X105)

09103-06314

Unavailable

27

BOLT

01547-0625A

$2.01

28

BOLT

01547-0635A

$2.30

29

PIN

04211-09149

$1.65

30

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

31

O RING (D:3.1,ID:16.8)

09280-17003

$1.65
