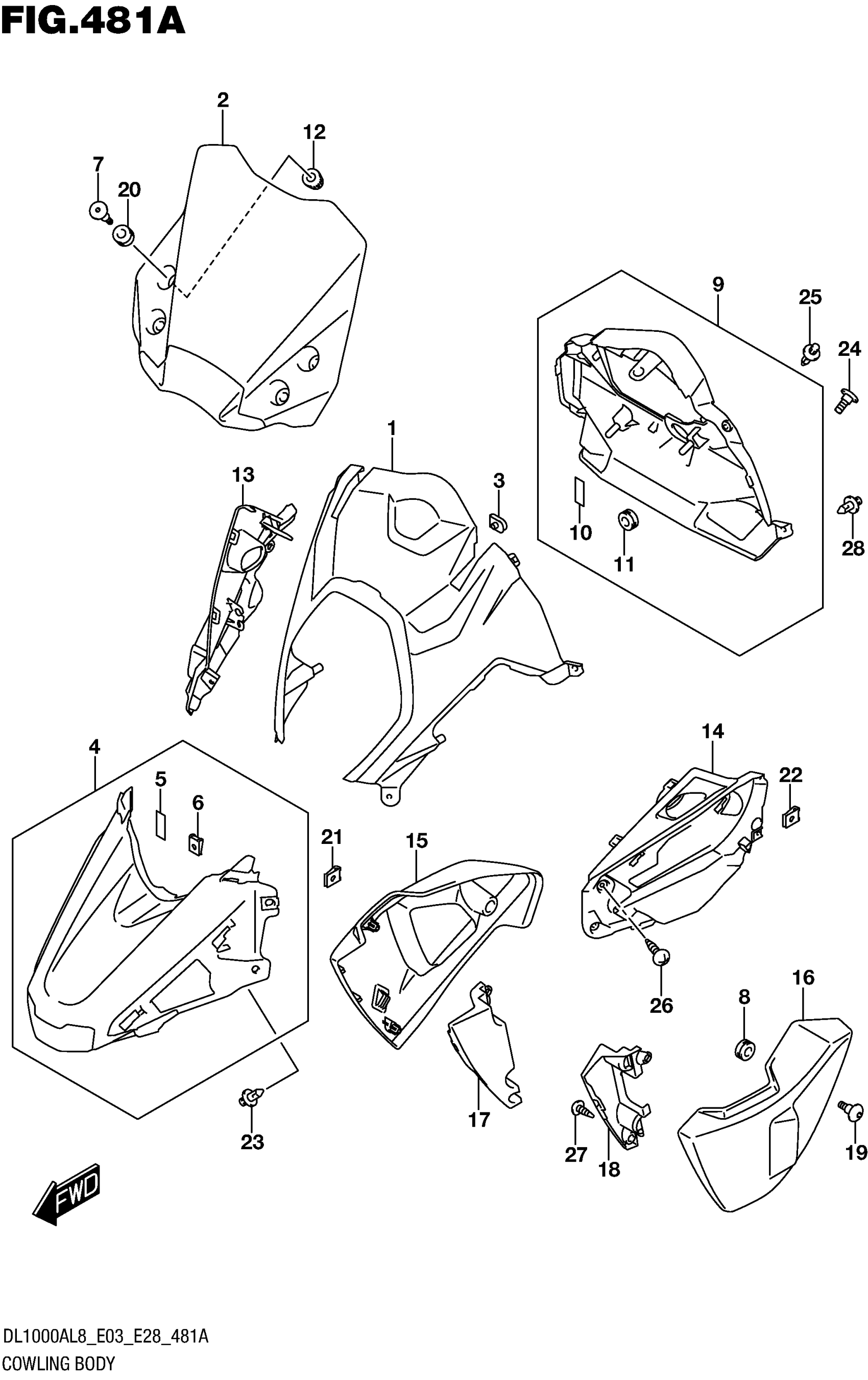

Suzuki DL1000XAL8 (2018) COWLING BODY Diagram

#

Description
Price

1

COWLING, BODY (BLACK)

94411-31J10-YKV

$275.05

2

WINDSCREEN (BLACK)

48410-31JB0

$115.75

3

NUT

09148-06020

$4.38

4

COWLING, BODY LOWER

94402-31J10

$39.55

5

PAD (8X20X2)

73415-70A00

$1.56

6

.NUT

09148-05052

$3.37

7

BOLT, WINDSCREEN

48415-31J00

$5.84

8

CUSHION

09320-09016

$1.97

9

PANEL, METER

94630-31J10

$46.98

10

PAD (8X20X2)

73415-70A00

$1.56

11

.CUSHION

09320-08028

$3.04

12

CAP, WINDSCREEN SCREW

48414-31J00

$2.88

13

COVER, SIDE FR RH

94413-31J10

$29.47

14

COVER, SIDE FR LH

94414-31J10

$29.47

15

COWLING, SIDE LOWER RH

94441-31J00-291

$36.93

15

(BLACK)

94441-31J00-291

$36.93

16

COWLING, SIDE LOWER LH

94451-31J00-291

$36.52

16

(BLACK)

94451-31J00-291

$36.52

17

COVER, SIDE COWL INNER RH

94461-31J00

$10.42

18

COVER, SIDE COWL INNER LH

94462-31J00

$10.18

19

SCREW

47911-31J00

$4.70

20

CUSHION

09320-09016

$1.97

21

NUT

09148-05038

$1.97

22

NUT

09148-05052

$3.37

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

24

SCREW (6X16)

09139-06120

$2.83

25

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

26

SCREW

03541-0512A

$1.49

27

SCREW

03541-0512A

$1.49

28

CLIP

09409-06329

$2.79
