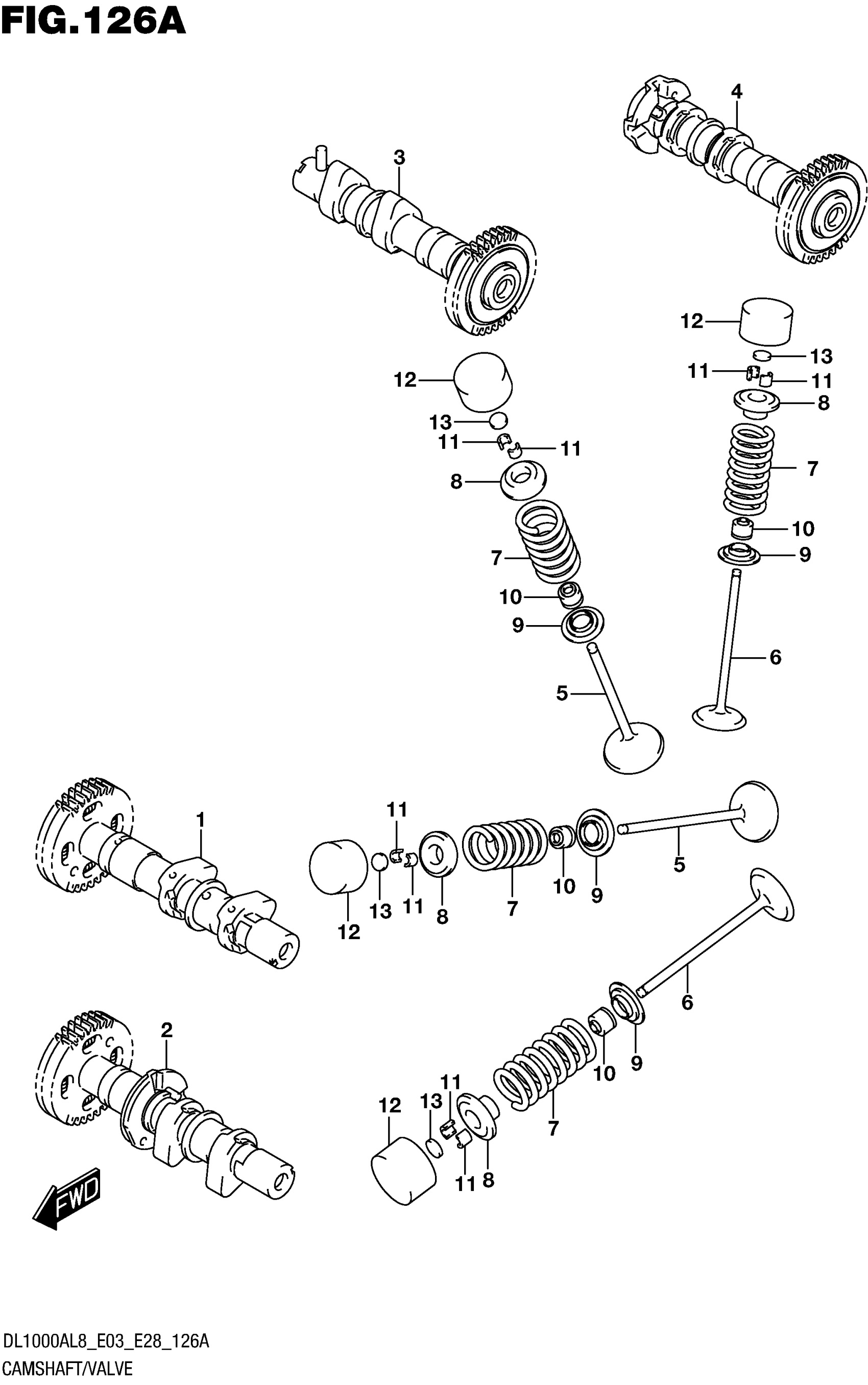

Suzuki DL1000XAL8 (2018) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY, INTAKE FRONT

12701-06G00

Unavailable

2

CAMSHAFT ASSY, EXHAUST FRONT

12702-06G00

Unavailable

3

CAMSHAFT ASSY, INTAKE REAR

12703-06G00

$575.89

4

CAMSHAFT ASSY, EXHAUST REAR

12704-06G00

Unavailable

5

VALVE,INTAKE

12911-16G00

$48.38

6

VALVE, EXHAUST

12912-02F10

Unavailable

7

SPRING VALVE

12921-06G00

$15.80

8

RETAINER,VALVE SPRING

12931-06G00

Unavailable

9

SEAT,VALVE SPRING

12933-06G00

$5.98

10

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70

11

COTTER, VALVE

12932-24400

$1.94

12

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

13-1

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

13-2

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

13-3

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

13-4

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

13-5

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

13-6

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

13-7

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

13-8

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

13-9

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

13-10

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

13-11

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

13-12

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

13-13

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

13-14

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

13-15

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

13-16

SHIM, TAPPET (T:3.05)

12892-41C00-305

$11.83

13-17

SHIM, TAPPET (T:3.10)

12892-41C00-310

$11.38

13-18

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

13-19

SHIM, TAPPET (T:3.20)

12892-41C00-320

$11.60

13-20

SHIM, TAPPET (T:3.25)

12892-41C00-325

$11.83

13-21

SHIM, TAPPET (T:3.30)

12892-41C00-330

$11.83

13-22

SHIM, TAPPET (T:3.35)

12892-41C00-335

$11.83

13-23

SHIM, TAPPET (T:3.40)

12892-41C00-340

$11.83

13-24

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

13-25

SHIM, TAPPET (T:3.50)

12892-41C00-350

$11.83

14

SHIM SET, TAPPET | OPT

12800-41810

$1,138.37

14

T:2.50, 2.55...3.45, 3.50 | NOT ILLUSTRATED

12800-41810

$1,138.37

14

(5PCS.EACH) & CASE

12800-41810

$1,138.37

15

.CASE, TAPPET SHIM | OPT

99000-69471

Unavailable

15

.CASE,TAPPET SHIM | NOT ILLUSTRATED

99000-69471

Unavailable
