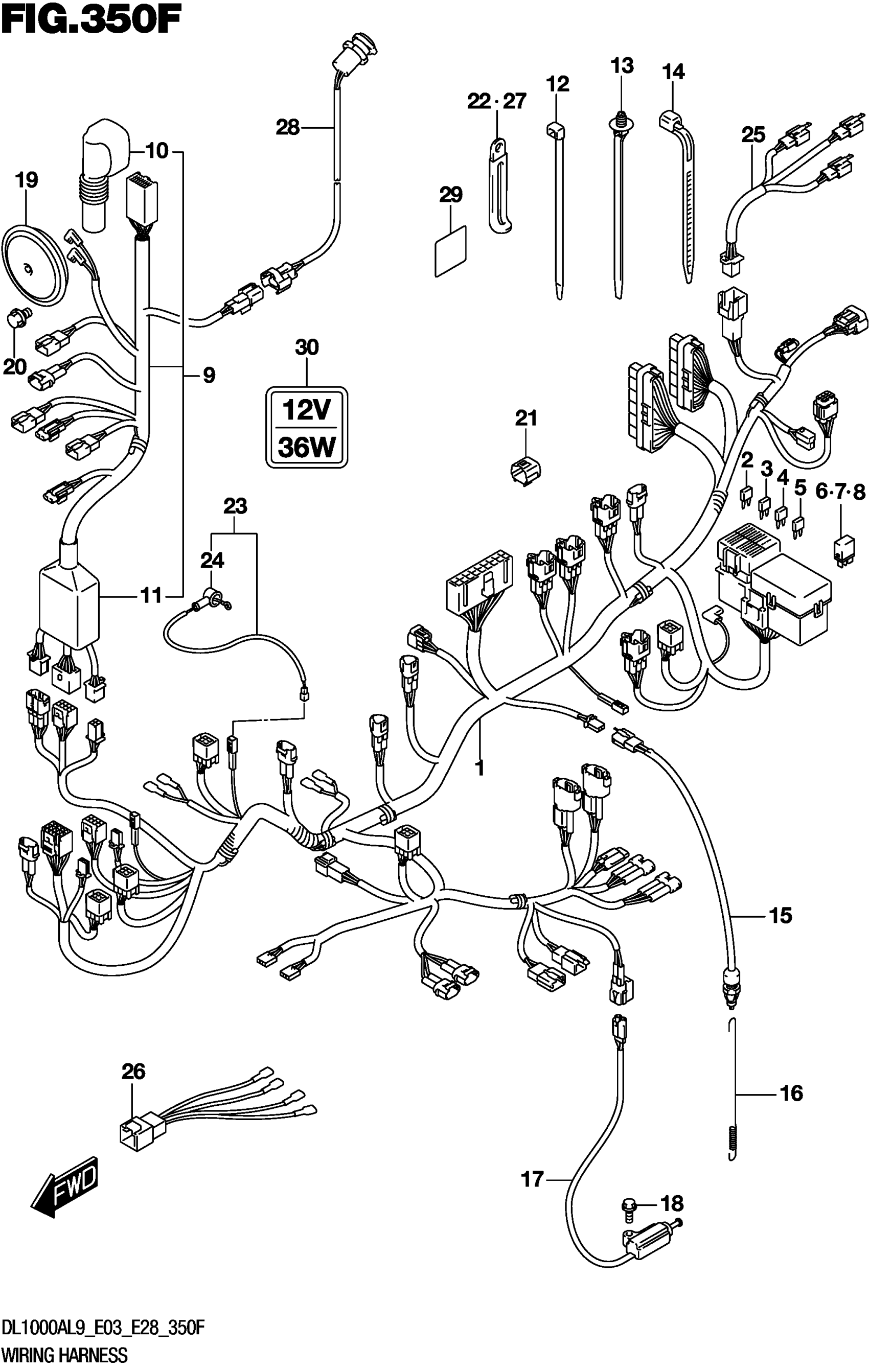

Suzuki DL1000AL9 (2019) WIRING HARNESS (DL1000AL9 E33) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-31JP0

Unavailable

2

.FUSE (3A)

09481-03501

$2.25

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (25A)

09481-25504

$2.75

6

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

$34.37

7

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

$34.37

8

.RELAY ASSY | FOR SIDE STAND

38860-76F01

$34.37

9

HARNESS, WIRING NO.2

36620-31J10

Unavailable

10

.COVER,CONNECTOR

36618-41G00

Unavailable

11

.COVER, SPEEDOMETER

36618-18G10

Unavailable

12

CLAMP (L:145)

09407-14407

$3.57

13

CLAMP (L:170)

09407-17403

$4.91

14

CLAMP (L:125)

09407-14403

$2.26

15

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

16

SPRING,STOP LAMP SWITCH

43259-31J00

$6.82

17

SWITCH ASSY,SIDE STAND This part replaces 37840-24F00.

37840-24F02

$58.63

18

BOLT (8X35)

09103-08357

$4.17

19

HORN ASSY

38500-41F50

$79.70

20

BOLT

01550-0612A

$1.97

21

CAP

36654-06J20

Unavailable

22

CLAMP (L:45)

09404-06429

$1.83

23

WIRE, OIL PRESSURE SWITCH LEA

36851-31J10

Unavailable

24

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

25

WIRE, REAR TURNSIGNAL LEAD

36856-31J10

Unavailable

26

WIRE, IGNITION COIL LEAD

36854-31J20

$33.18

27

CLAMP (L:45)

09404-06429

$1.83

28

TERMINAL,POWER SOURCE

38850-31J00

$73.47

29

SEAL, PROTECTOR

48599-57L00

Unavailable

30

LABEL, MAX AMP

38852-28K00

$3.73
