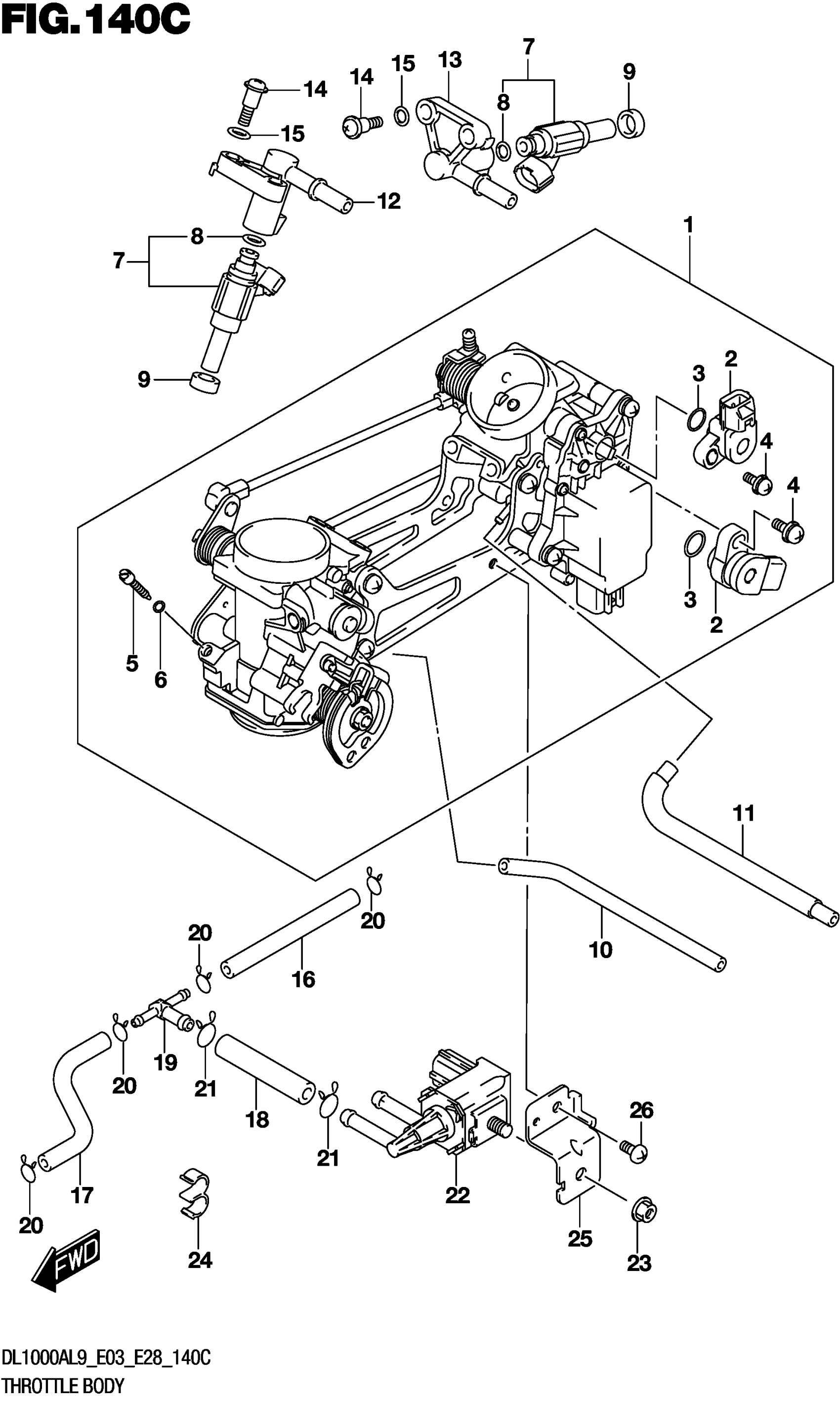

Suzuki DL1000AL9 (2019) THROTTLE BODY (DL1000XAL9 E33) Diagram

#

Description
Price

1

THROTTLE BODY

13405-31J10

Unavailable

2

.SENSOR

13580-27G21

$145.53

3

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

4

.SCREW

13605-02F00

$3.71

5

.ADJUSTER

13662-22J00

$16.97

6

.O RING

13453-36F00

$5.58

7

.INJECTOR ASSY

15710-31J00

Unavailable

8

.O-RING

15717-58B00

$9.95

9

SEAL

15722-14J00

$11.36

10

HOSE This part replaces 13683-48G10.

13683-48G11

$41.20

11

HOSE

13683-31J20

Unavailable

12

DELIVERY PIPE

15731-11J00

Unavailable

13

DELIVERY PIPE

15732-11J00

Unavailable

14

SCREW

13601-11J00

$4.79

15

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

16

HOSE

13681-06G40

Unavailable

17

HOSE

13683-31J00

Unavailable

18

HOSE

13683-31J10

Unavailable

19

NIPPLE

13685-04F10

$11.07

20

CLIP (ID:6.5)

09401-06101

$2.03

21

CLIP This part replaces 09401-10410.

09401-10401

$1.49

22

VALVE,CANISTER PURGE

18117-52G10

$151.17

23

NUT (6X12)

08316-1006A

$2.19

24

CLIP

09408-00200

$2.67

25

BRACKET

13627-31J00

$38.05

26

SCREW

13602-06128

$2.96
