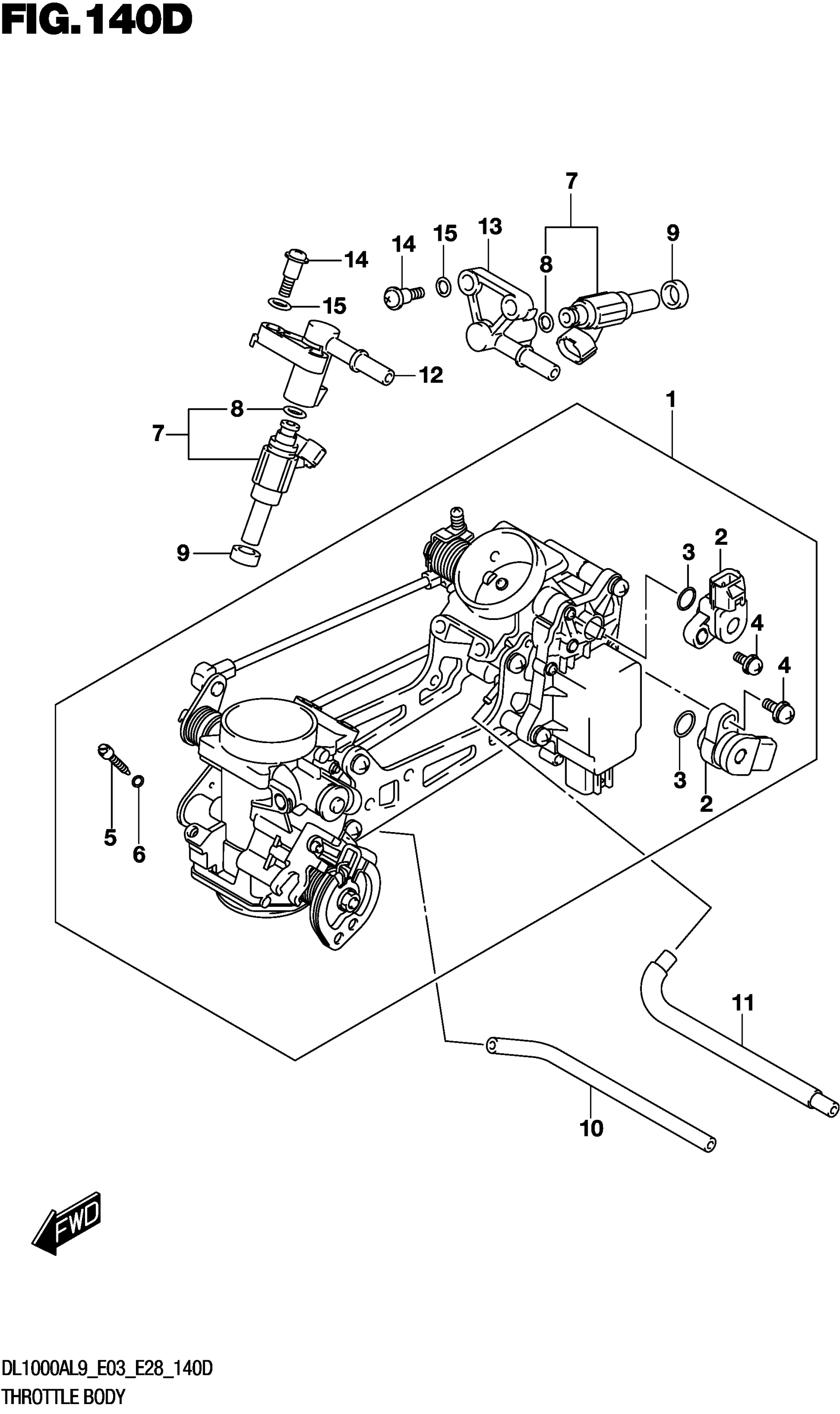

Suzuki DL1000AL9 (2019) THROTTLE BODY (DL1000AL9 E03) Diagram

#

Description
Price

1

THROTTLE BODY This part replaces 13405-31J00.

13405-31J01

$973.25

2

.SENSOR

13580-27G21

$163.47

3

.O-RING This part replaces 13575-29G00.

13575-29G01

$2.97

4

.SCREW

13605-02F00

$3.50

5

.ADJUSTER

13662-22J00

$19.15

6

.O RING

13453-36F00

$6.12

7

.INJECTOR ASSY

15710-31J00

Unavailable

8

.O-RING

15717-58B00

$9.11

9

SEAL

15722-14J00

$10.70

10

HOSE This part replaces 13683-48G10.

13683-48G11

$46.50

11

HOSE

13683-31J20

Unavailable

12

DELIVERY PIPE

15731-11J00

Unavailable

13

DELIVERY PIPE

15732-11J00

Unavailable

14

SCREW

13601-11J00

$4.51

15

PACKING This part replaces 13602-29G00.

13602-29G01

$2.52
