Partiron

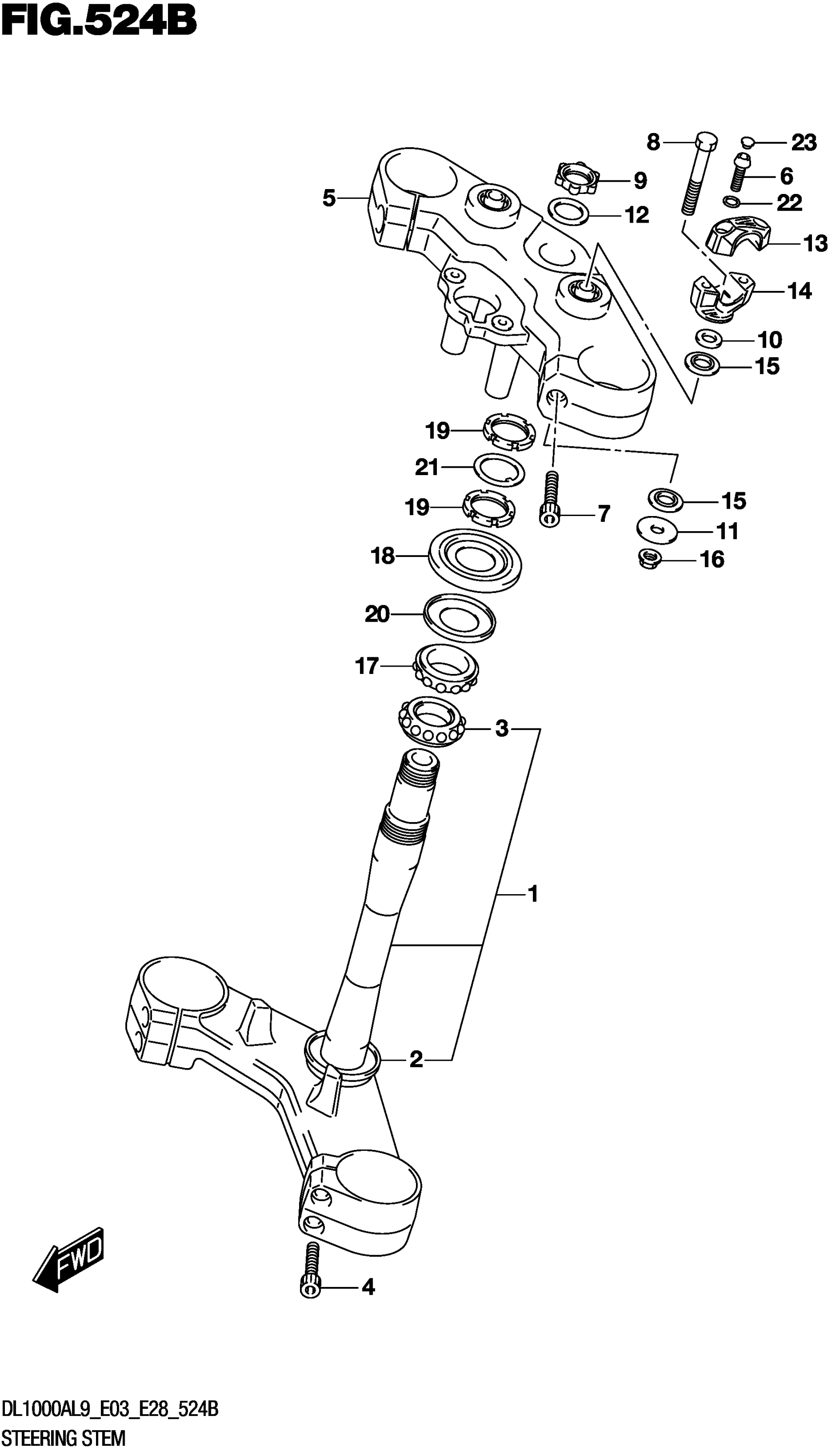

Suzuki DL1000AL9 (2019) STEERING STEM (DL1000XAL9 E28) Diagram

#

Description
Price

1

BRACKET,UNDER

51410-31J00

$586.82

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

3

.BEARING (30X55X17)

09267-30010

$48.11

4

BOLT (8X40)

51328-44G10

$5.58

5

BRACKET, UPPER (BLACK)

51311-31J00-YTA

$240.78

6

BOLT, BRACKET UPR

51328-46H00

$3.66

7

BOLT (8X40)

51328-44G10

$5.58

8

BOLT

51321-17H10

$6.22

9

NUT

51353-24F00

$43.68

10

WASHER

51354-17H00

$3.70

11

WASHER

51355-16G00

$5.77

12

WASHER

51356-24F50

$6.52

13

HOLDER, HANDLE (BLACK)

56211-13K00-YTA

$44.48

14

HOLDER, HANDLE (BLACK)

56221-13K00-YTA

$77.07

15

RUBBER,HANDLE HOLDER

56245-31J00

$2.85

16

NUT

08319-3110A

$2.73

17

.BEARING (30X55X17)

09267-30010

$48.11

18

COVER,STEERING UPR

51643-41G00

$8.71

19

NUT,STEERING STEM

51631-33E00

$23.64

20

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

21

WASHER,STEERING STEM

51641-33E00

$6.20

22

WASHER

09164-08015

$3.21

23

CAP (OD:10.5)

09250-06015

$2.76
