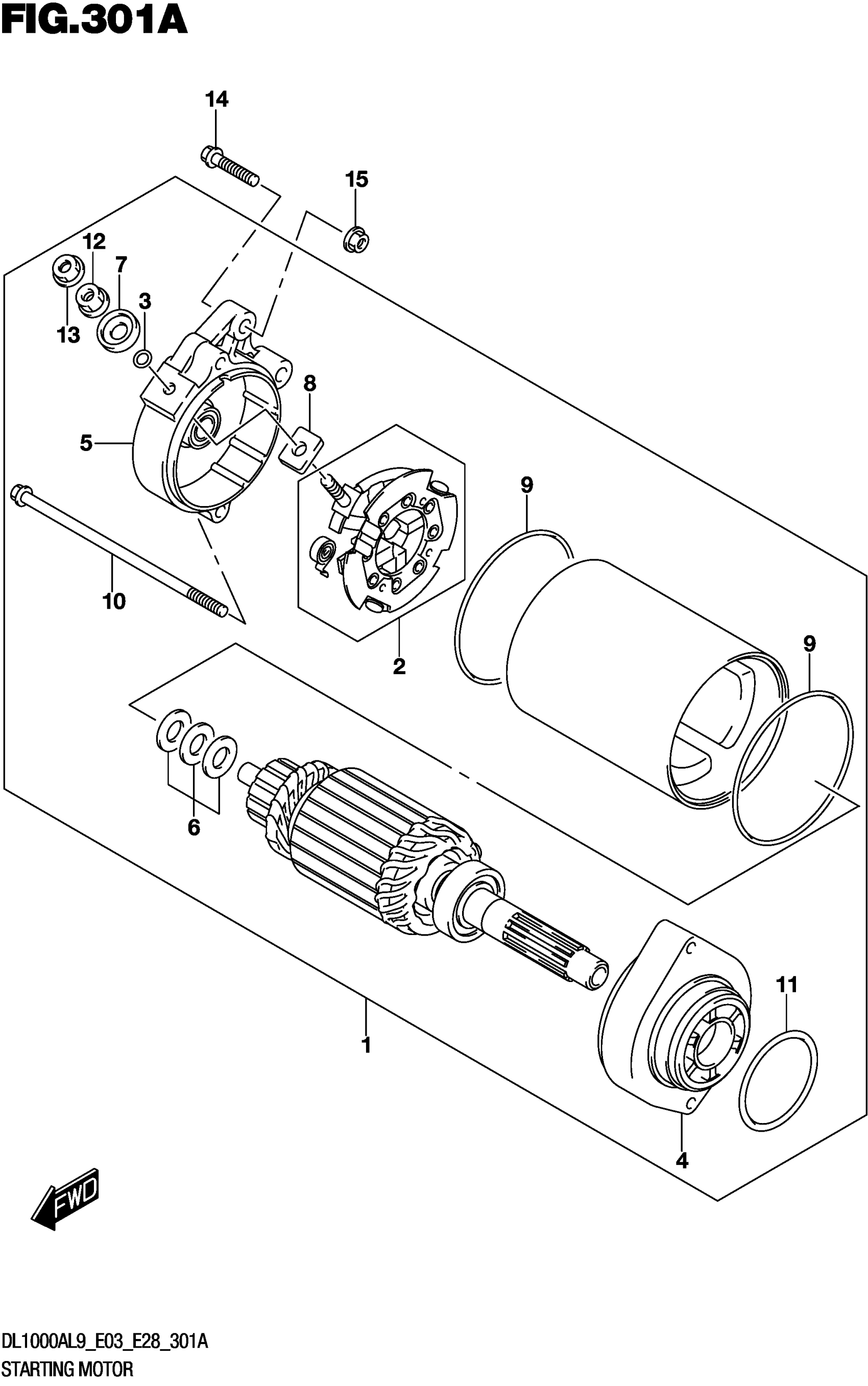

Suzuki DL1000AL9 (2019) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING

31100-06G01

$701.10

2

.HOLDER SET,BRUSH

31132-45C00

$71.38

3

.O-RING

31143-38300

$5.10

4

.HOUSING ASSY

31150-44B10

Unavailable

5

.FRAME ASSY

31170-02F10

Unavailable

6

.SHIM SET

31170-43400

Unavailable

7

.BUSHING

31172-38300

$6.55

8

.BUSHING

31173-88C00

Unavailable

9

.O-RING

31264-44110

$11.87

10

BOLT This part replaces 31281-24B10.

31281-31D00

$8.65

11

.O RING (D:2.1,ID;34.7)

31156-48B00

$12.02

12

.NUT

08310-00067

$2.13

13

NUT

08361-3506A

$1.80

14

BOLT

01547-0625A

$2.01

15

NUT

08361-3506A

$1.80
