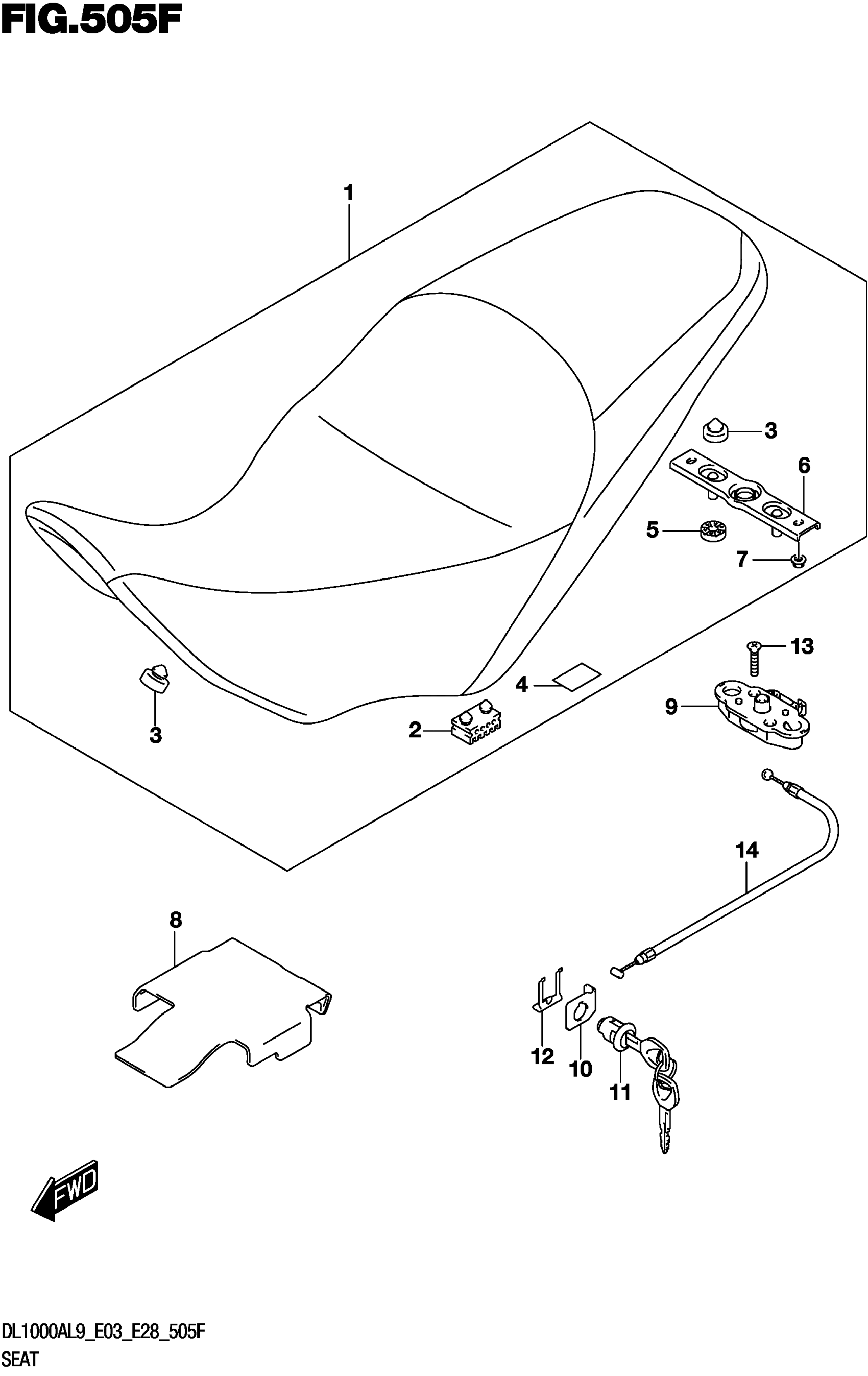

Suzuki DL1000AL9 (2019) SEAT (DL1000AL9 E33) Diagram

#

Description

Price

1

SEAT ASSY This part replaces 45100-31J11-BGQ.

45100-31J12-BGQ

$529.70

2

.CUSHION,SEAT (40X20X15)

45149-31300

$3.56

3

CUSHION

09321-10012

$2.92

4

PROTECTOR,COWL UNDER (30X20X0

94474-17H00

$4.58

5

..CUSHION,SEAT LOCK (10X22X6)

45213-13601

$2.79

6

.STRIKER, SEAT LOCK

45215-26F00

Unavailable

7

NUT (6X12)

08316-1006A

$2.19

8

SHEET, HEAT SHIELD RUBBER

45256-31J00

Unavailable

9

BRACKET,SEAT SUPPORT

45220-47H00

$138.38

10

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

11

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$107.30

12

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

13

SCREW

02122-0630A

$1.74

14

CABLE, SEAT LOCK

45280-18G01

$20.47
