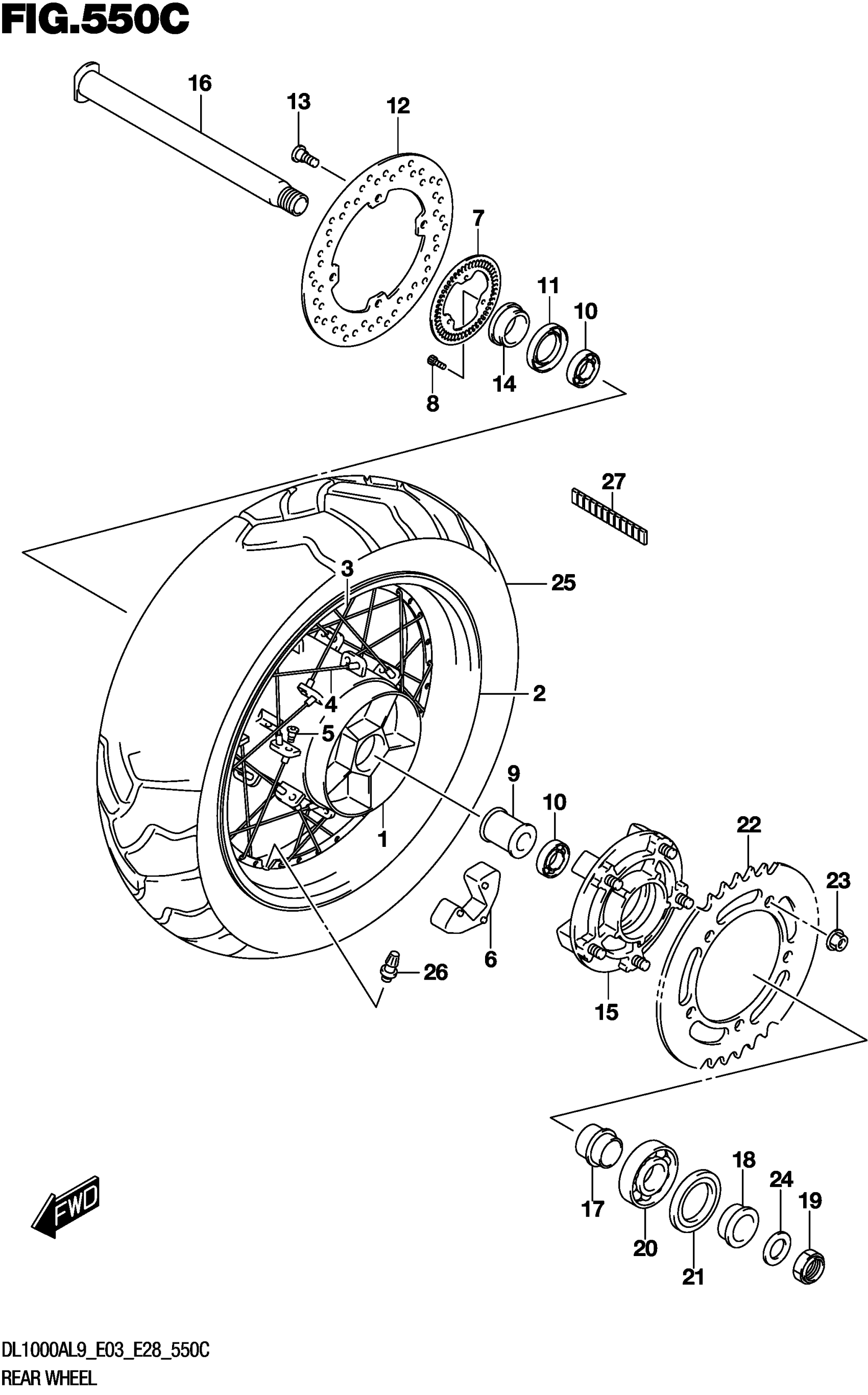

Suzuki DL1000AL9 (2019) REAR WHEEL (DL1000XAL9 E33) Diagram

#

Description
Price

1

HUB,REAR

64111-31J10

$657.03

2-1

RIM,RR WHEEL (17M/CXMT4.00)

65311-31J10

$519.52

2-1

RIM,RR WHEEL (17M/CXMT4.00)

65311-31J10

$519.52

2-2

RIM,RR WHEEL (17M/CXMT4.00)

65311-31J20

$897.98

2-2

RIM,RR WHEEL (17M/CXMT4.00)

65311-31J20

$897.98

3

SPOKE, REAR WHEEL INNER

65321-31J00

$6.55

4

SPOKE, REAR WHEEL OUTER

65322-31J00

$6.89

5

NIPPLE, WHEEL

55326-11J00

$5.15

6

ABSORBER,RR HUB SHOCK

64651-35F30

$44.48

7

RING,SPEED SENSOR RR (50T)

64162-17G00

$20.52

8

BOLT

07130-0512A

$2.19

9

SPACER,REAR HUB BEARING (20.8

64731-49G00

$58.65

10

BEARING (28X52X12) This part replaces 09262-28052.

09262-28062

$26.38

11

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

12

DISC,REAR BRAKE

69211-06G00

$310.22

13

BOLT (8X21)

09106-08160

$3.57

14

SPACER,REAR AXLE,R

64741-35F10

$13.49

15

DRUM, RR SPROCKET

64610-35F40

$311.15

16

AXLE,RR

64711-31J00

$85.15

17

RETAINER,RR SPROCKET DRUM

64733-35F00

$26.61

18

SPACER,REAR AXLE,L

64751-47H10

$18.73

19

NUT,REAR AXLE

64721-17K00

$15.94

20

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$39.40

21

SEAL,OIL (39X65X7)

09285-39001

$10.62

22

SPROCKET,REAR (NT:41)

64511-35F20

$89.23

23

NUT

08319-3110A

$2.73

24

WASHER (25.2X42X3.2)

09160-25070

$4.77

25

TIRE, REAR (150/70R17M/C 69V) | BW-502 RADIAL J

65110-31J00

$340.47

25

TIRE, REAR (150/70R17M/C 69V) | BRIDGESTONE

65110-31J00

$340.47

26

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

27

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$5.38
