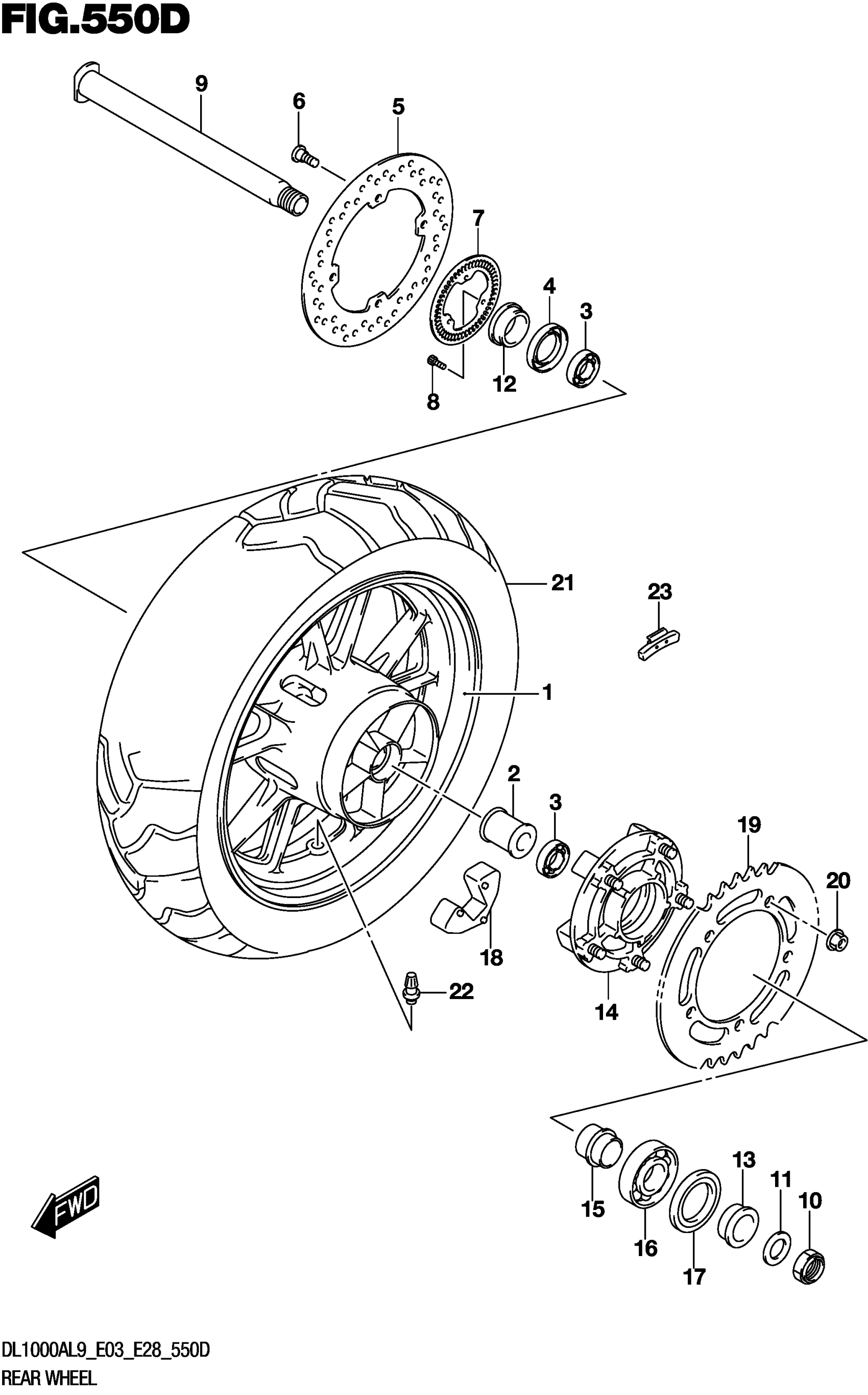

Suzuki DL1000AL9 (2019) REAR WHEEL (DL1000AL9 E03) Diagram

#

Description
Price

1

WHEEL,RR (17M/CXMT4.00,BLACK)

64111-31J00-019

$1,183.48

1

WHEEL,RR (17M/CXMT4.00,BLACK)

64111-31J00-019

$1,183.48

2

SPACER,REAR HUB BEARING (20.8

64731-49G00

$66.18

3

BEARING (28X52X12) This part replaces 09262-28052.

09262-28062

$23.81

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.19

5

DISC,REAR BRAKE

69211-06G00

$345.22

6

BOLT (8X21)

09106-08160

$3.22

7

RING,SPEED SENSOR RR (50T)

64162-17G00

$23.17

8

BOLT

07130-0512A

$2.19

9

AXLE,RR

64711-31J00

$95.63

10

NUT,REAR AXLE

64721-17K00

$15.01

11

WASHER (25.2X42X3.2)

09160-25070

$4.30

12

SPACER,REAR AXLE,R

64741-35F10

$12.34

13

SPACER,REAR AXLE,L

64751-47H10

$21.15

14

DRUM, RR SPROCKET

64610-35F40

$346.25

15

RETAINER,RR SPROCKET DRUM

64733-35F00

$24.36

16

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$35.55

17

SEAL,OIL (39X65X7)

09285-39001

$9.58

18

ABSORBER,RR HUB SHOCK

64651-35F30

$50.20

19

SPROCKET,REAR (NT:41)

64511-35F20

$100.70

20

NUT

08319-3110A

$2.73

21

TIRE, REAR (150/70R17M/C 69V) | BW-502 RADIAL J

65110-31J00

$375.23

21

TIRE, REAR (150/70R17M/C 69V) | BRIDGESTONE

65110-31J00

$375.23

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

23-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$9.70

23-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$11.37

23-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$12.93
