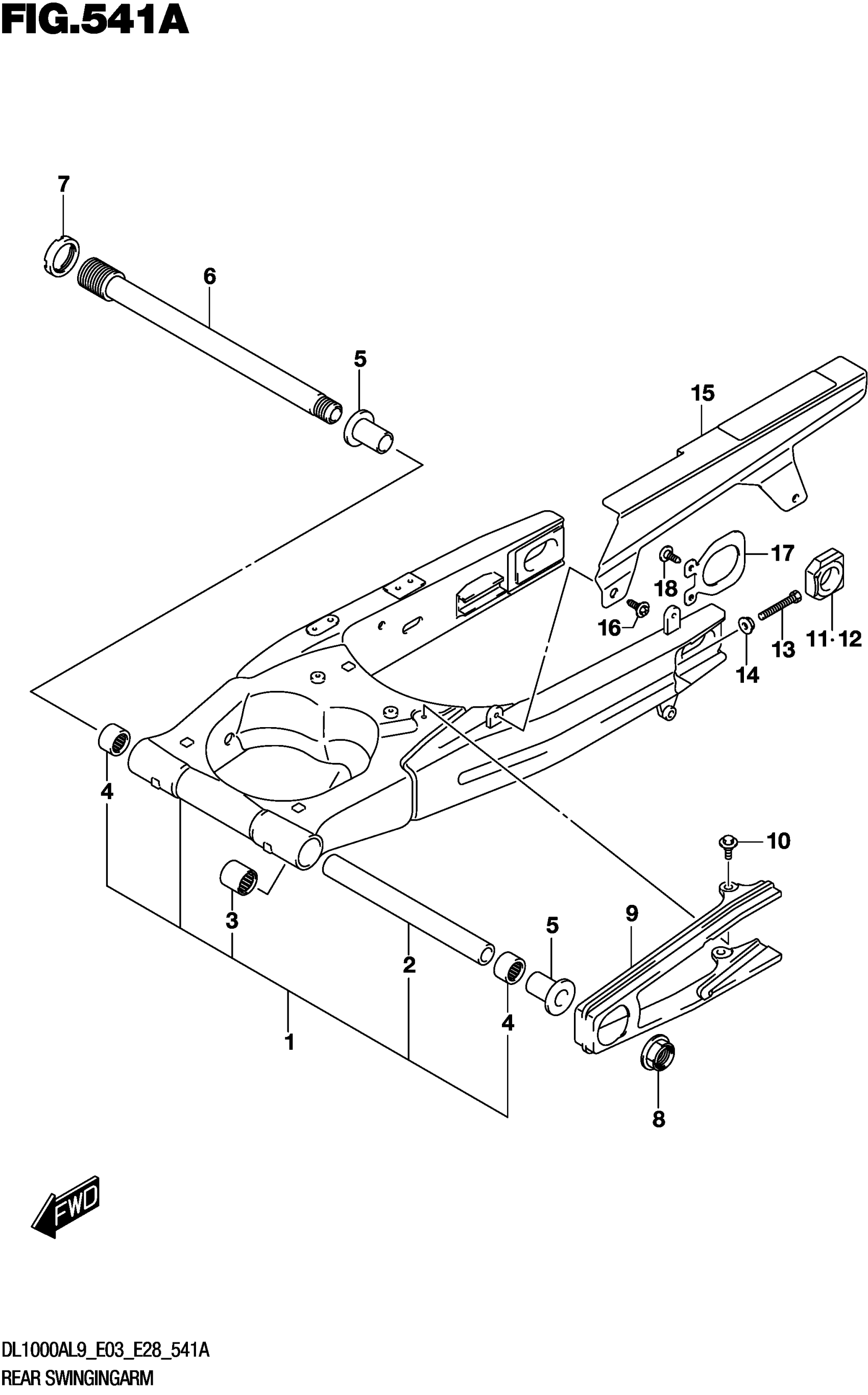

Suzuki DL1000AL9 (2019) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR

61000-31J10-YAP

$1,665.87

1

SWINGING ARM ASSY, REAR

61000-31J10-YAP

$1,665.87

2

.SPACER,RR SWGARM PIVOT CTR (

61281-31J00

Unavailable

3

.BEARING (20X27X30)

09263-20070

$37.72

4

.BEARING (27X35X35) This part replaces 09263-27013.

09263-27015

$27.55

5

SPACER,RR SWGARM PIVOT BEARIN

61251-41G00

$38.37

6

SHAFT,RR SWGARM PIVOT

61211-31J00

Unavailable

7

NUT,RR SWGARM PIVOT BOLT

61214-42E10

$42.53

8

NUT

09159-20006

$27.12

9

BUFFER,CHAIN TOUCH DEFENSE This part replaces 61273-31J00.

61273-31J01

$34.88

10

BOLT (6X17.8)

09111-06072

$2.03

11

ADJUSTER,CHAIN

61446-40F00

$47.20

12

ADJUSTER,CHAIN

61445-40F00

$47.20

13

BOLT (8X50)

09100-08287

$3.10

14

NUT

08316-1008A

$2.45

15

CASE,CHAIN

61310-16G00

$98.40

16

BOLT (6X12)

09111-06107

$2.60

17

PLATE,RR SWING ARM BRKT

61124-33E00

$6.85

18

SCREW (6X12)

09125-06060

$1.78
