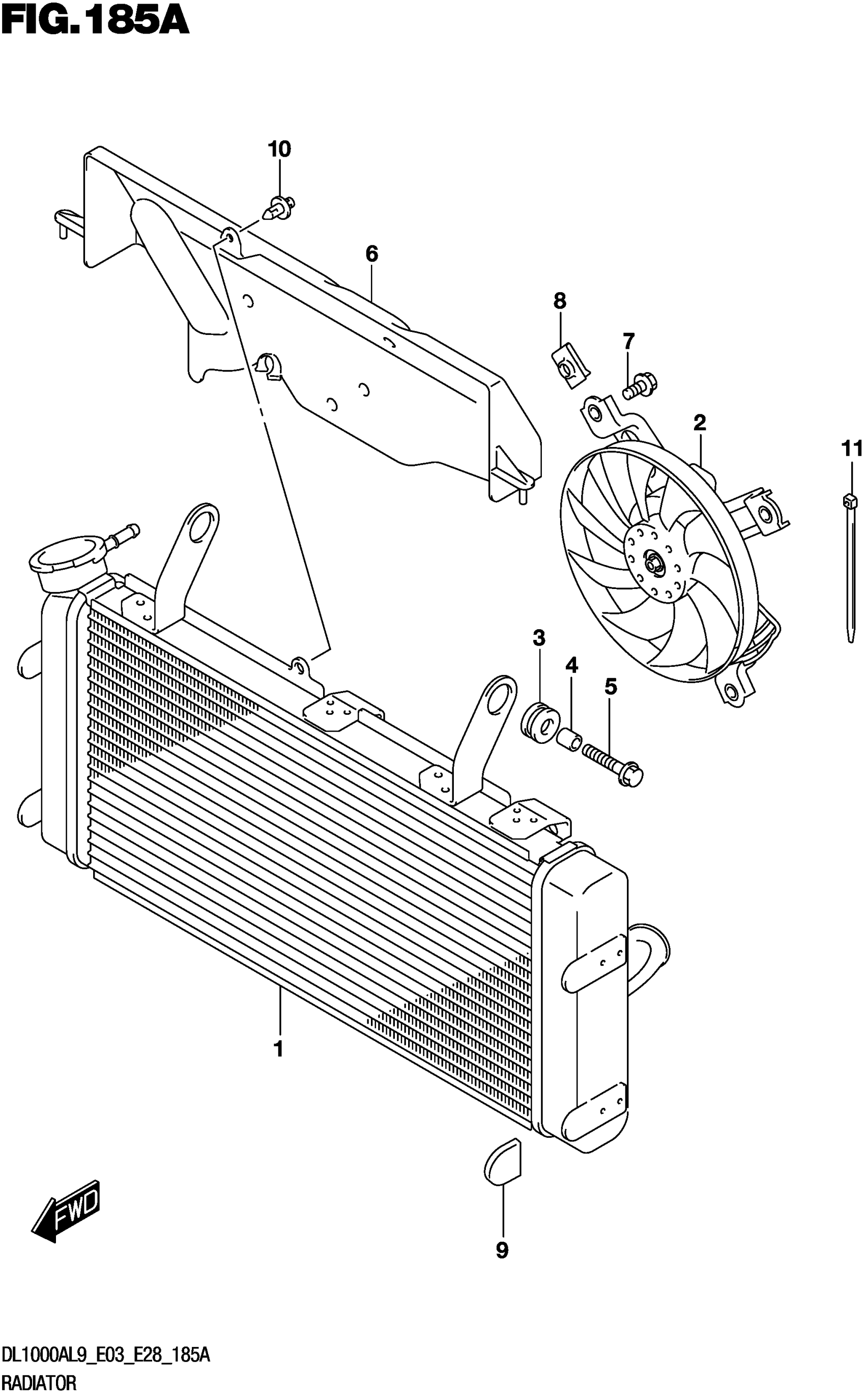

Suzuki DL1000AL9 (2019) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-31J00

$1,011.23

2

FAN ASSY

17800-31J00

$674.15

3

CUSHION

09320-10051

$2.99

4

SPACER (6.5X10X12)

09180-06290

$2.35

5

BOLT (6X25)

09118-06097

$2.50

6

SHIELD, RADIATOR HEAT

17771-31J00

Unavailable

7

BOLT

01550-0616A

$1.97

8

NUT,RADIATOR FAN

17802-14F00

$3.38

9

CUSHION

09329-18001

$1.91

10

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

11

CLAMP (L:100)

09407-10404

$2.90
