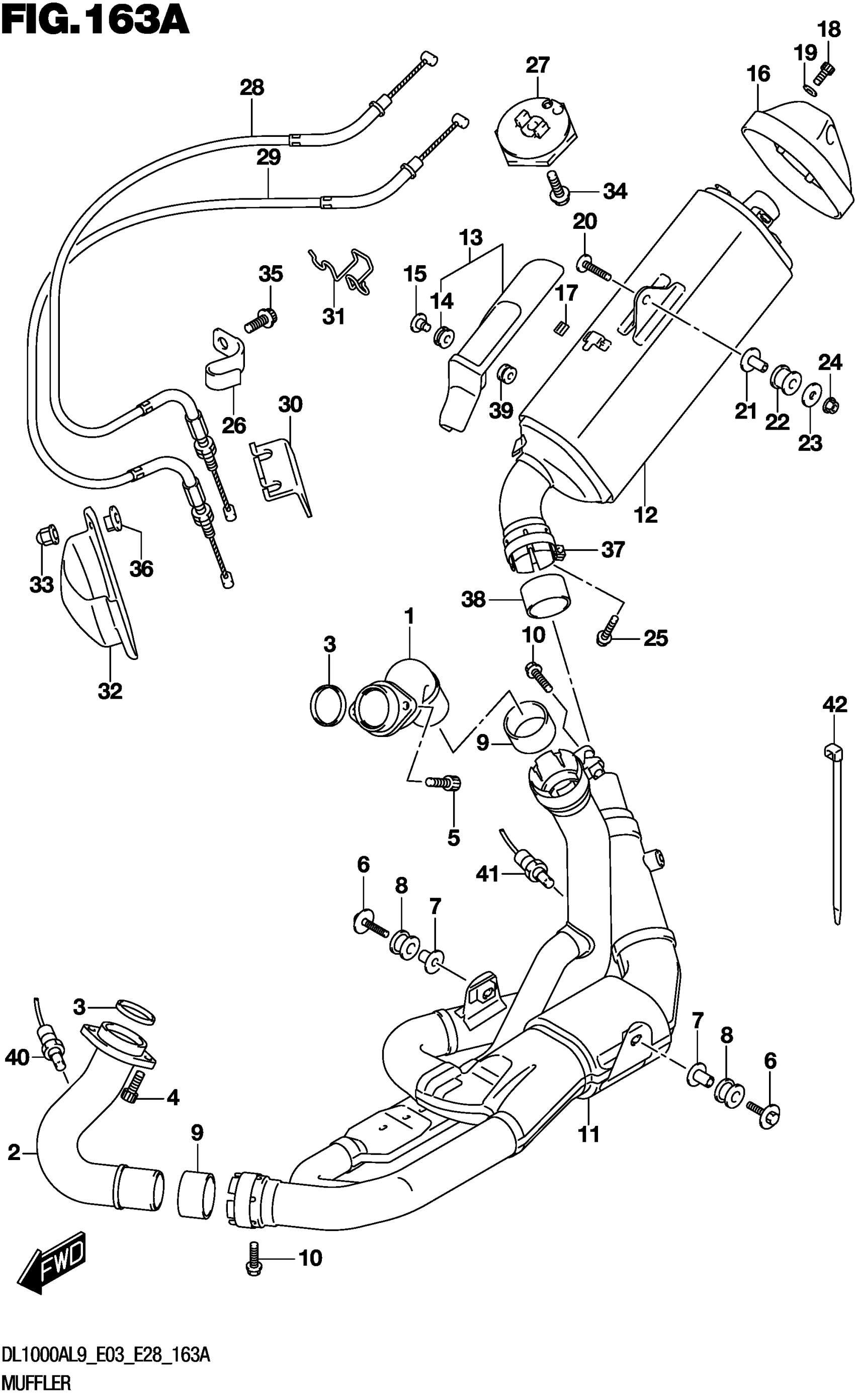

Suzuki DL1000AL9 (2019) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14150-31J00

Unavailable

2

PIPE, EXHAUST LH

14160-31J00

Unavailable

3

.GASKET,EXH PIPE

14181-31D00

$10.28

4

BOLT (8X25)

09106-08178

$3.24

5

BOLT

07130-0825A

$3.04

6

BOLT (8X45)

09118-08152-A05

$5.24

7

SPACER (8.6X12X24.2)

09180-08152

$5.83

8

CUSHION (12X30X24)

09320-12077

$11.78

9

CONNECTOR,JT

14771-42F40

$25.95

10

BOLT (8X35)

09106-08197

$4.18

11

PIPE, EXHAUST CENTER

14205-31J02

Unavailable

12

BODY, MUFFLER

14310-31J30-H01

$729.03

13

COVER, MUFFLER FR

14780-31J00

$252.98

14

CUSHION (8.4X18X6)

09320-08066

$8.24

15

SCREW (6X12)

09139-06128

$5.67

16

COVER, MUFFLER RR

14791-31J10

Unavailable

17

GROMMET

14795-10FA0

$5.58

18

BOLT (6X15)

09106-06078

$3.37

19

WASHER (7X12X1.0)

09160-06055

$1.62

20

BOLT (8X45)

09106-08164

$6.38

21

SPACER (8.6X12X25.5)

09180-08156

$6.70

22

CUSHION

09320-12049

$10.68

23

WASHER (8.5X33X1.5)

09160-08146

$2.60

24

NUT

08316-1008A

$2.45

25

BOLT (8X40)

09106-08162

$4.77

26

BRACKET, EXHAUST VALVE CABLE

09403-11307

Unavailable

27

PULLEY,CONTROLLER

11269-18G01

$28.78

28

CABLE, EXHAUST VALVE NO.1

11276-31J10

$49.02

29

CABLE, EXHAUST VALVE NO.2

11277-31J10

$49.02

30

BRACKET,EXHAUST VALVE CABLE

14250-21H00

$9.90

31

GUIDE,EXHAUST VALVE CABLE

14252-14J00

$7.37

32

COVER, EXHAUST VALVE

14280-08J00

$27.85

33

NUT (M6)

09159-06100

$2.81

34

BOLT

01547-0516A

$1.55

35

BOLT

07120-0612A

$2.50

36

NUT (6X12)

08316-1006A

$2.19

37

CLAMP,MUF CONN

14459-31J10

$29.67

38

CONNECTOR,MUF

14771-18H00

$30.60

39

CUSHION (4X12X8) This part replaces 09320-04009.

09320-04013

$1.85

40

SENSOR, OXYGEN

18213-16H10

$380.50

41

SENSOR, OXYGEN

18213-18H20

$380.50

42

CLAMP (L:145)

09407-14407

$3.57
