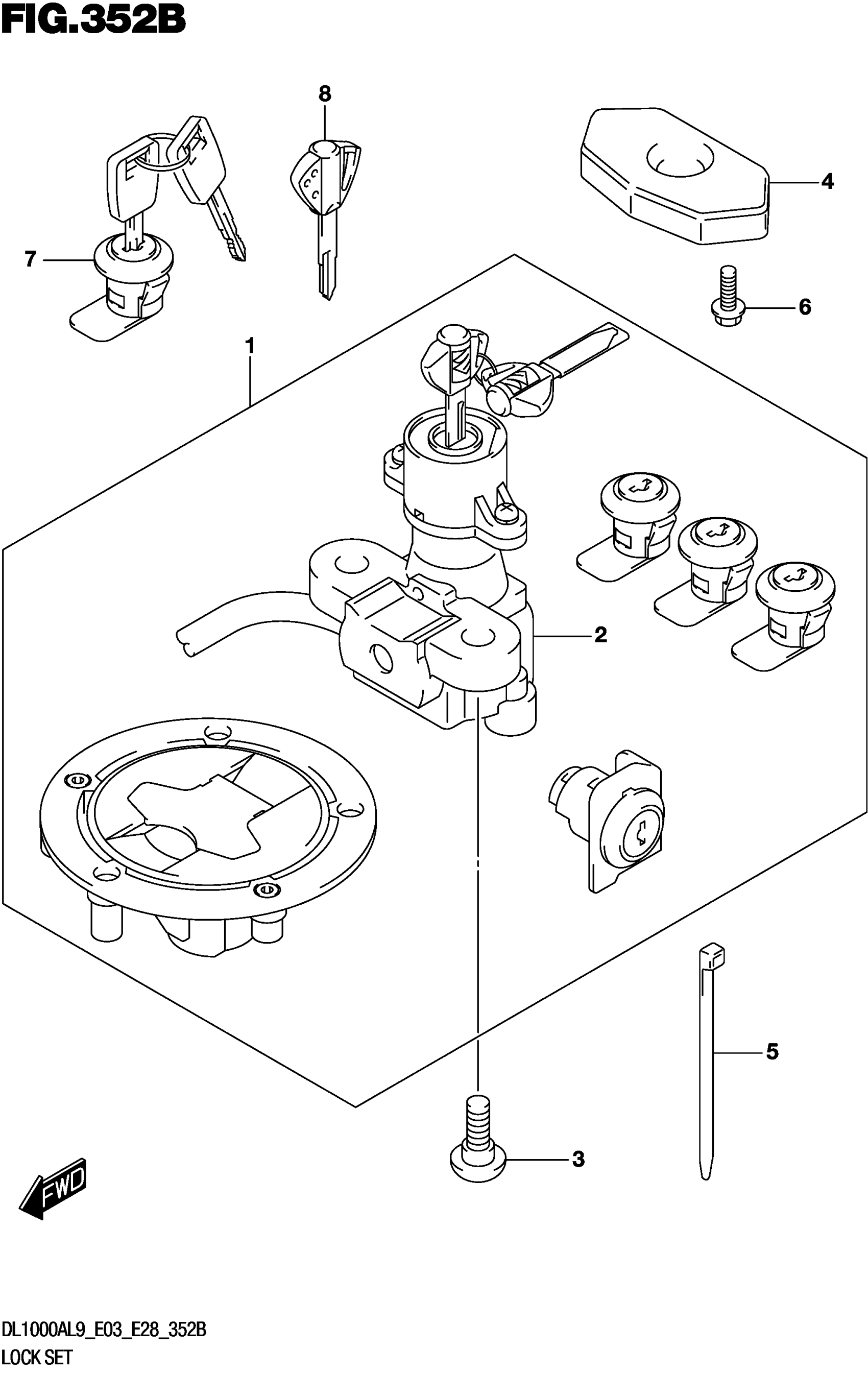

Suzuki DL1000AL9 (2019) LOCK SET (FOR TOP CASE, SIDE CASE) Diagram

#

Description

Price

1

LOCK SET This part replaces 37102-31850.

37102-31852

$294.12

2

.LOCK ASSY, STEERING

37100-31JE0

$199.58

3

BOLT (8X20)

09139-08016

$3.37

4

COVER,STEERING LOCK This part replaces 37180-15H01.

37180-15HA0

$23.74

5

CLAMP (L:145)

09407-14407

$3.57

6

BOLT

01547-0512B

$3.05

7

LOCK SET, CASE

95700-31870

$77.94

8

KEY,BLANK | OPT This part replaces 37146-28K00.

37146-13K00

$51.62
