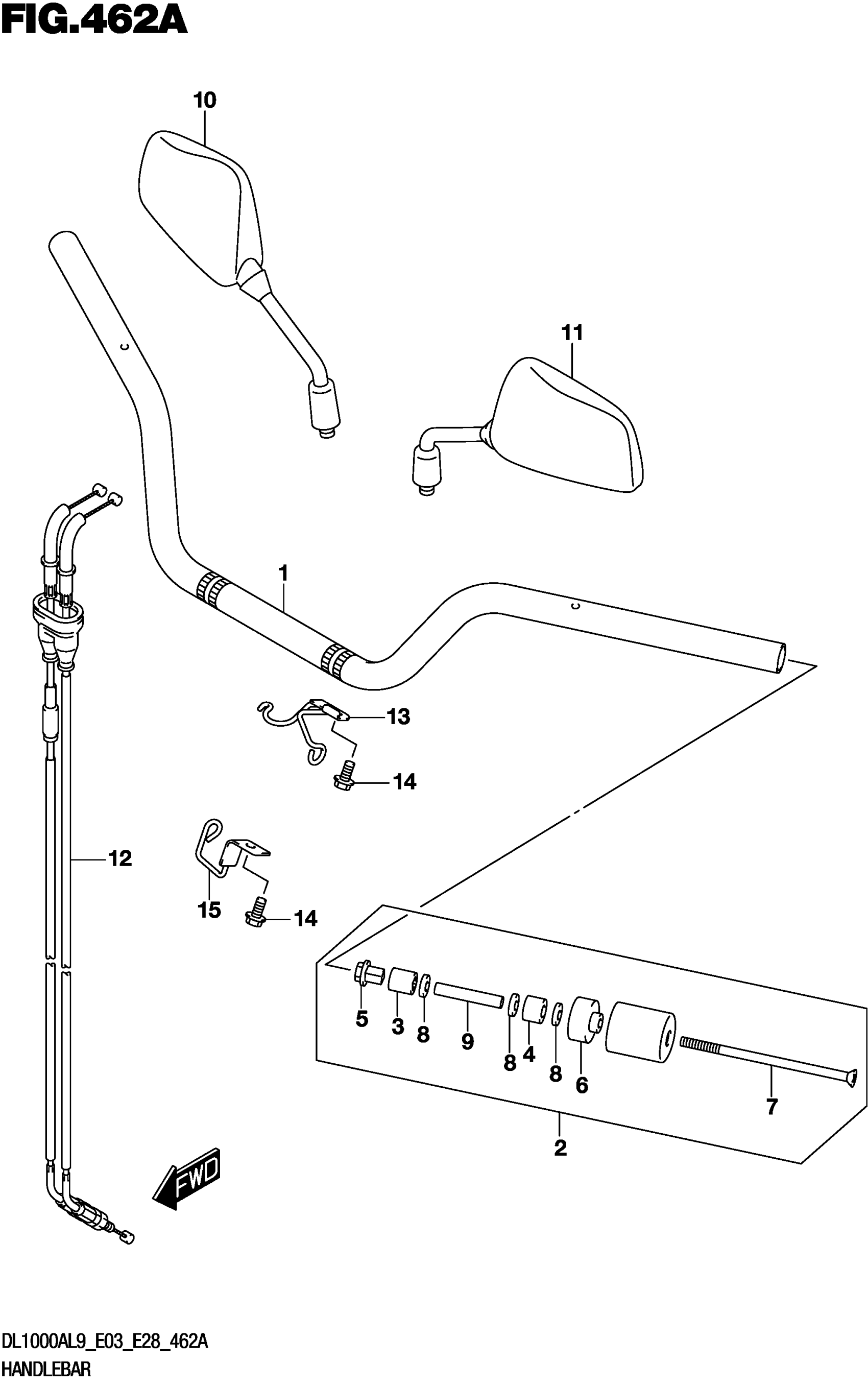

Suzuki DL1000AL9 (2019) HANDLEBAR (DL1000XAL9 E03) Diagram

#

Description

Price

1

HANDLEBAR (SILVER)

56111-31JA0-YUS

$297.73

2

BALANCER,SET HA This part replaces 56200-04830.

56200-04831

$64.37

3

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

4

.EXPANDER,HANDLE BALANCER

56272-42F00

$5.45

5

.NUT,HANDLE BALANCER

56273-10G10

$8.65

6

.SPACER, BALANCER

57346-31J00

Unavailable

7

.SCREW (6X140)

09127-06023

$4.18

8

.WASHER (6.5X16X4)

09160-06131

$2.50

9

SPACER (6.5X9X34)

09180-06356

$4.68

10

MIRROR ASSY, RR VIEW RH

56500-04F30

$124.58

11

MIRROR ASSY, RR VIEW LH

56600-04F30

$123.98

12

CABLE SET,THROT This part replaces 58300-31J00.

58300-31J01

$108.02

13

GUIDE, CABLE

58620-31J00

Unavailable

14

BOLT

01547-0612A

$2.03

15

GUIDE, CABLE

58620-31J10

$11.93
