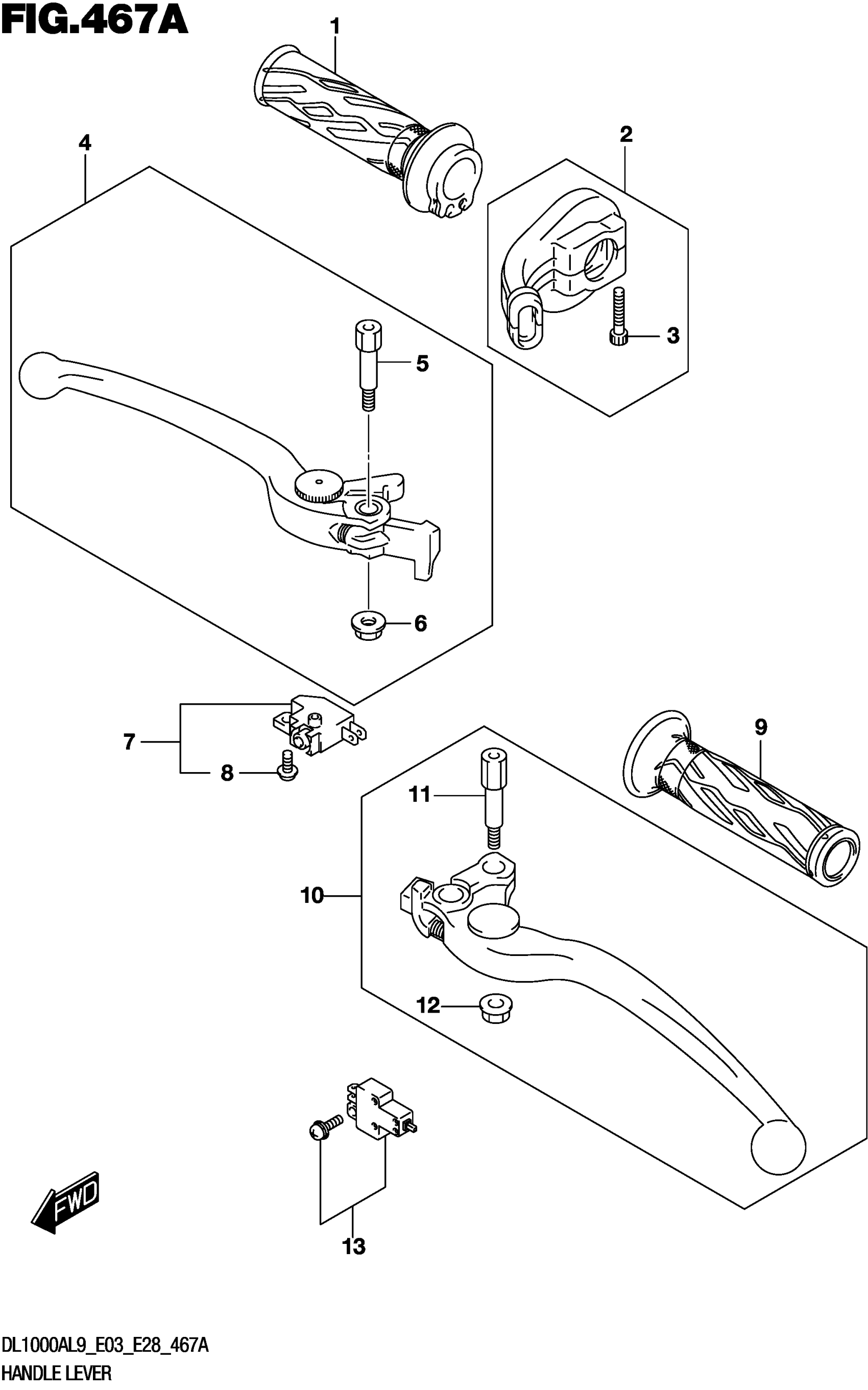

Suzuki DL1000AL9 (2019) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$18.61

2

CASE ASSY,THROT This part replaces 57100-42F00.

57100-42F01

$61.78

3

BOLT, MAGNETO STARTER

07130-0525B

$2.70

4

LEVER ASSY, BRAKE

57300-10G50

$79.53

5

.BOLT, BRAKE LEVER PIVOT

57431-06GA0

$25.72

6

.NUT

08316-1606B

$3.27

7

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$35.21

8

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

9

GRIP,L

57211-21H01

$10.18

10

LEVER ASSY, CLUTCH

57500-06G20

$84.63

11

.BOLT

57431-06GB0

Unavailable

12

.NUT

08316-1606B

$3.27

13

SWITCH ASSY,CLUTCH

57560-02FA0

$21.58
