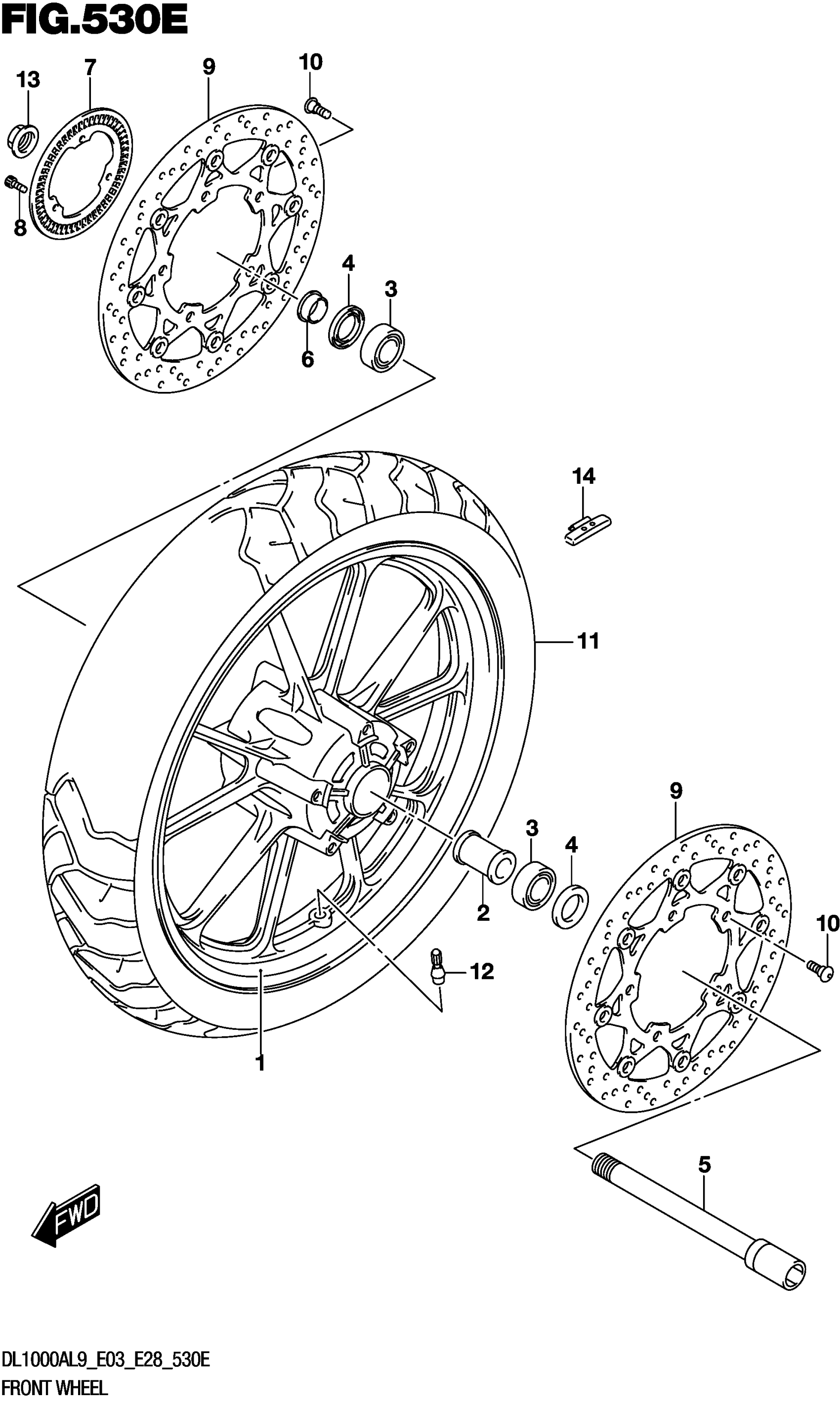

Suzuki DL1000AL9 (2019) FRONT WHEEL (DL1000AL9 E28) Diagram

#

Description
Price

1

WHEEL,FR (BLACK) This part replaces 54111-31J00-019.

54111-31J01-019

$563.17

1

WHEEL,FR (BLACK) This part replaces 54111-31J00-019.

54111-31J01-019

$563.17

2

SPACER,FR HUB BEARING

54731-33E20

$55.32

3

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

$21.91

4

.SEAL,OIL (32X52X7)

09285-32004

$7.20

5

AXLE,FR

54711-31J00

$155.45

6

SPACER,FR AXLE,R

54751-41G10

$17.99

7

RING,SPEED SENSOR FR (50T)

54162-27G00

$158.17

8

BOLT

07130-0512A

$2.19

9

DISC, FRONT BRAKE

59210-31J00

$334.42

10

BOLT (8X21)

09106-08160

$3.22

11

TIRE, FRONT (110/80R19M/C 59V) | BW-501 RADIAL J

55110-31J00

Unavailable

11

TIRE, FRONT (110/80R19M/C 59V) | BRIDGESTONE

55110-31J00

Unavailable

12

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

13

NUT,FR AXLE

54712-47H00

$46.87

14-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$9.70

14-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$11.37

14-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$12.93
