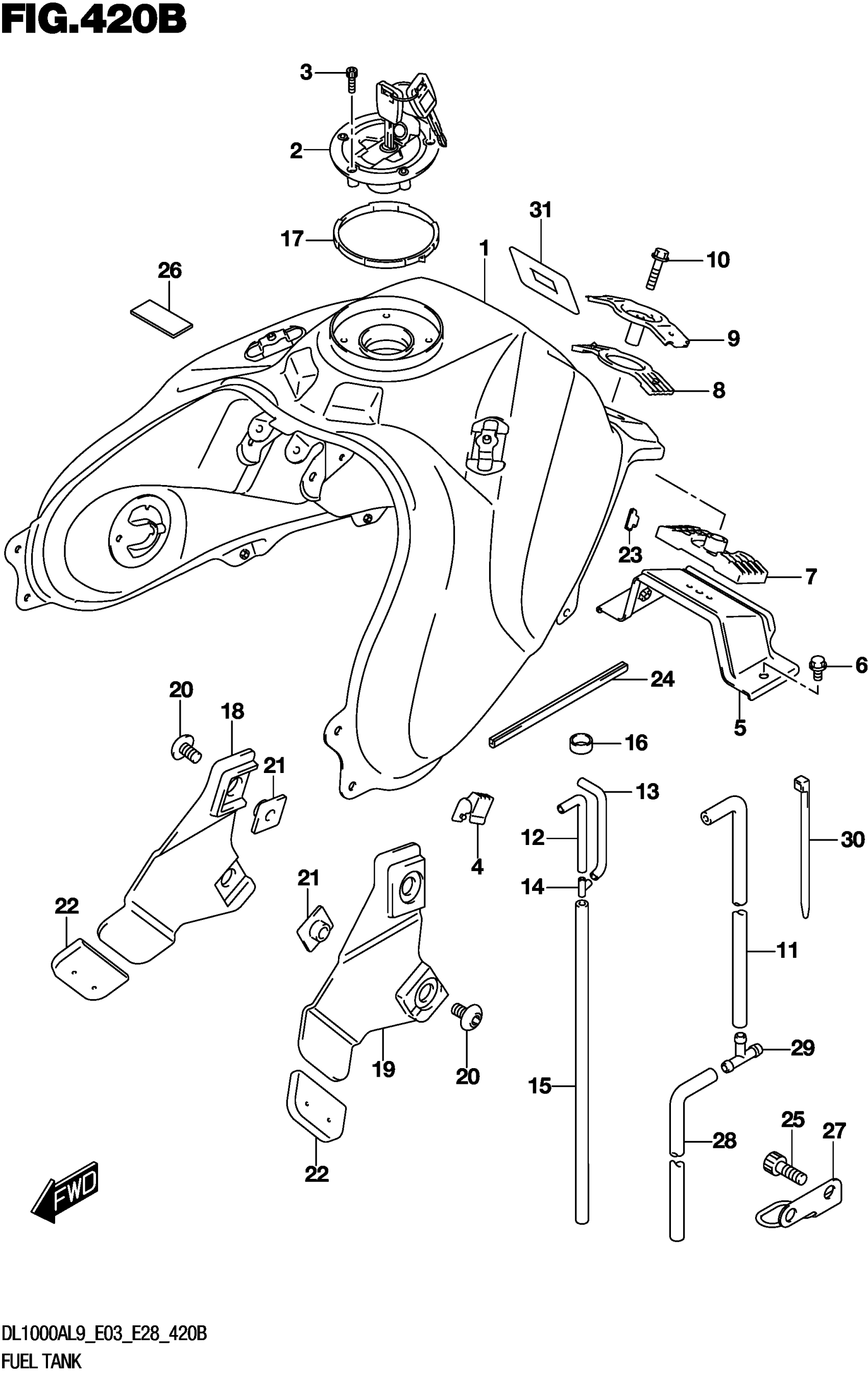

Suzuki DL1000AL9 (2019) FUEL TANK (DL1000XAL9 E28) Diagram

#

Description
Price

1-1

TANK, FUEL (YELLOW) | FOR YU1

44100-31J30-YU1

Unavailable

1-2

TANK, FUEL (BLACK) | FOR YVB

44100-31J30-YVB

$1,210.35

1-3

TANK, FUEL (WHITE) | FOR AJP

44100-31J30-YWW

$1,214.22

2

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

4

CUSHION,FUEL TANK SIDE

44541-31J00

Unavailable

5

BRACKET,FUEL TANK REAR

44550-31J00

Unavailable

6

BOLT (8X16)

01550-0816A

$2.32

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT (8X35)

01550-0835A

$3.04

11

HOSE,FUEL TANK DRAIN NO.1

44423-31J21

$14.95

12

HOSE, FUEL TANK BRTHR NO.1

44424-31J21

$8.98

13

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$13.72

14

3 WAY

09367-06007

$3.46

15

HOSE, FUEL TANK BRTHR NO.2

44424-31J11

$7.88

16

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

17

MOLDING, FUEL TANK COVER

68241-31J00

Unavailable

18

BRACKET, FUEL TANK COVER SIDE, RH

44179-31J00

$11.58

18

BRACKET, FUEL TANK COVER SIDE, RH

44179-31J00

$11.58

19

BRACKET, FUEL TANK COVER SIDE, LH

44189-31J00

$11.58

19

BRACKET, FUEL TANK COVER SIDE, LH

44189-31J00

$11.58

20

SCREW (6X10)

09139-06181

$3.83

21

NUT (M6)

44523-47H00

$10.02

22

CUSHION,FUEL TANK COVER BRKT

44542-31J00

$4.82

23

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

24

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

25

BOLT

07130-1016B

Unavailable

26

CUSHION, FUEL TANK

44544-31J00

$5.52

27

GUIDE,DRAIN HOSE

44480-31J00

$10.18

28

HOSE,FUEL TANK DRAIN NO.2

44423-31J12

$16.27

29

3 WAY

09367-08005

$4.83

30

CLAMP (L:145)

09407-14407

$3.57

31

CUSHION

44545-31J00

Unavailable

32

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

32

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AJP=YWW(WHITE),YKY(BLUE)

SPECIAL NOTE

Unavailable
