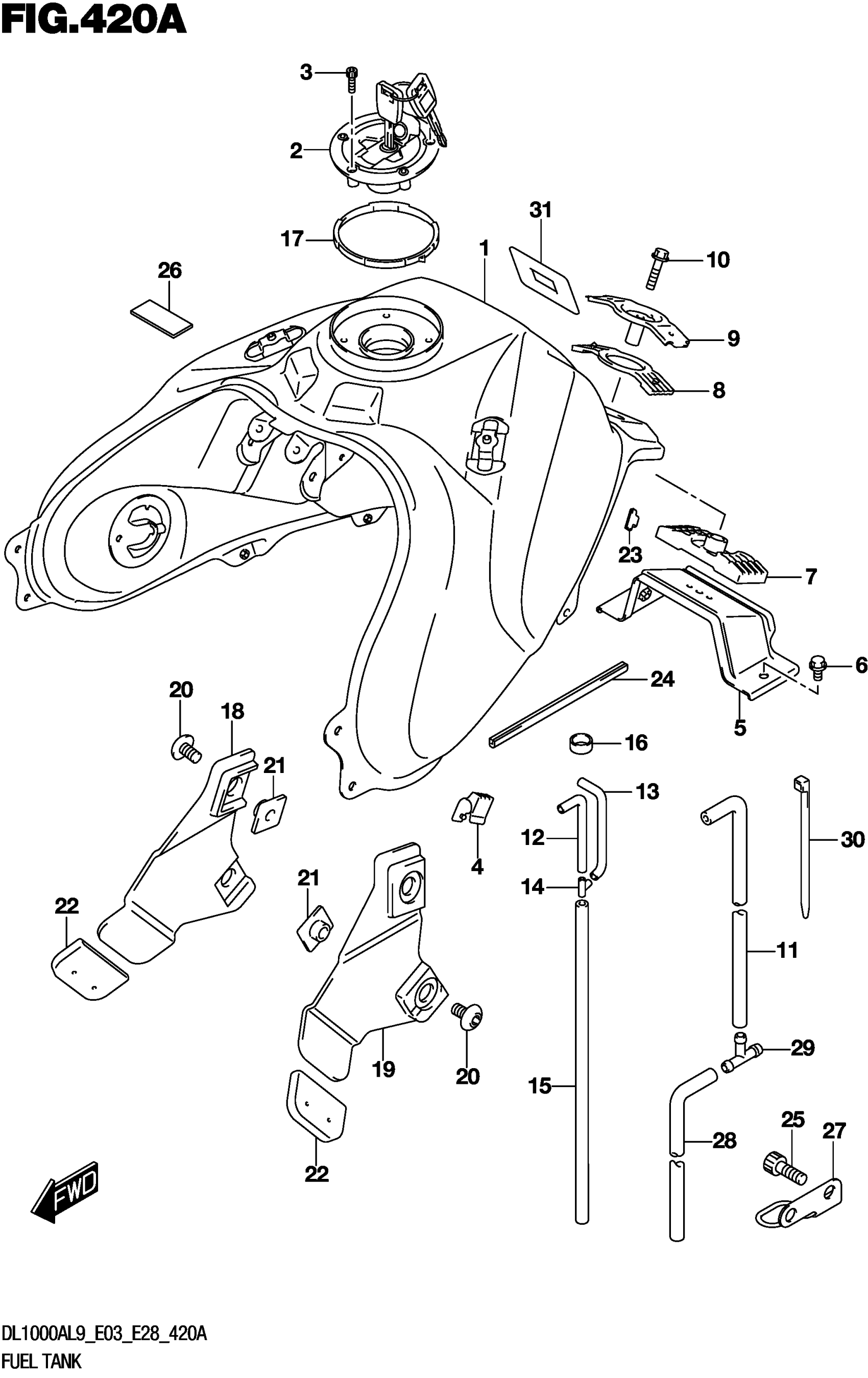

Suzuki DL1000AL9 (2019) FUEL TANK (DL1000XAL9 E03) Diagram

#

Description
Price

1-1

TANK, FUEL (YELLOW) | FOR YU1

44100-31J30-YU1

Unavailable

1-2

TANK, FUEL (BLACK) | FOR YVB

44100-31J30-YVB

$1,321.47

1-3

TANK, FUEL (WHITE) | FOR AJP

44100-31J30-YWW

$1,325.68

2

CAP SET,FUEL TANK FILLER

44200-17820

$242.68

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

4

CUSHION,FUEL TANK SIDE

44541-31J00

Unavailable

5

BRACKET,FUEL TANK REAR

44550-31J00

Unavailable

6

BOLT (8X16)

01550-0816A

$2.31

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$20.58

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$18.93

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT (8X35)

01550-0835A

$2.80

11

HOSE,FUEL TANK DRAIN NO.1

44423-31J21

$16.88

12

HOSE, FUEL TANK BRTHR NO.1

44424-31J21

$10.15

13

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$15.48

14

3 WAY

09367-06007

$3.17

15

HOSE, FUEL TANK BRTHR NO.2

44424-31J11

$8.91

16

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

17

MOLDING, FUEL TANK COVER

68241-31J00

Unavailable

18

BRACKET, FUEL TANK COVER SIDE, RH

44179-31J00

$13.07

18

BRACKET, FUEL TANK COVER SIDE, RH

44179-31J00

$13.07

19

BRACKET, FUEL TANK COVER SIDE, LH

44189-31J00

$13.07

19

BRACKET, FUEL TANK COVER SIDE, LH

44189-31J00

$13.07

20

SCREW (6X10)

09139-06181

$3.52

21

NUT (M6)

44523-47H00

$13.30

22

CUSHION,FUEL TANK COVER BRKT

44542-31J00

$5.43

23

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.46

24

MOLDING,FUEL TANK (L:110)

44552-24B00

$13.26

25

BOLT

07130-1016B

Unavailable

26

CUSHION, FUEL TANK

44544-31J00

$6.23

27

GUIDE,DRAIN HOSE

44480-31J00

$11.50

28

HOSE,FUEL TANK DRAIN NO.2

44423-31J12

$18.37

29

3 WAY

09367-08005

$5.25

30

CLAMP (L:145)

09407-14407

$2.80

31

CUSHION

44545-31J00

Unavailable

32

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

32

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AJP=YWW(WHITE),YKY(BLUE)

SPECIAL NOTE

Unavailable
