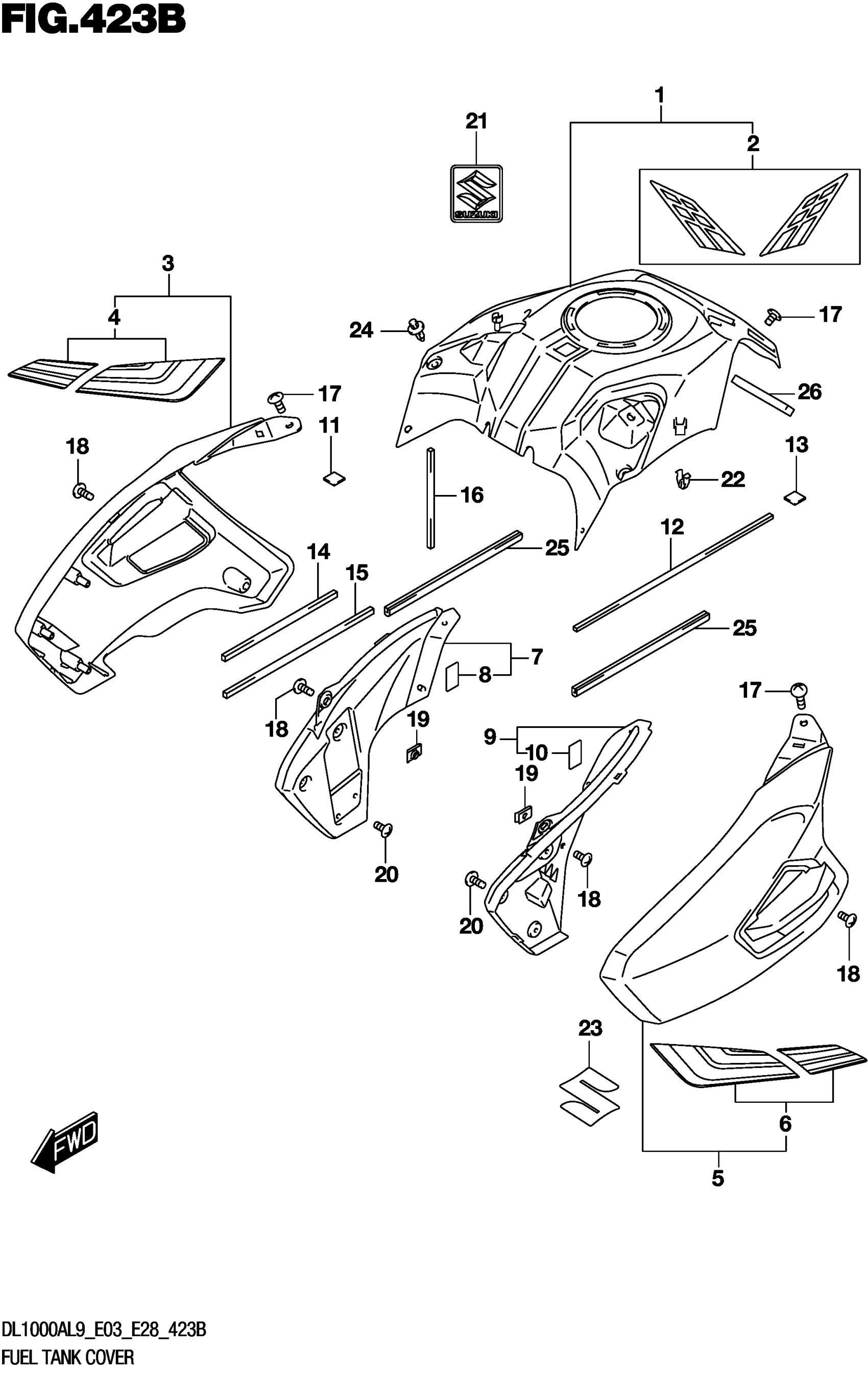

Suzuki DL1000AL9 (2019) FUEL TANK COVER (DL1000XAL9 E28) Diagram

#

Description
Price

1-1

COVER, FUEL TANK CENTER | FOR YU1

44190-31J20-YKV

Unavailable

1-1

COVER, FUEL TANK CENTER

44190-31J20-YKV

Unavailable

1-2

COVER, FUEL TANK CENTER | FOR YVB

44190-31J20-4TX

Unavailable

1-2

COVER, FUEL TANK CENTER

44190-31J20-4TX

Unavailable

1-3

(GRAY) | FOR AJP

44190-31J20-PGZ

$103.50

1-3

(GRAY)

44190-31J20-PGZ

$103.50

2-1

.TAPE,FUEL TANK COVER,R | FOR YU1

68120-31J00-BT2

Unavailable

2-2

.TAPE,FUEL TANK COVER,R | FOR YVB

68120-31J00-BT3

Unavailable

2-3

.TAPE,FUEL TANK COVER,R | FOR AJP

68120-31J00-BT4

$31.52

3-1

COVER, FUEL TANK SIDE RH | FOR YU1

44170-31J40-YKV

Unavailable

3-1

COVER, FUEL TANK SIDE RH

44170-31J40-YKV

Unavailable

3-2

COVER, FUEL TANK SIDE RH | FOR YVB

44170-31J40-4TX

Unavailable

3-2

COVER, FUEL TANK SIDE RH

44170-31J40-4TX

Unavailable

3-3

COVER, FUEL TANK SIDE RH | FOR AJP

44170-31J40-PGZ

Unavailable

3-3

COVER, FUEL TANK SIDE RH

44170-31J40-PGZ

Unavailable

4-1

.TAPE, FUEL TANK COVER RH | FOR YU1

68125-31J10-BT2

Unavailable

4-2

.TAPE, FUEL TANK COVER RH | FOR YVB

68125-31J10-BT3

Unavailable

4-3

.TAPE, FUEL TANK COVER RH | FOR AJP

68125-31J10-BT4

$37.57

5-1

(BLACK) | FOR YU1

44180-31J40-YKV

Unavailable

5-1

(BLACK)

44180-31J40-YKV

Unavailable

5-2

(BLACK) | FOR YVB

44180-31J40-4TX

Unavailable

5-2

(BLACK)

44180-31J40-4TX

Unavailable

5-3

COVER,FUEL TANK | FOR AJP This part replaces 44180-31J40-PGZ.

44180-31J41-PGZ

$191.07

5-3

COVER,FUEL TANK This part replaces 44180-31J40-PGZ.

44180-31J41-PGZ

$191.07

6-1

.TAPE, FUEL TANK COVER LH | FOR YU1

68135-31J10-BT2

Unavailable

6-2

.TAPE, FUEL TANK COVER LH | FOR YVB

68135-31J10-BT3

Unavailable

6-3

.TAPE, FUEL TANK COVER LH | FOR AJP

68135-31J10-BT4

$31.25

7

COVER, FUEL TANK FRONT RH

44270-31J00

$46.92

8

.TAPE, FUEL TANK COVER

45517-31J00

$9.48

9

COVER, FUEL TANK FRONT LH

44280-31J00

$46.92

10

.TAPE, FUEL TANK COVER

45517-31J00

$9.48

11

CUSHION (25X35X4) | CUT AS REQUIRED

44612-13600

$5.27

12

CUSHION, TANK COVER NO.1

44277-01H00

$4.87

13

CUSHION (15X15X2)

94642-10GA0

$4.57

14

CUSHION (5X120X6)

44176-31J00

$3.10

15

CUSHION, TANK COVER SIDE NO.2

44177-31J00

$3.48

16

CUSHION

44178-31J00

$3.25

17

SCREW (6X10)

09139-06172

$2.80

18

BOLT (5X13)

09139-05074

$2.58

19

NUT (M5)

09148-05052

$3.04

20

SCREW

03241-0516B

$1.68

21

EMBLEM,S

68281-47HA0

$7.11

22

CLIP (10.5X14.3)

09409-08326

$2.45

23

EMBLEM, S

68111-47HA0

$37.02

24

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

25

MOLDING,FUEL TANK (L:110)

44552-24B00

$13.26

26

CUSHION,STEERING LOCK

45289-05H00

$3.01

27

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

27

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AJP=YWW(WHITE),YKY(BLUE)

SPECIAL NOTE

Unavailable
