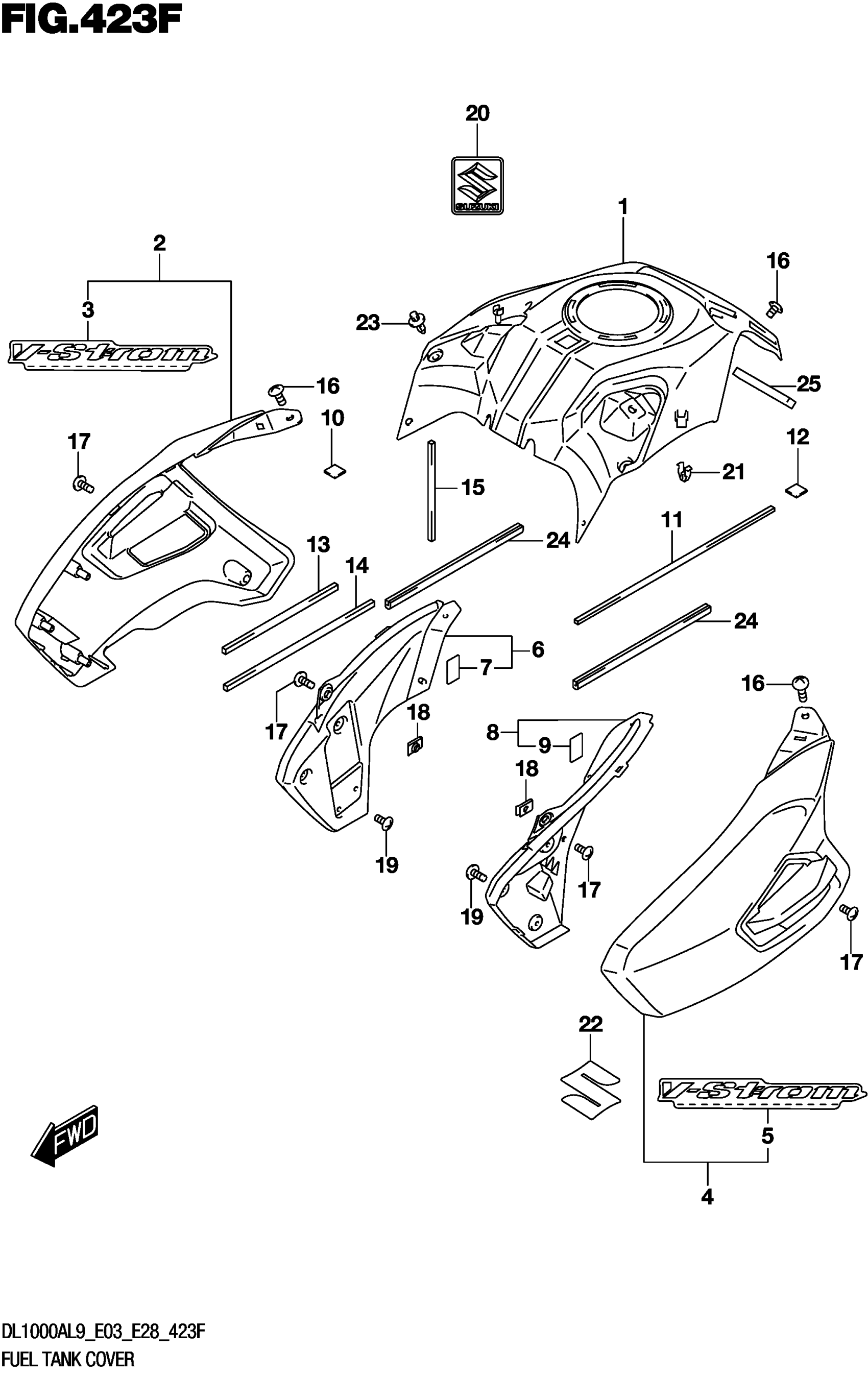

Suzuki DL1000AL9 (2019) FUEL TANK COVER (DL1000AL9 E33) Diagram

#

Description
Price

1

COVER,FUEL TANK This part replaces 44191-31J00-YKV.

44191-31J01-YKV

$325.18

1

COVER,FUEL TANK This part replaces 44191-31J00-YKV.

44191-31J01-YKV

$325.18

2

COVER COMP,FUEL This part replaces 44170-31J30-YKV.

44170-31J31-YKV

$211.35

2

COVER COMP,FUEL This part replaces 44170-31J30-YKV.

44170-31J31-YKV

$211.35

3

.EMBLEM, FUEL TANK COVER RH

68121-31J10-BUF

$12.58

4

COVER COMP,FUEL This part replaces 44180-31J30-YKV.

44180-31J31-YKV

$211.35

4

COVER COMP,FUEL This part replaces 44180-31J30-YKV.

44180-31J31-YKV

$211.35

5

.EMBLEM, FUEL TANK COVER LH

68131-31J10-BUF

$22.87

6

COVER, FUEL TANK FRONT RH

44270-31J00

$46.92

7

.TAPE, FUEL TANK COVER

45517-31J00

$9.48

8

COVER, FUEL TANK FRONT LH

44280-31J00

$46.92

9

.TAPE, FUEL TANK COVER

45517-31J00

$9.48

10

CUSHION (25X35X4) | CUT AS REQUIRED

44612-13600

$5.27

11

CUSHION, TANK COVER NO.1

44277-01H00

$4.87

12

CUSHION (15X15X2)

94642-10GA0

$4.57

13

CUSHION (5X120X6)

44176-31J00

$3.10

14

CUSHION, TANK COVER SIDE NO.2

44177-31J00

$3.48

15

CUSHION

44178-31J00

$3.25

16

SCREW (6X10)

09139-06172

$2.80

17

BOLT (5X13)

09139-05074

$2.58

18

NUT (M5)

09148-05052

$3.04

19

SCREW

03241-0516B

$1.68

20

EMBLEM,S

68281-47HA0

$7.11

21

CLIP (10.5X14.3)

09409-08326

$2.45

22

EMBLEM, S

68111-47HA0

$37.02

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

24

MOLDING,FUEL TANK (L:110)

44552-24B00

$13.26

25

CUSHION,STEERING LOCK

45289-05H00

$3.01
