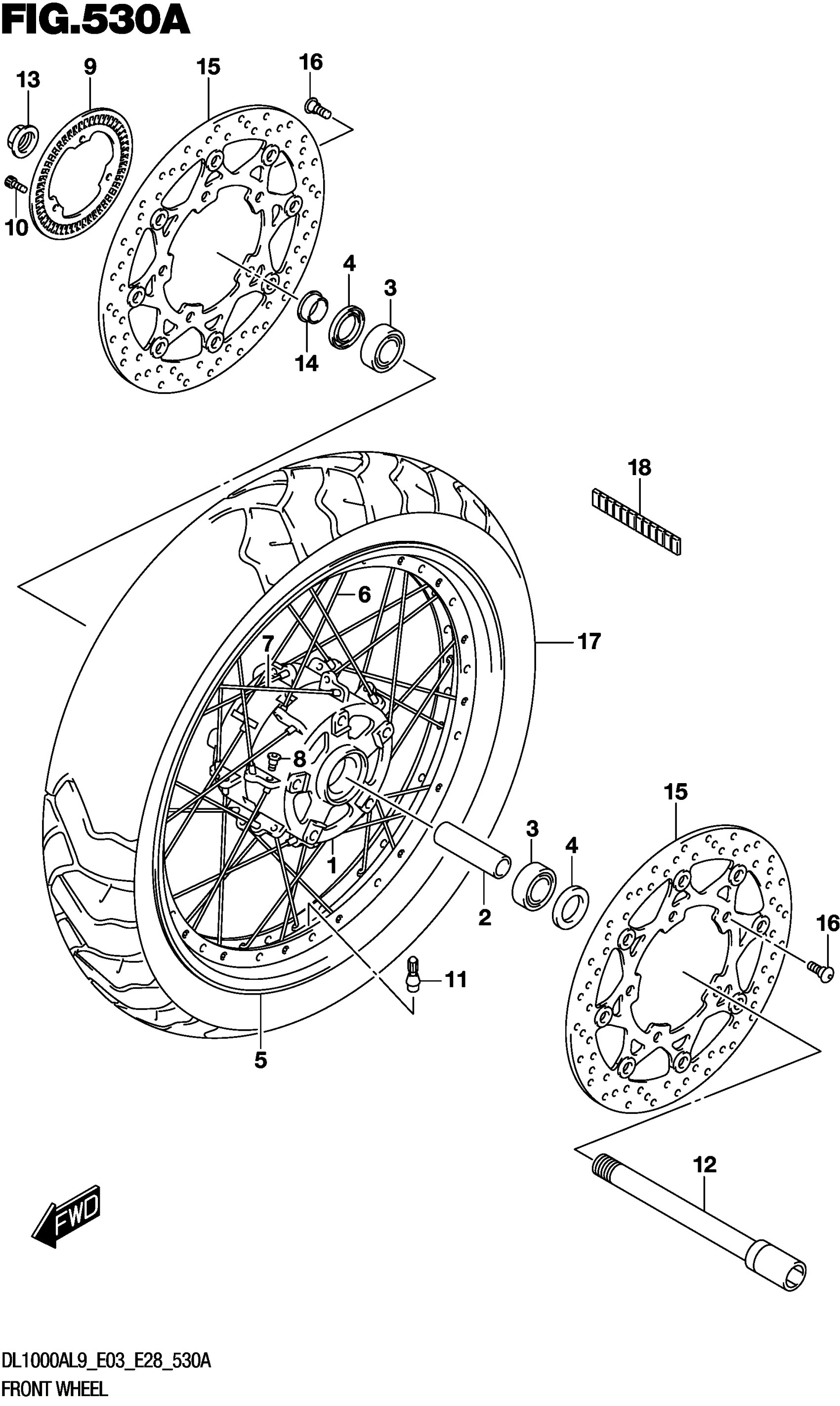

Suzuki DL1000AL9 (2019) FRONT WHEEL (DL1000XAL9 E03) Diagram

#

Description
Price

1

HUB,FRONT

54111-31J10

$755.53

2

SPACER,FR HUB BEARING

54731-33E20

$49.02

3

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

$24.28

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5-1

RIM,FR WHEEL (19M/CXMT2.50)

55311-31J10

$894.70

5-1

RIM,FR WHEEL (19M/CXMT2.50)

55311-31J10

$894.70

5-2

RIM,FR WHEEL (19M/CXMT2.50)

55311-31J20

$825.82

5-2

RIM,FR WHEEL (19M/CXMT2.50)

55311-31J20

$825.82

6

SPOKE, FRONT WHEEL INNER This part replaces 55321-11J00.

55321-11J01

$6.60

7

SPOKE,FRONT WHEEL OUTER This part replaces 55322-31J00.

55322-31J01

$6.82

8

NIPPLE, WHEEL

55326-11J00

$5.15

9

RING,SPEED SENSOR FR (50T)

54162-27G00

$140.15

10

BOLT

07130-0512A

$2.19

11

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

12

AXLE,FR

54711-31J00

$117.64

13

NUT,FR AXLE

54712-47H00

$41.53

14

SPACER,FR AXLE,R

54751-41G10

$19.66

15

DISC, FRONT BRAKE

59210-31J00

$300.52

16

BOLT (8X21)

09106-08160

$3.57

17

TIRE, FRONT (110/80R19M/C 59V) | BW-501 RADIAL J

55110-31J00

Unavailable

17

TIRE, FRONT (110/80R19M/C 59V) | BRIDGESTONE

55110-31J00

Unavailable

18

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$5.38
