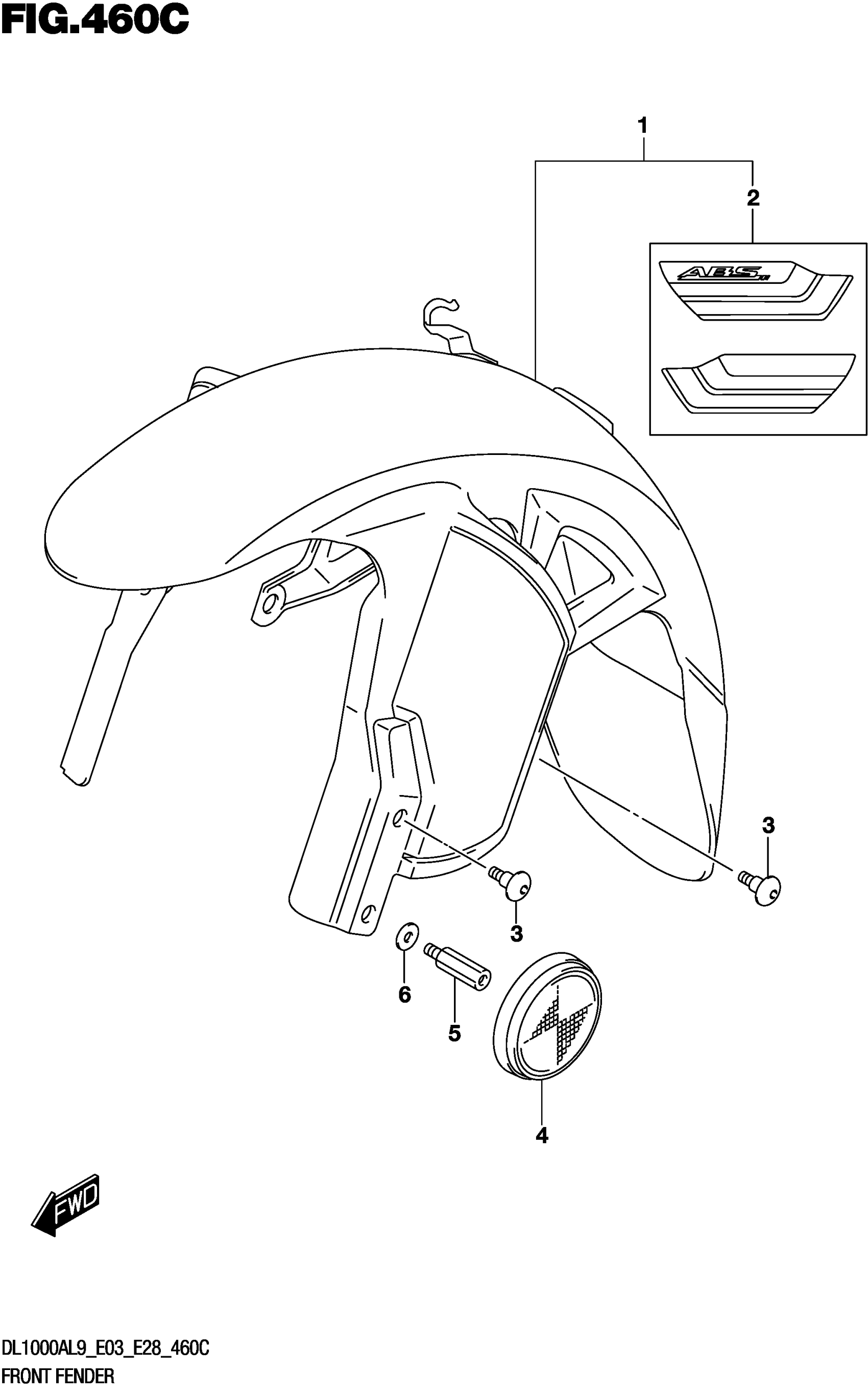

Suzuki DL1000AL9 (2019) FRONT FENDER (DL1000XAL9 E33) Diagram

#

Description
Price

1-1

FENDER, FRONT | FOR YU1

53100-31J30-BUB

Unavailable

1-2

FENDER, FRONT | FOR YVB

53100-31J30-BUD

Unavailable

1-3

FENDER, FRONT | FOR AJP

53100-31J30-BUE

$200.42

2-1

.TAPE SET, FRONT FENDER | FOR YU1

68150-31J10-BUB

Unavailable

2-2

.TAPE SET, FRONT FENDER | FOR YVB

68150-31J10-BUD

Unavailable

2-3

.TAPE SET, FRONT FENDER | FOR AJP

68150-31J10-BUE

Unavailable

3

SCREW (6X16)

47915-31J00

$2.92

4

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$12.46

5

BOLT

09119-06109

$13.28

6

WASHER (8.5X18X1.0)

09160-08043

$1.83

7

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

7

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AJP=YWW(WHITE),YKY(BLUE)

SPECIAL NOTE

Unavailable
