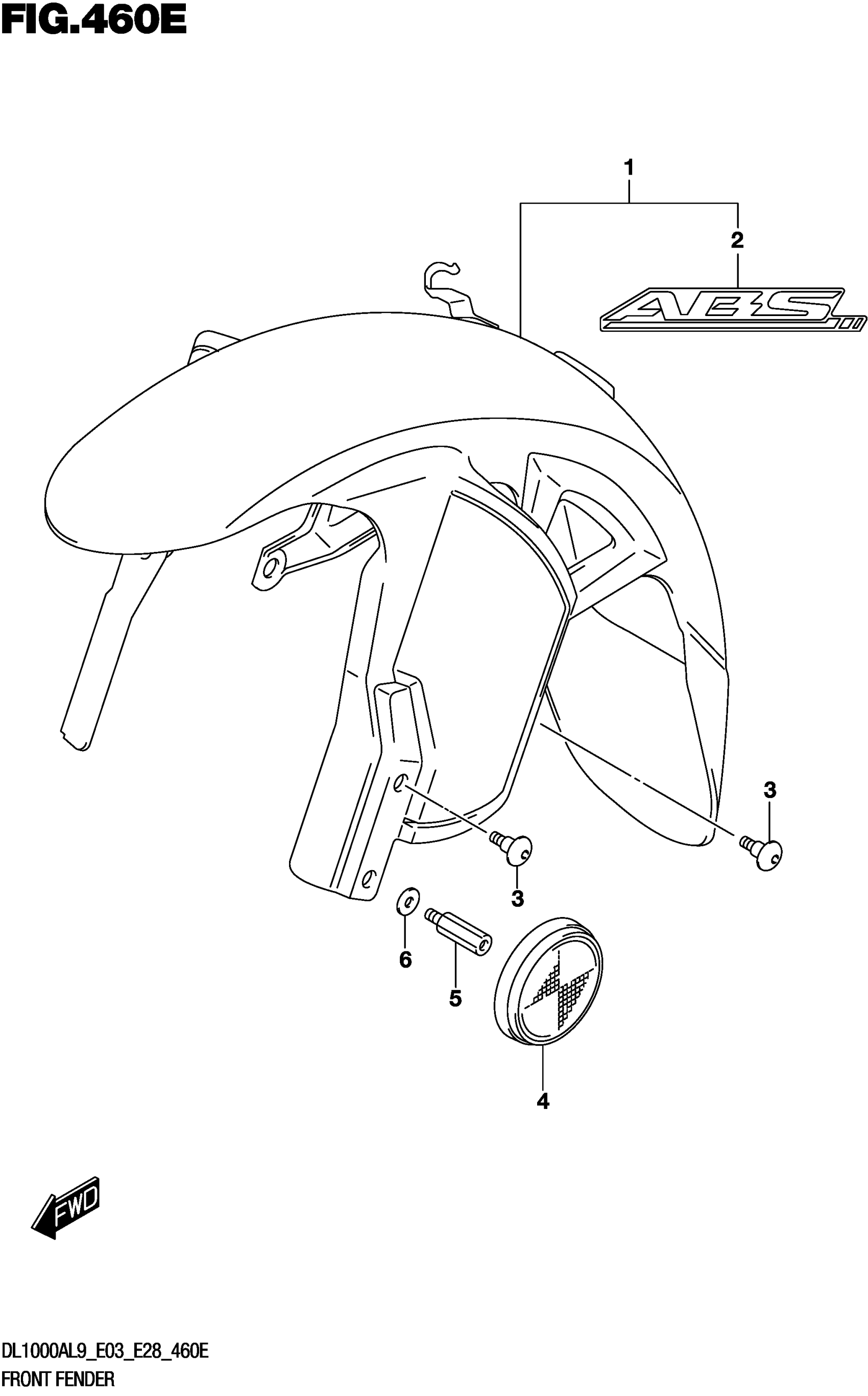

Suzuki DL1000AL9 (2019) FRONT FENDER (DL1000AL9 E28) Diagram

#

Description

Price

1

FENDER ASSY,FRONT (GRAY,BLACK This part replaces 53100-31J10-GWM.

53100-31J12-GWM

$183.32

2

.EMBLEM,ABS (GRAY,BLACK) This part replaces 68151-44G10-GWM.

68151-44G11-GWM

$12.32

3

SCREW (6X16)

47915-31J00

$2.92

4

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$12.46

5

BOLT

09119-06109

$13.28

6

WASHER (8.5X18X1.0)

09160-08043

$1.83
