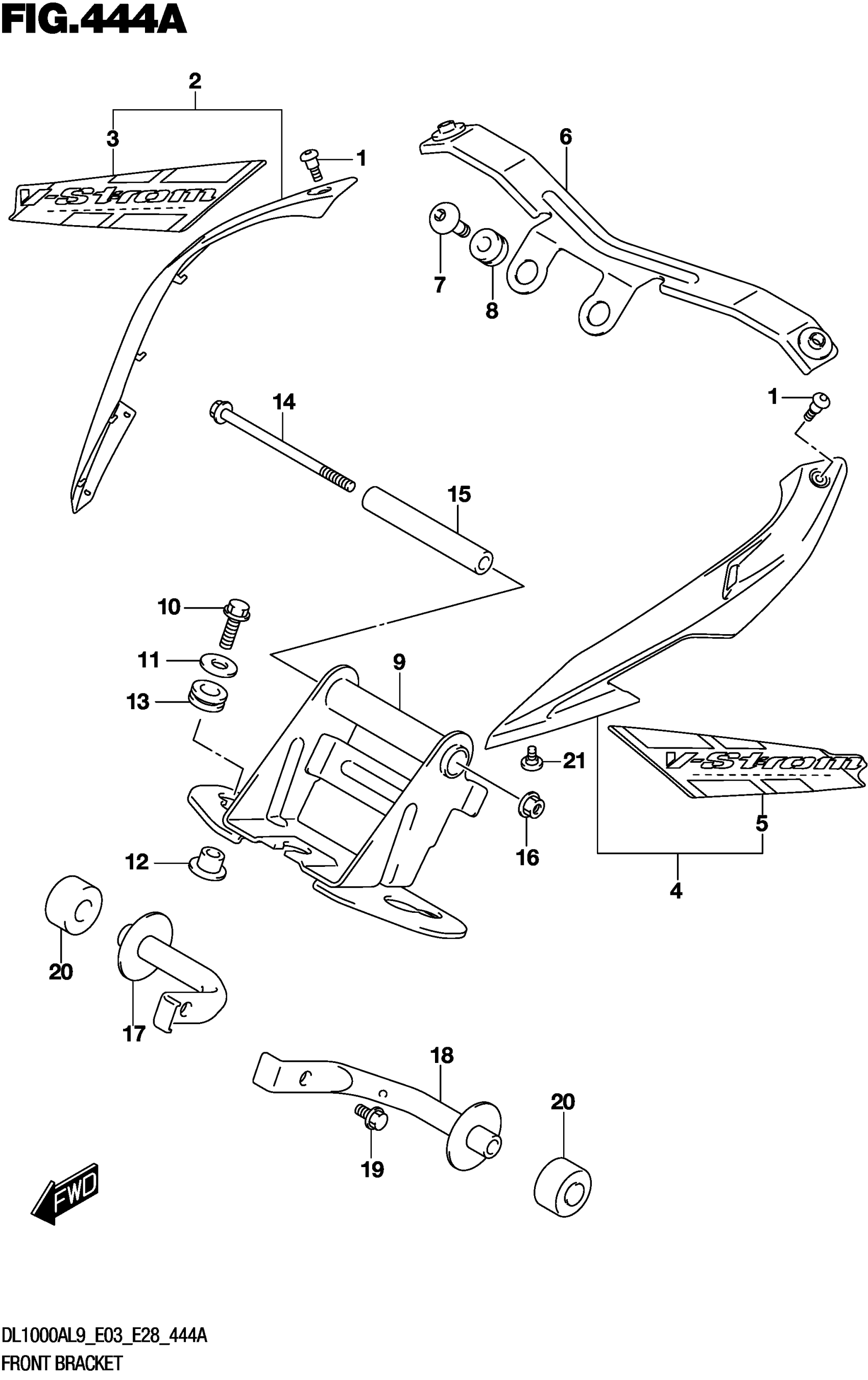

Suzuki DL1000AL9 (2019) FRONT BRACKET (DL1000XAL9 E03) Diagram

#

Description
Price

1

SCREW

44193-31J00

$5.33

2-1

COVER, SIDE REAR RH (BLACK) | FOR YU1

94420-31J30-YVB

Unavailable

2-2

COVER, SIDE REAR RH (BLACK) | FOR YVB

94420-31J30-6UX

Unavailable

2-3

COVER, SIDE REAR RH (BLUE) | FOR AJP

94420-31J30-YKY

$125.15

3-1

.TAPE, COVER SIDE RH | FOR YU1

68275-31J10-BT6

Unavailable

3-2

.TAPE, COVER SIDE RH | FOR YVB

68275-31J10-BT7

Unavailable

3-3

.TAPE, COVER SIDE RH | FOR AJP

68275-31J10-BUA

$18.33

4-1

COVER, SIDE REAR LH (BLACK) | FOR YU1

94430-31J30-YVB

Unavailable

4-2

COVER, SIDE REAR LH (BLACK) | FOR YVB

94430-31J30-6UX

Unavailable

4-3

COVER, SIDE REAR LH (BLUE) | FOR AJP

94430-31J30-YKY

Unavailable

5-1

.TAPE, COVER SIDE LH | FOR YU1

68285-31J10-BT6

Unavailable

5-2

.TAPE, COVER SIDE LH | FOR YVB

68285-31J10-BT7

Unavailable

5-3

.TAPE, COVER SIDE LH | FOR AJP

68285-31J10-BUA

$18.33

6

BRACKET, COVER

44160-31J00

$21.38

7

SCREW (6X20)

09139-06190

$4.17

8

CUSHION, COVER

44164-31J00

Unavailable

9

BRACKET,FUEL TANK FRONT

44520-31J01

$57.32

10

SCREW (6X25)

09139-06192

$3.23

11

WASHER This part replaces 09160-06012.

09160-06054

$1.62

12

SPACER,FUEL TANK FR

44512-16G00

$7.44

13

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

14

BOLT

01550-0695A

Unavailable

15

SPACER,FUEL TANK

44561-35F00

$13.88

16

NUT

08319-3106B

$2.45

17

BRACKET,FRONT SIDE

44560-31J00

$16.58

18

BRACKET,FRONT SIDE

44560-31J00

$16.58

19

BOLT

01550-0612A

$1.97

20

CUSHION,FRONT SIDE BRKT This part replaces 44543-31J00.

44543-31J01

$5.00

21

SCREW (5X13)

09139-05091

$2.03

22

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

22

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AJP=YWW(WHITE),YKY(BLUE)

SPECIAL NOTE

Unavailable
