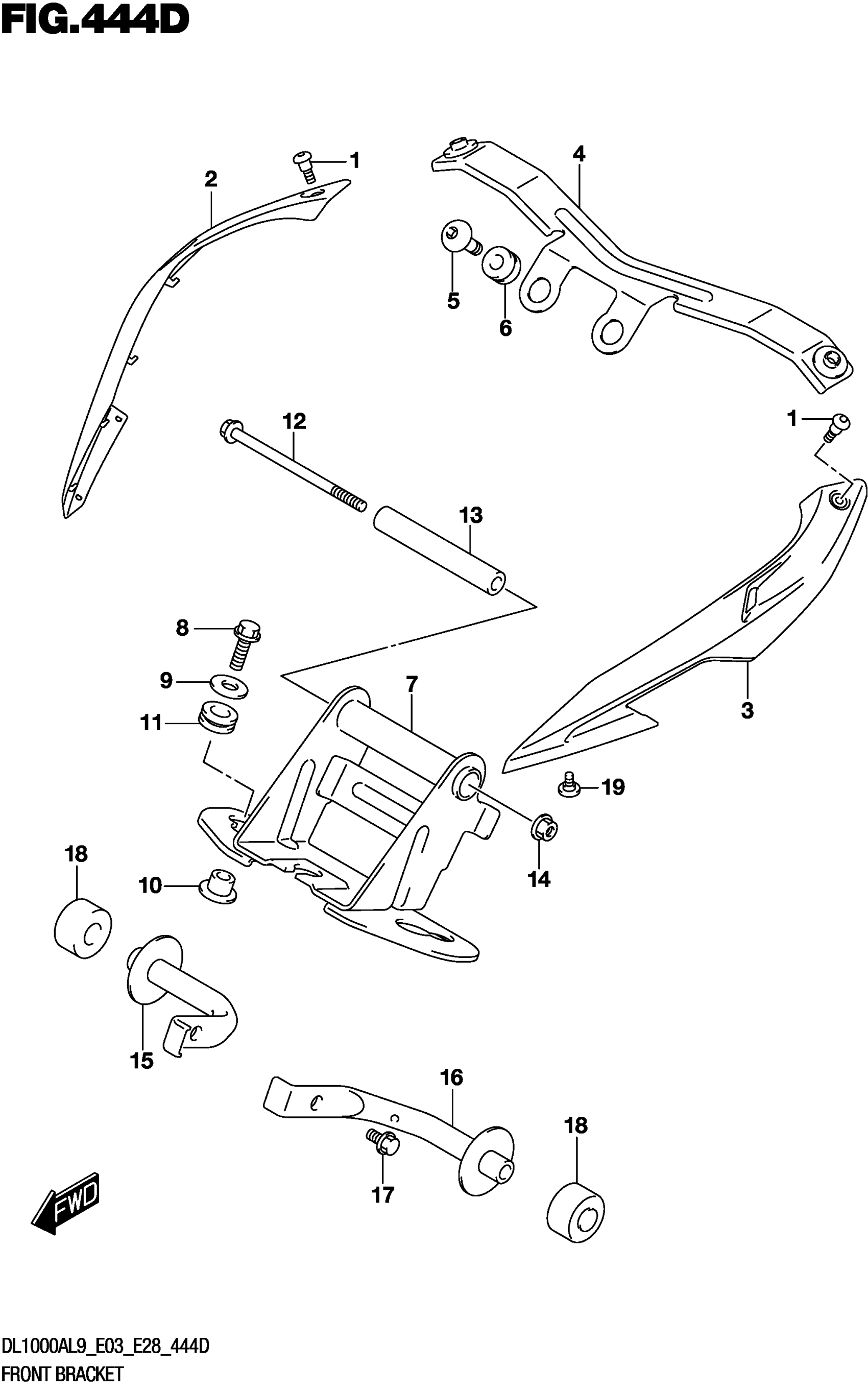

Suzuki DL1000AL9 (2019) FRONT BRACKET (DL1000AL9 E03) Diagram

#

Description
Price

1

SCREW

44193-31J00

$5.33

2-1

COVER, SIDE REAR RH (BLACK)

94421-31J10-YVB

$117.38

2-2

COVER, SIDE REAR RH (WHITE)

94421-31J10-YWW

$117.38

2-3

COVER, SIDE REAR RH (RED)

94421-31J10-YYG

$117.38

3-1

COVER, SIDE REAR LH (BLACK)

94431-31J10-YVB

Unavailable

3-2

COVER, SIDE REAR LH (WHITE)

94431-31J10-YWW

Unavailable

3-3

COVER, SIDE REAR LH (RED)

94431-31J10-YYG

Unavailable

4

BRACKET, COVER

44160-31J00

$21.38

5

SCREW (6X20)

09139-06190

$4.17

6

CUSHION, COVER

44164-31J00

Unavailable

7

BRACKET,FUEL TANK FRONT

44520-31J01

$57.32

8

SCREW (6X25)

09139-06192

$3.23

9

WASHER This part replaces 09160-06012.

09160-06054

$1.62

10

SPACER,FUEL TANK FR

44512-16G00

$7.44

11

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

12

BOLT

01550-0695A

Unavailable

13

SPACER,FUEL TANK

44561-35F00

$13.88

14

NUT

08319-3106B

$2.45

15

BRACKET,FRONT SIDE

44560-31J00

$16.58

16

BRACKET,FRONT SIDE

44560-31J00

$16.58

17

BOLT

01550-0612A

$1.97

18

CUSHION,FRONT SIDE BRKT This part replaces 44543-31J00.

44543-31J01

$5.00

19

SCREW (5X13)

09139-05091

$2.03
