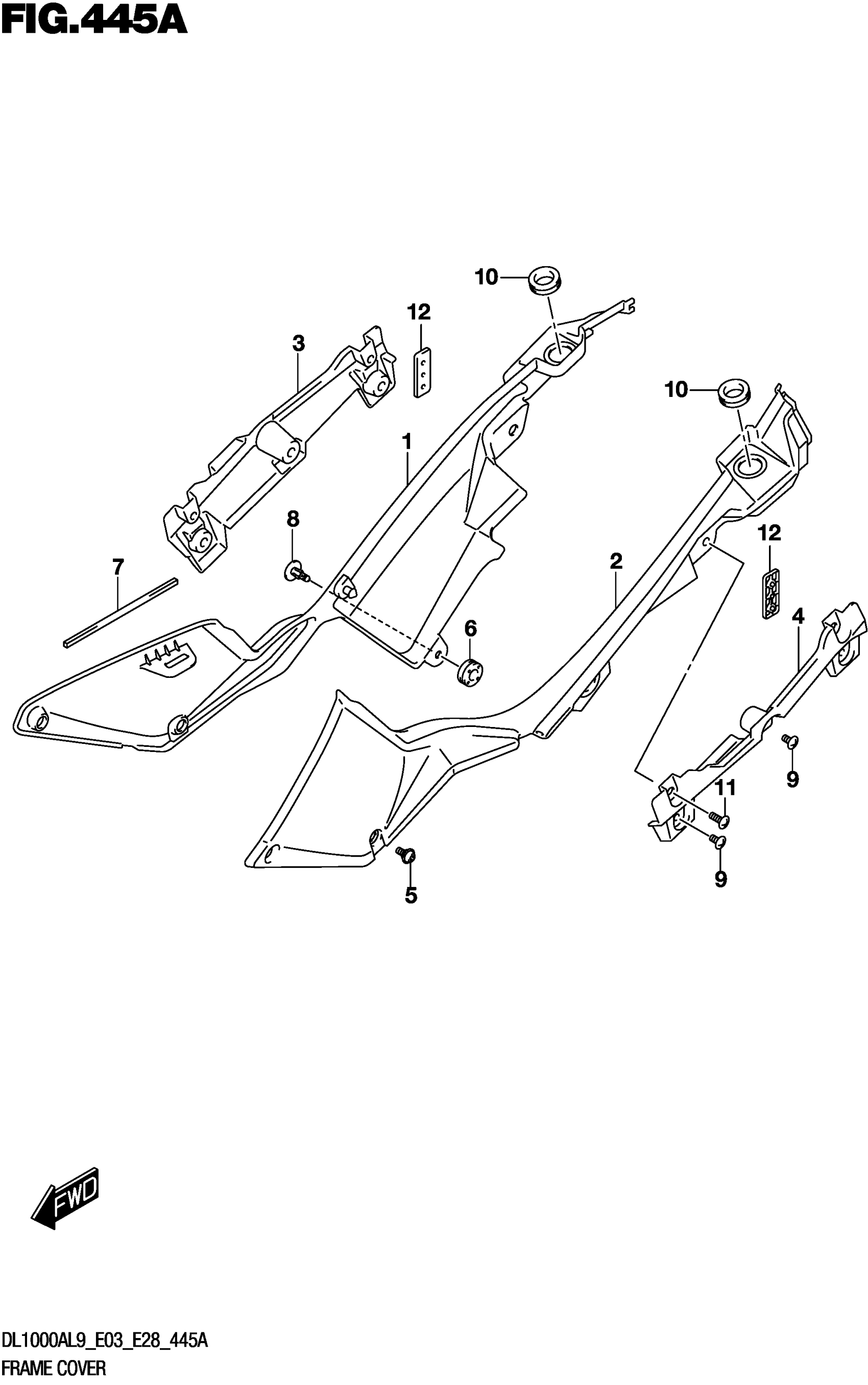

Suzuki DL1000AL9 (2019) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH

47111-31J10

Unavailable

2

COVER, FRAME LH

47211-31J10

$133.73

3

COVER, FRAME REAR, R

47411-31J00

$11.40

4

COVER, FRAME REAR, L

47511-31J00

$11.40

5

BOLT (5X13)

09139-05074

$2.61

6

CUSHION (8X26X7)

09320-08028

$3.04

7

CUSHION,FRAME COVER (L:130)

47121-31J00

$2.46

8

CLIP

94479-35F00

$5.62

9

SCREW (6X12)

47913-31J00

$2.42

10

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.69

11

SCREW (6X16)

09139-06120

$2.83

12

SPACER,FRAME COVER

47510-28K00

$17.72
