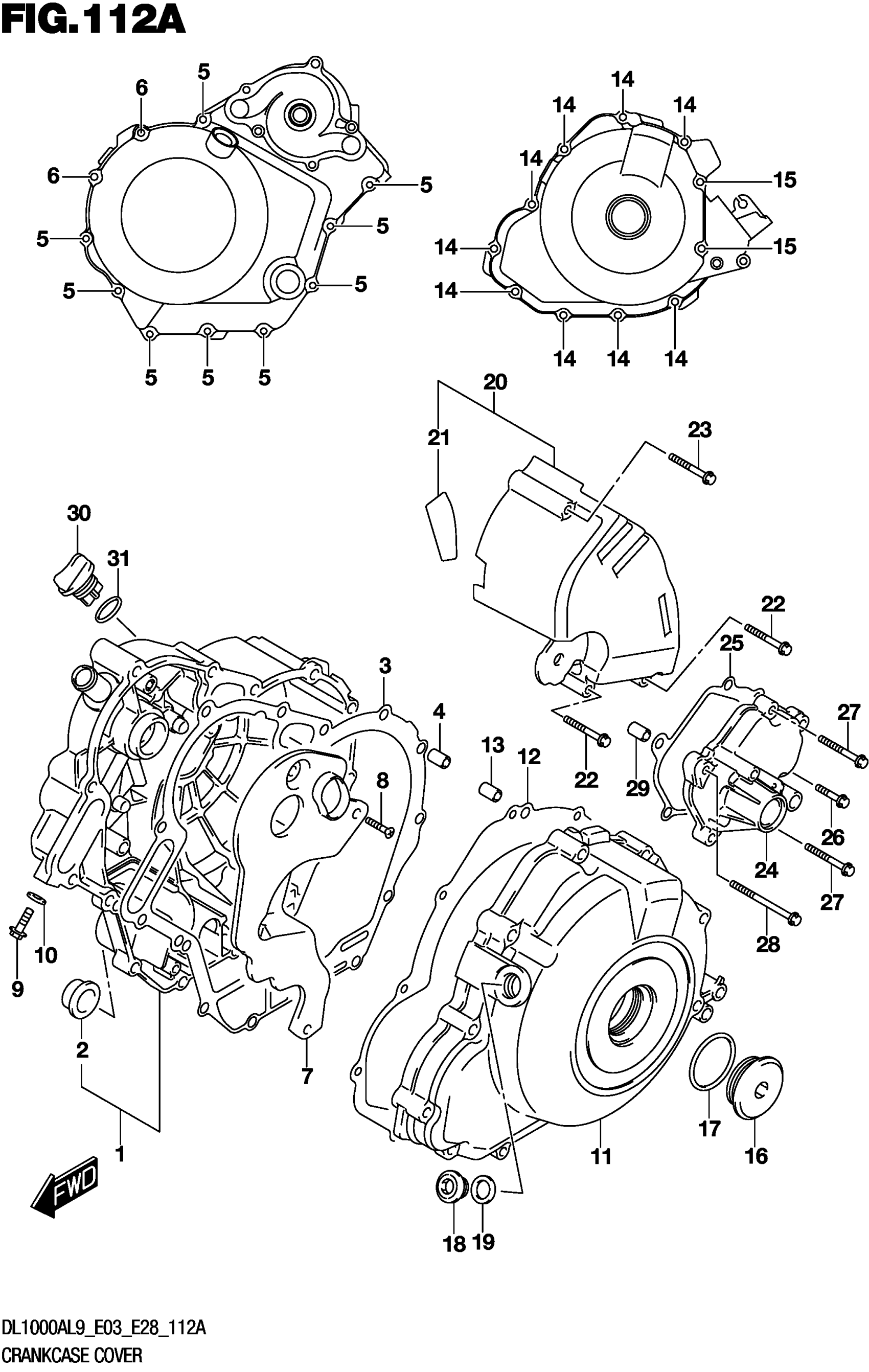

Suzuki DL1000AL9 (2019) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-06G40

$348.22

2

.LENS,OIL LEVEL CHECK

11971-33210

$18.20

3

.GASKET,CLUTCH COVER

11482-06G10

$19.35

4

PIN (8.5X18X2.3)

04211-09149

$1.65

5

BOLT (6X30)

09103-06529

$1.96

6

BOLT,CLUTCH COVER (6X75)

09103-06538

$2.88

7

SEPARATOR,OIL

11342-06G00

$57.33

8

SCREW

02112-0612A

$1.49

9

BOLT

01550-0610A

$1.97

10

GASKET (6.4X11.5X0.84)

09168-06026

$3.10

11

COVER,MAGNETO This part replaces 11351-31J10.

11351-31J11

$294.20

12

.GASKET,MAGNETO COVER

11483-02F10

$17.54

13

PIN (8.5X18X2.3)

04211-09149

$1.65

14

BOLT (L:35)

09103-06530

$2.10

15

BOLT (6X80)

09103-06539

$3.38

16

PLUG

09259-36027

$17.38

17

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

18

PLUG (14X12)

09248-14011

$2.98

19

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

20

COVER,ENG SPROCKET

11360-31J00

$48.22

21

.SHEET,SPROCKET COVER

11362-31J00

$8.92

22

BOLT (L:35)

09103-06530

$2.10

23

BOLT (6X60)

09103-06535

$2.88

24

COVER,GEAR SHIFT

11381-06G00

$99.63

25

.GASKET,GEAR SHIFT COVER

11485-02F10

$4.99

26

BOLT (6X105)

09103-06314

Unavailable

27

BOLT

01547-0625A

$2.01

28

BOLT

01547-0635A

$2.30

29

PIN (8.5X18X2.3)

04211-09149

$1.65

30

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

31

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65
