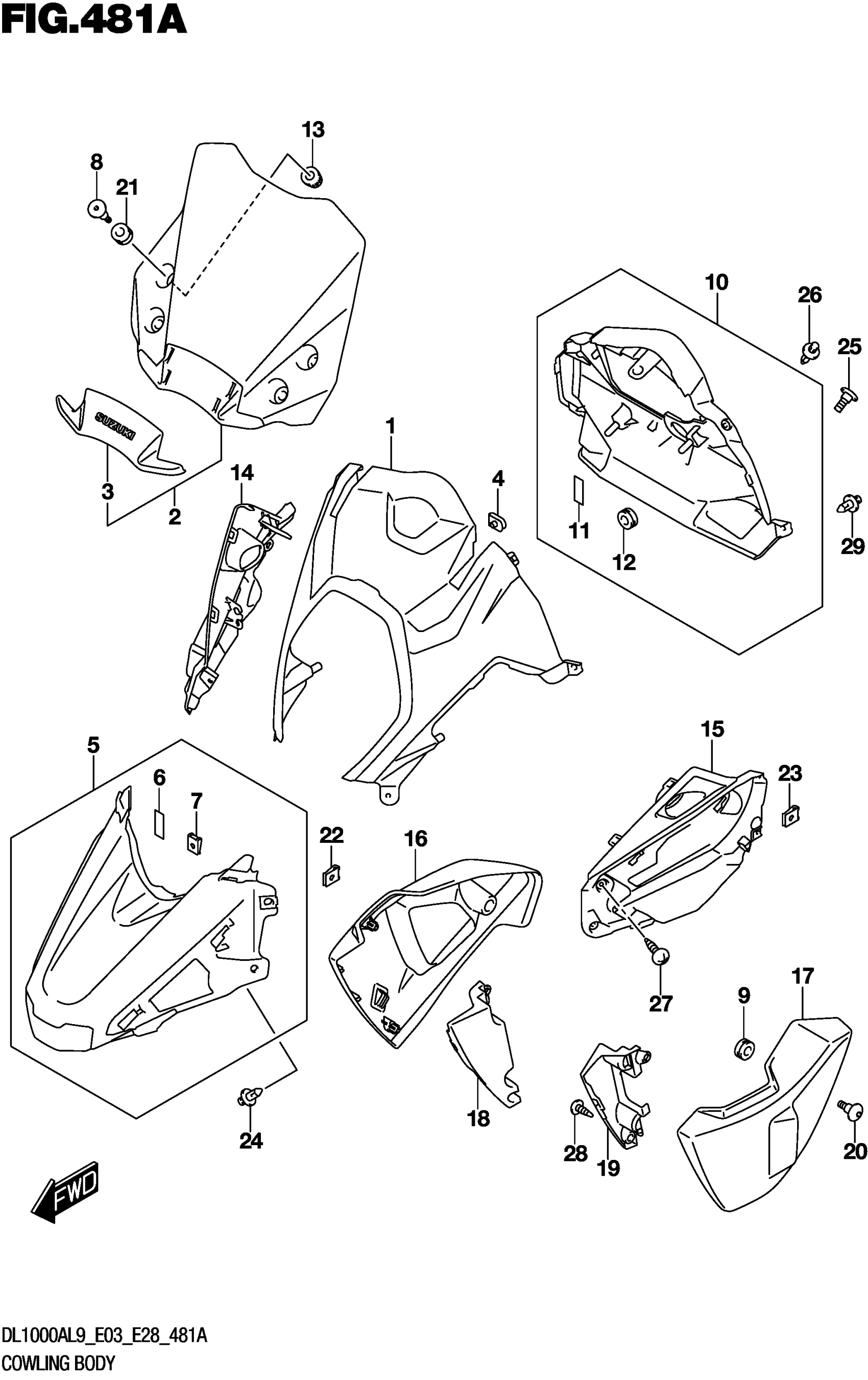

Suzuki DL1000AL9 (2019) COWLING BODY Diagram

#

Description
Price

1

COWLING, BODY (BLACK)

94411-31J10-YKV

$275.05

2

WINDSCREEN (BLACK)

48410-31JB0

$115.75

3

COVER,WINDSCREE This part replaces 48412-31J01.

48412-31J01-5PK

$12.90

4

NUT

09148-06020

$4.38

5

COWLING, BODY LOWER

94402-31J10

$39.55

6

PAD (8X20X2)

73415-70A00

$1.56

7

NUT (M5)

09148-05052

$3.37

8

BOLT, WINDSCREEN

48415-31J00

$5.84

9

CUSHION (9X18X9.5)

09320-09016

$1.97

10

PANEL, METER

94630-31J10

$46.98

11

PAD (8X20X2)

73415-70A00

$1.56

12

CUSHION (8X26X7)

09320-08028

$3.04

13

CAP, WINDSCREEN SCREW

48414-31J00

$2.88

14

COVER, SIDE FR RH

94413-31J10

$29.47

15

COVER, SIDE FR LH

94414-31J10

$29.47

16

COWLING, SIDE LOWER, RH (BLACK)

94441-31J00-291

$36.93

16

COWLING, SIDE LOWER, RH (BLACK)

94441-31J00-291

$36.93

17

COWLING, SIDE LOWER, LH (BLACK)

94451-31J00-291

$36.52

17

COWLING, SIDE LOWER, LH (BLACK)

94451-31J00-291

$36.52

18

COVER, SIDE COWL INNER, RH

94461-31J00

$10.42

19

COVER, SIDE COWL INNER, LH

94462-31J00

$10.18

20

SCREW

47911-31J00

$4.70

21

CUSHION (9X18X9.5)

09320-09016

$1.97

22

NUT (M5)

09148-05038

$1.97

23

NUT (M5)

09148-05052

$3.37

24

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

25

SCREW (6X16)

09139-06120

$2.83

26

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

27

SCREW

03541-0512A

$1.49

28

SCREW

03541-0512A

$1.49

29

CLIP

09409-06329

$2.79
