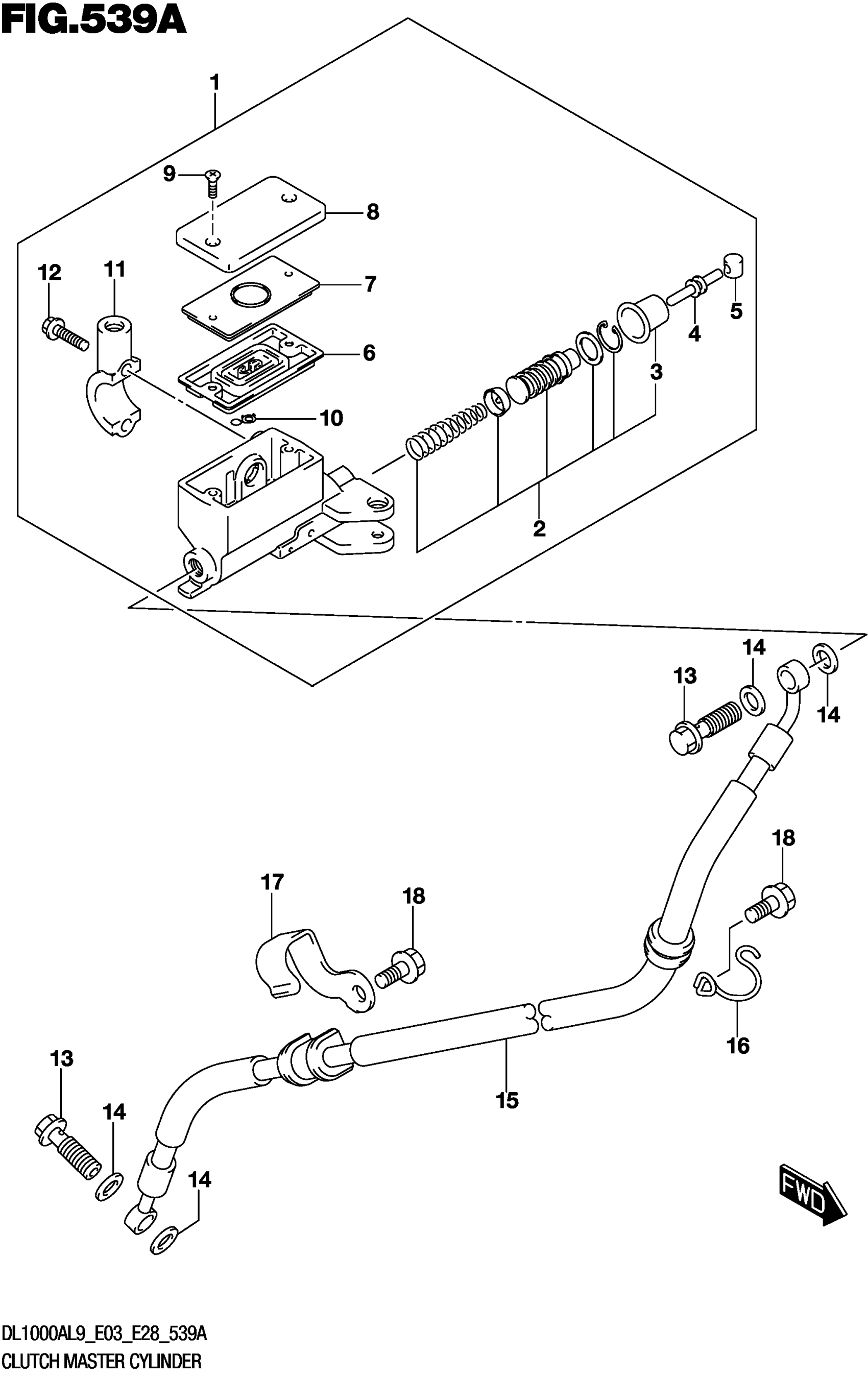

Suzuki DL1000AL9 (2019) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,CLUTCH MASTER

59800-32F40

$281.80

2

.PISTON & CUP SET

59800-31810

$86.32

3

..BOOT

59866-23H00

$7.97

4

.ROD,PUSH

59871-23H10

Unavailable

5

.BUSH

59892-08A00

$5.05

6

.DIAPHRAGM

59667-49460

$9.78

7

.PLATE,DIAPHRAGM

59668-41C00

$9.32

8

.CAP

59669-10G20

$57.33

9

.SCREW

69689-49300

$1.91

10

.PROTECTOR

59664-32F00

$11.68

11

.HOLDER

59671-32F00

$19.52

12

.BOLT (6X22)

59675-02FA0

$3.82

13

UNION (10X1.25X22)

09360-10062

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

HOSE, CLUTCH

59910-31J00

Unavailable

16

CLAMP, CLUTCH HOSE NO.1

59915-31J00

Unavailable

17

CLAMP, CLUTCH HOSE NO.2

59921-31J00

Unavailable

18

BOLT

01550-0612A

$1.97
