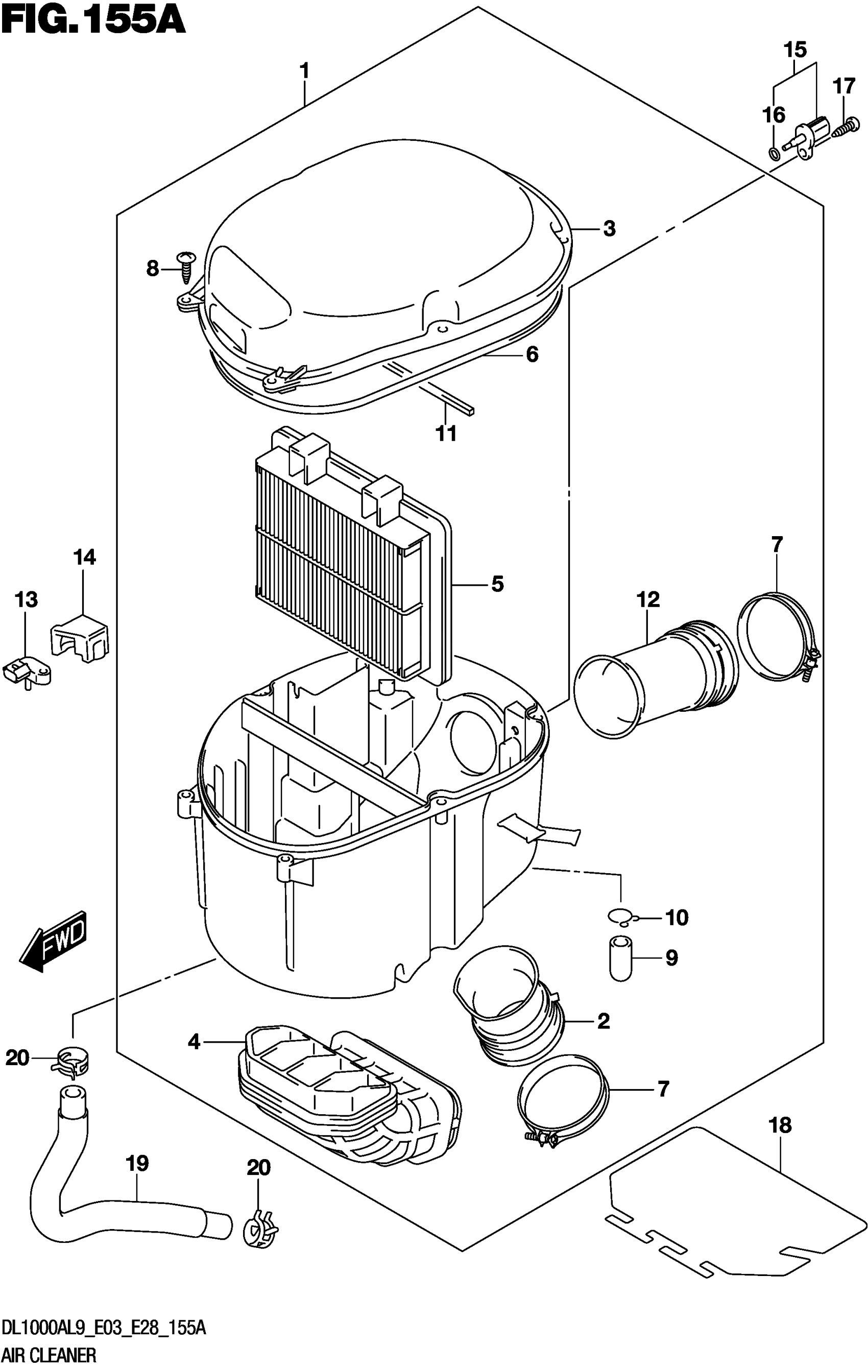

Suzuki DL1000AL9 (2019) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-31J00

Unavailable

2

.TUBE, OUTLET FR

13881-31J00

$18.25

3

.CAP, AIR CLEANER

13741-31J00

Unavailable

4

.TUBE,INLET

13891-31J00

Unavailable

5

.FILTER,AIR CLEANER

13780-31J00

$41.00

6

.GASKET, AIR CLEANER

13746-31J00

$6.65

7

.CLAMP, OUTLET TUBE

13827-31J00

$16.03

8

SCREW

03541-0520B

$2.63

9

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

10

.CLIP

09401-14301

$2.35

11

.GASKET, AIR CLEANER

13746-31J10

$12.58

12

.TUBE, OUTLET RR

13882-31J00

$28.90

13

SENSOR,BOOST

18590-18K00

$315.08

14

HOLDER,SENSOR

18595-04K00

$10.55

15

SENSOR,AIR TEMP

13650-41F10

$63.25

16

O-RING

13655-41F10

Unavailable

17

SCREW

03511-0516A

$1.86

18

SHEET,AIR CLEANER INLET

13738-31J00

Unavailable

19

TUBE,BREATHER

13850-31J00

$36.78

20

CLIP

09401-22405

Unavailable
