2018 Suzuki DL1000AL8 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2018 Suzuki DL1000AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

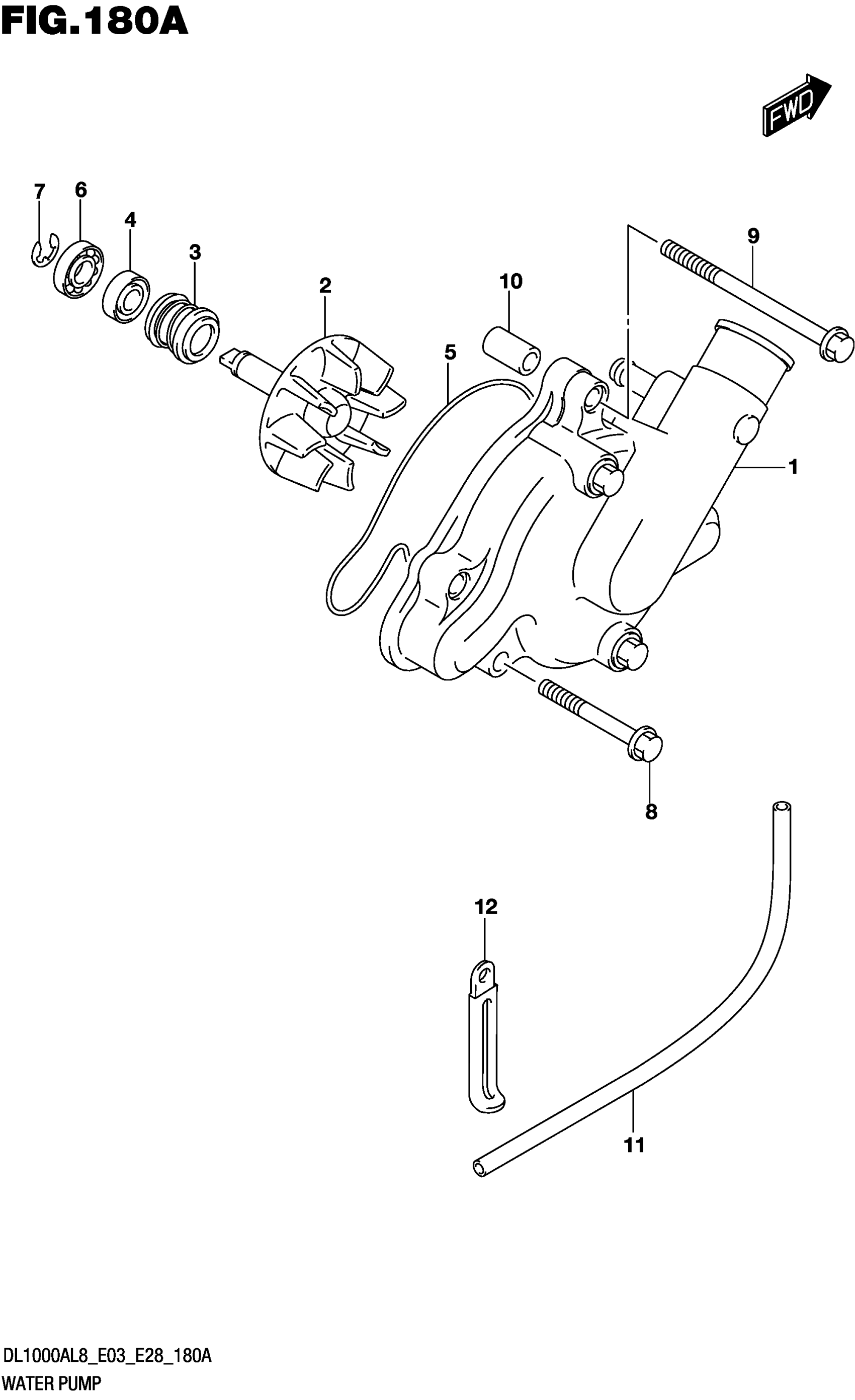

2018 Suzuki DL1000AL8 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, WATER PUMP

17410-31J10

1
Out of stock

2

IMPELLER,WATER PUMP

17491-16G00

1
Out of stock

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

4

OIL SEAL (10X20X5)

09283-10005

1
Out of stock

5

O RING

17435-02F00

1
Out of stock

6

BEARING (10X22X5)

09262-10016

2
Out of stock

7

.E-RING

08332-1108A

1
Out of stock

8

BOLT (6X30)

09103-06213

2

$2.63

In stock

9

BOLT (6X65)

09103-06239

3
Out of stock

10

PIN

04211-09149

1
Out of stock

11

HOSE(4.2X7X600) | L:600->140 This part replaces 09352-42703-600.

09352-42704-600

1
Out of stock

12

CLAMP (L:45)

09404-06429

1
Out of stock
