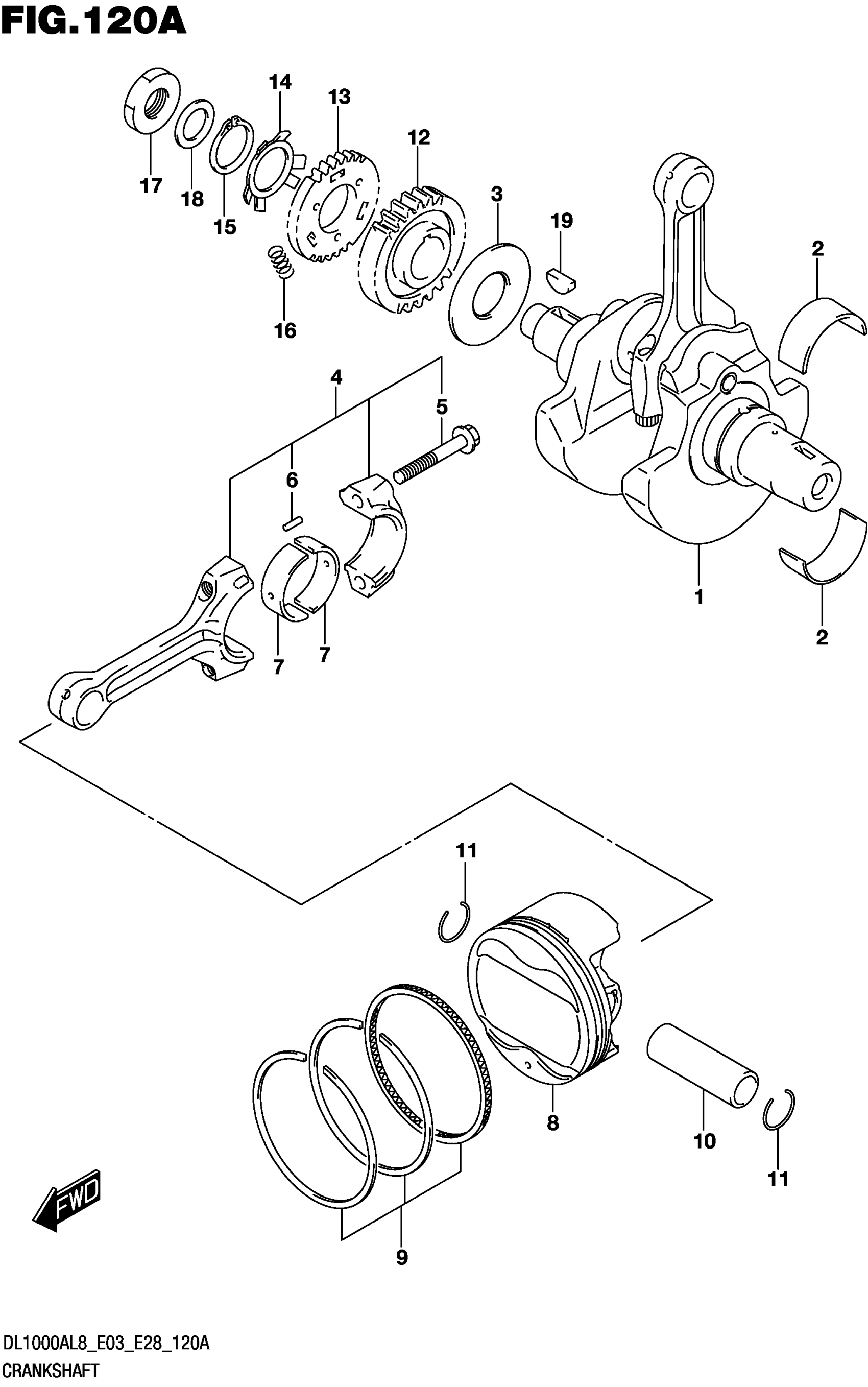

Find the part on the Crankshaft diagram for your 2018 Suzuki DL1000AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki DL1000AL8 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT

12220-31J00

1
Out of stock

2-1

BEARING,CRANKSHAFT

12229-31J00-0A0

4
Out of stock

2-2

BEARING,CRANKSHAFT

12229-31J00-0B0

4
Out of stock

2-3

BEARING,CRANKSHAFT

12229-31J00-0C0

4
Out of stock

3

WASHER,CRANK THRUST

12652-38B00

1
Out of stock

4

CONNECTING ROD ASSY

12160-06G10

2
Out of stock

5

.BOLT

12163-06G00

4
Out of stock

6

.PIN

12165-27A50

4
Out of stock

7-1

BEARING,CRANK PIN

12164-31J00-0A0

4
Out of stock

7-2

BEARING,CRANK PIN

12164-31J00-0B0

4
Out of stock

7-3

BEARING,CRANK PIN

12164-31J00-0C0

4
Out of stock

7-4

BEARING,CRANK PIN

12164-31J00-0D0

4
Out of stock

8

PISTON

12111-31J10-0F0

2
Out of stock

9

RING SET,PISTON

12140-31J00

2
Out of stock

10

PIN, PISTON

12151-02F10

2
Out of stock

11

CIRCLIP

09381-22002

4
Out of stock

12

GEAR, PRIMARY DRIVE (NT:31)

21111-02F11

1
Out of stock

13

GEAR, PRIMARY DRIVE SCISSORS

21112-02F00

1
Out of stock

13

(NT:31)

21112-02F00

1
Out of stock

14

WASHER

21114-02F00

1
Out of stock

15

CIRCLIP

08331-31409

1

$3.90

In stock

16

SPRING

09440-07001

3
Out of stock

17

NUT

09140-22012

1
Out of stock

18

WASHER

09164-22007

1
Out of stock

19

KEY

09420-06001

1
Out of stock
