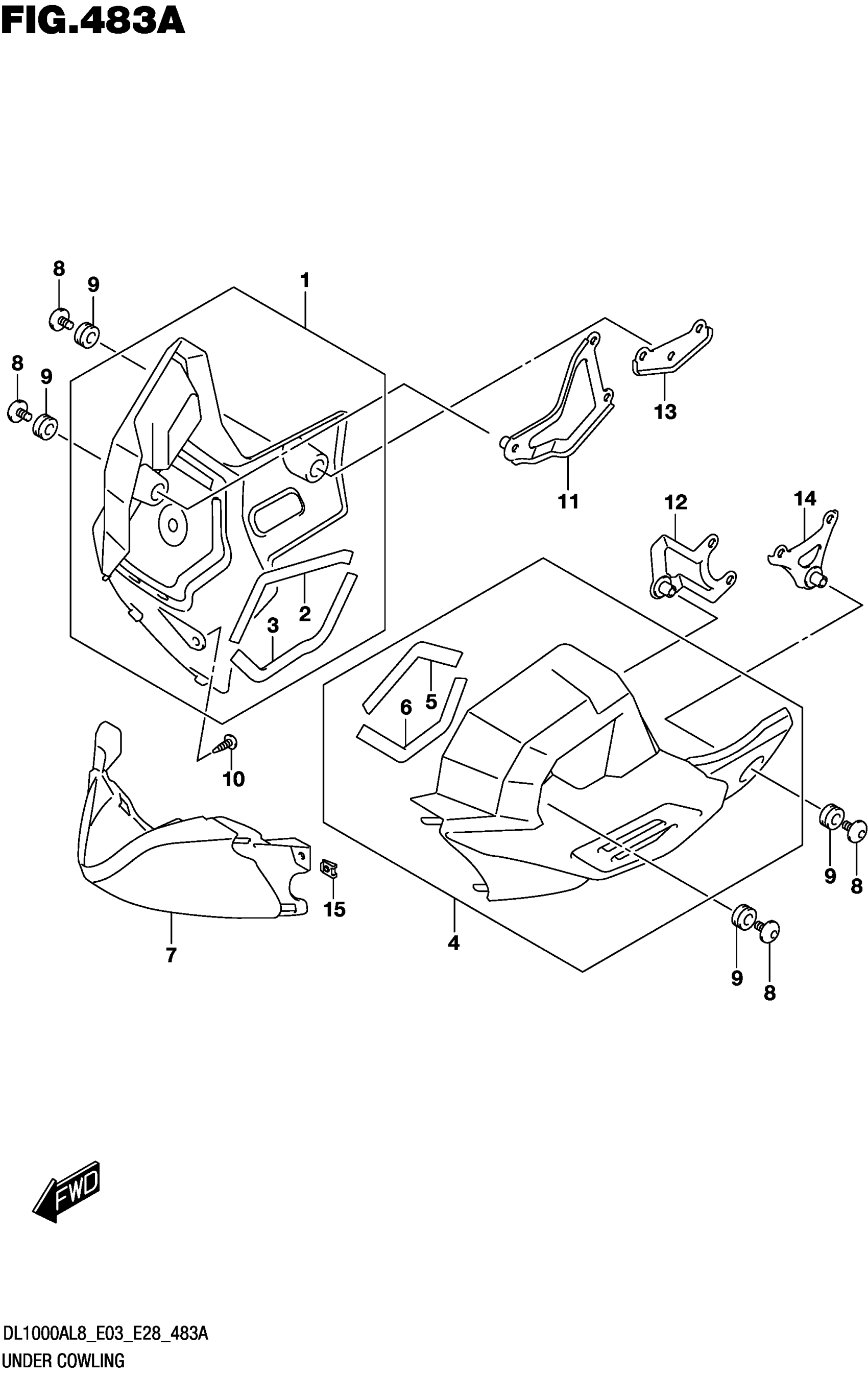

Suzuki DL1000AL8 (2018) UNDER COWLING Diagram

#

Description
Price

1

COWLING, UNDER RH

94470-31J00

$159.52

2

.CUSHION, COWLING UNDER NO.1

94473-31J00

Unavailable

3

.CUSHION, COWLING UNDER NO.2

94474-31J00

Unavailable

4

COWLING, UNDER LH

94480-31J00

Unavailable

5

.CUSHION, COWLING UNDER NO.1

94483-31J00

Unavailable

6

.CUSHION, COWLING UNDER NO.2

94484-31J00

Unavailable

7

COWLING, UNDER CTR

94491-31J01

Unavailable

8

SCREW, UNDER COWLING

47914-31J00

$5.98

9

CUSHION

09320-09016

$1.97

10

SCREW

03541-0516B

$1.78

11

BRACKET, UNDER COWLING FR RH This part replaces 94530-31J00.

94530-31J01

$19.57

12

BRACKET, UNDER COWLING FR LH

94540-31J00

$11.78

13

BRACKET, UNDER COWLING RH

94530-06G00

$13.35

14

BRACKET, UNDER COWLING LH

94540-06G00

$14.23

15

NUT (M5)

09148-05045

$2.36
