Description

Price

1-1

SEAT ASSY | FOR YVB,YWW This part replaces 45100-31J10-BGQ.

45100-31J12-BGQ

$529.70

1-2

SEAT ASSY | FOR YU1

45100-31J10-BGR

$586.58

2

.CUSHION

45149-31300

$3.56

3

CUSHION

09321-10012

$2.92

4

.TAPE, SEAT BOTTOM

94474-17H00

$4.58

5

.CUSHION, SEAT LOCK

45213-13601

$2.79

6

.STRIKER, SEAT LOCK

45215-26F00

Unavailable

7

.NUT

08316-1006A

$2.19

8

SHEET, HEAT SHIELD RUBBER

45256-31J00

Unavailable

9

BRACKET, SEAT SUPPORT

45220-47H00

$138.38

10

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

11

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$107.30

12

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

13

SCREW

02122-0630A

$1.74

14

CABLE, SEAT LOCK

45280-18G01

$20.47

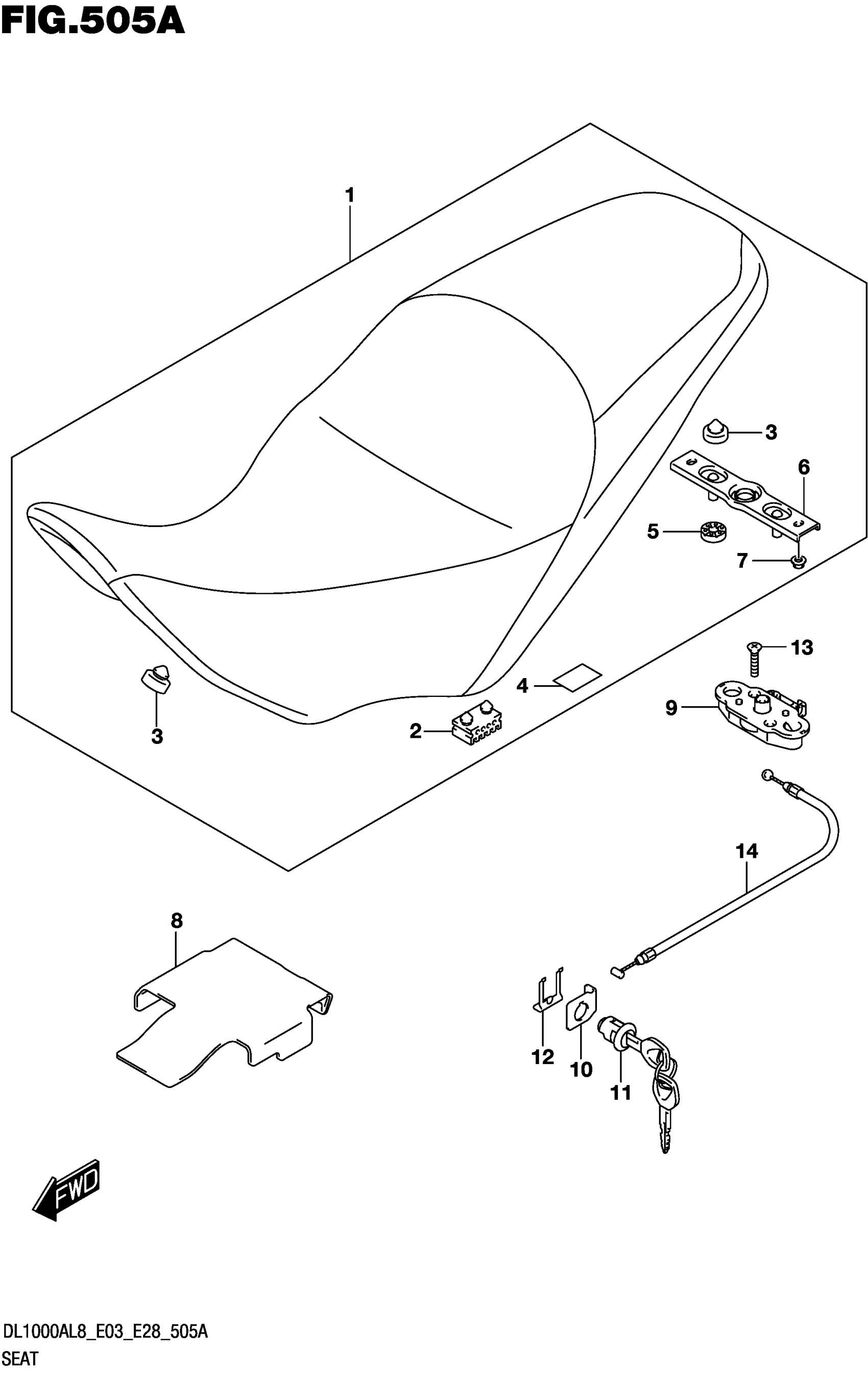

Suzuki DL1000AL8 (2018) SEAT Diagram
