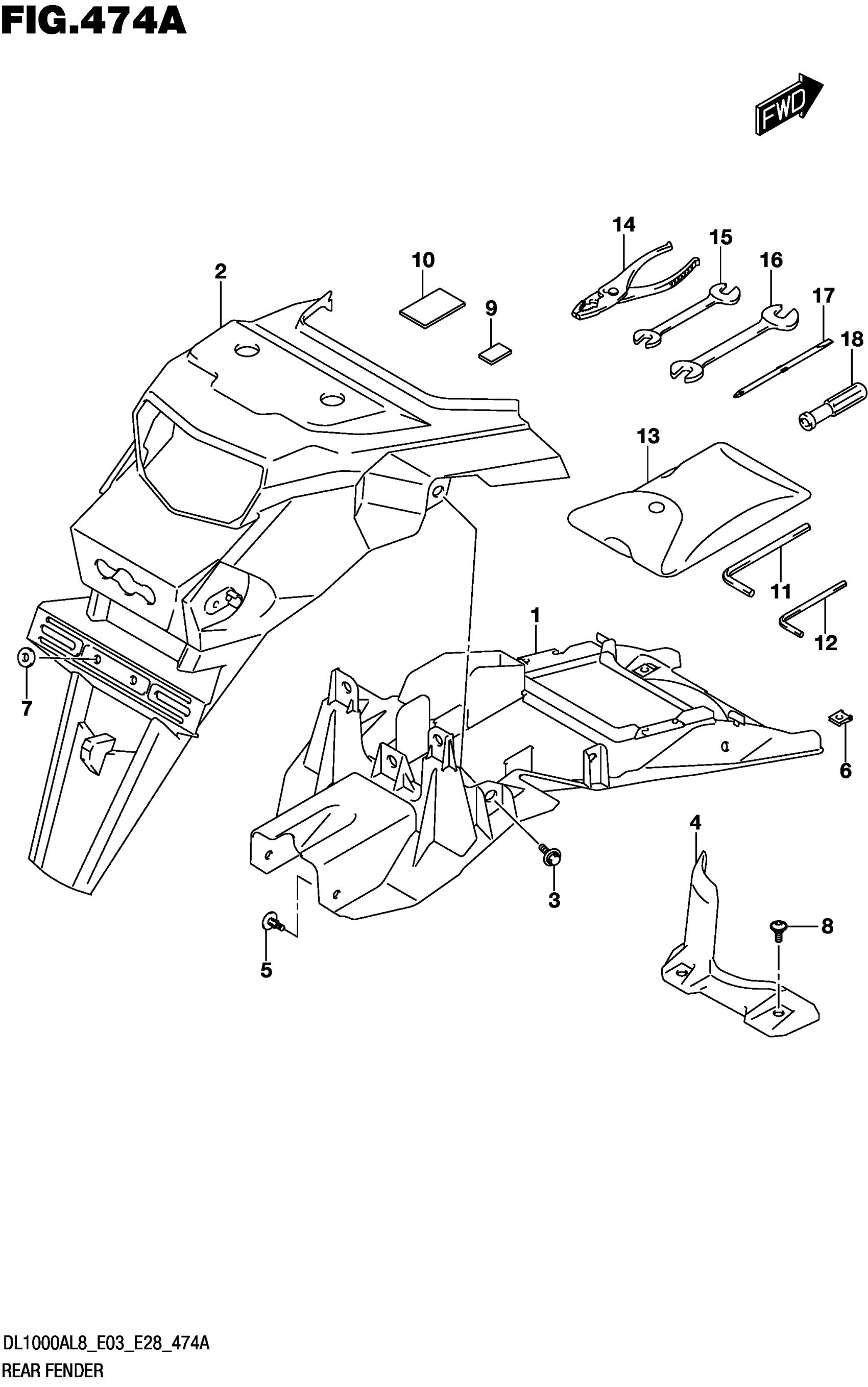

Suzuki DL1000AL8 (2018) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT (BLACK)

63111-31J10-291

Unavailable

2

FENDER, REAR (BLACK)

63112-31J00-291

$144.45

3

BOLT (6X16)

09116-06165

$3.03

4

MUDGUARD, REAR FENDER

63411-31J10

Unavailable

5

CLIP

94479-35F00

$5.62

6

NUT

09148-05052

$3.37

7

WASHER

08322-0106B

$2.26

8

SCREW (5X13)

47912-31J00

$2.92

9

CUSHION, BATTERY (30X130X3) This part replaces 33972-31D00.

33652-19B00

$6.03

10

CUSHION

15896-65J00

Unavailable

11

SPANNER,HEXAGON (5)

96514-17K00

$4.77

12

SPANNER,HEXAGON (4)

96514-17K10

$3.30

13

TOOL BAG This part replaces 09811-00173.

09811-00309

$6.50

14

PLIER

09812-00006

$10.65

15

SPANNER,OPEN (14X17)

09813-00031

Unavailable

16

OPEN SPANNER (10X12)

09813-00030

$5.75

17

DRIVER

09814-00015

$3.70

18

GRIP,DRIVER

09814-00016

$4.22
