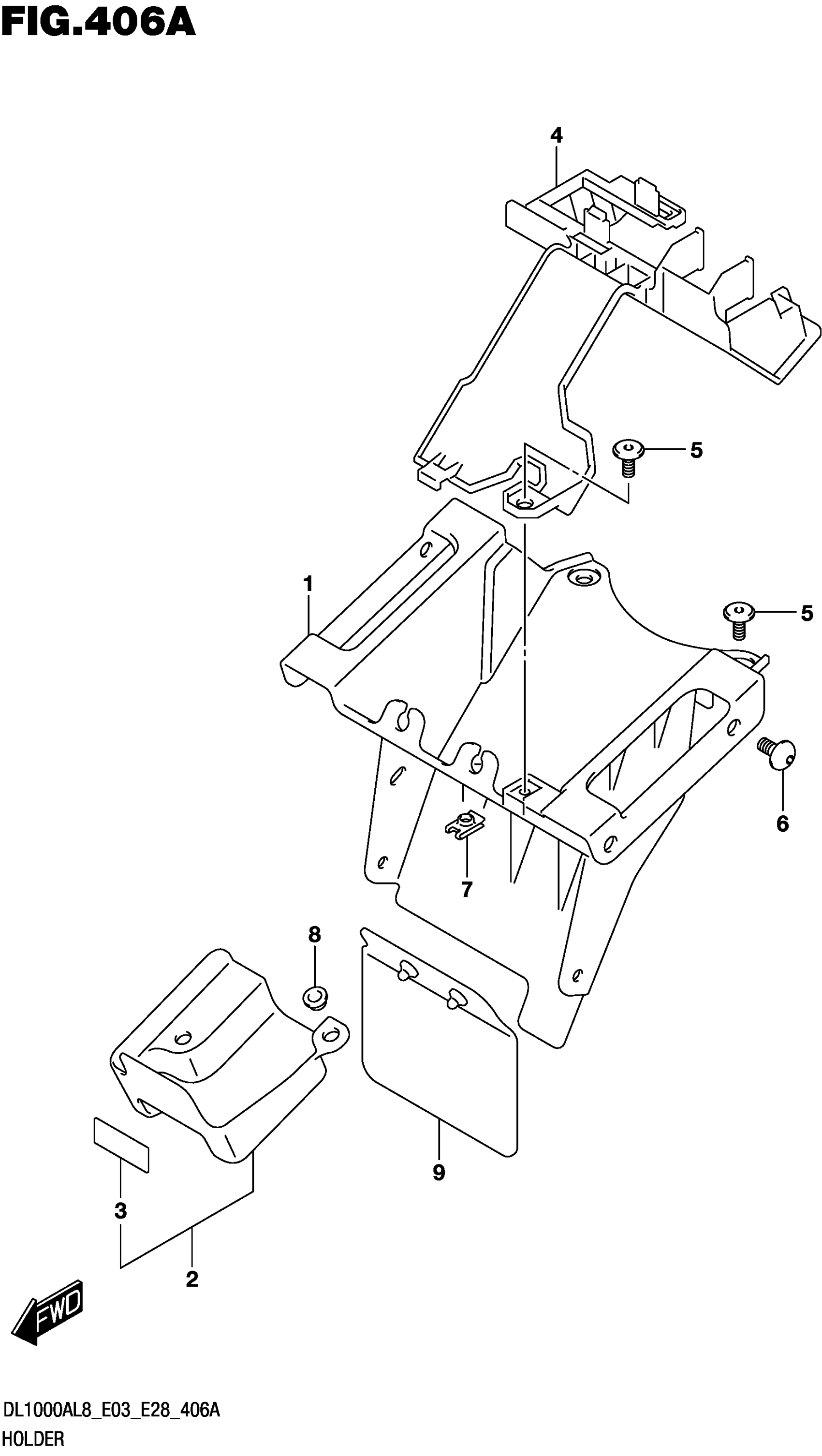

Suzuki DL1000AL8 (2018) HOLDER Diagram

#

Description

Price

1

HOLDER, BATTERY

47414-31J10

Unavailable

2

COVER, ACTUATOR

47420-31J00

Unavailable

3

.CUSHION, ACTUATOR COVER

47423-31J00

Unavailable

4

LID, BATTERY HOLDER

47431-31J10

Unavailable

5

SCREW (5X13)

09139-05092

$2.25

6

SCREW (6X12)

09139-06144

$2.50

7

NUT

09148-05052

$3.37

8

WASHER

09169-06082

$4.32

9

MUDGUARD, ACTUATOR COVER

47422-31J00

Unavailable
