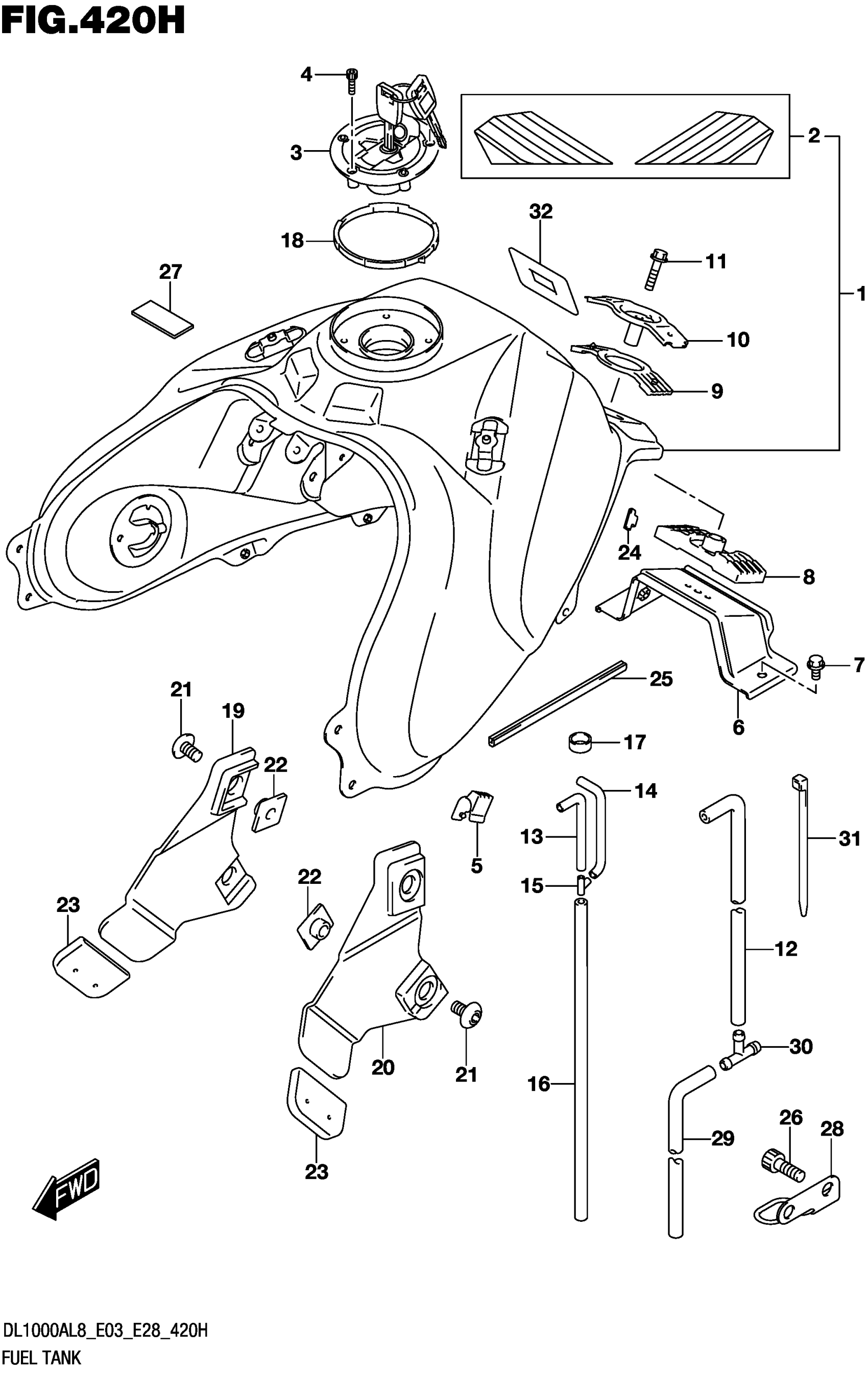

Suzuki DL1000AL8 (2018) FUEL TANK (DL1000XAL8 E28) Diagram

#

Description
Price

1-1

TANK, FUEL (YELLOW)

44100-31JA0-YU1

$1,368.25

1-2

TANK, FUEL (BLACK)

44100-31JA0-YVB

$1,325.68

1-3

TANK, FUEL (WHITE)

44100-31JA0-YWW

$1,325.68

2-1

.TAPE SET, FUEL TANK | FOR YU1

68110-31J00-GY8

$61.05

2-1

(YELLOW/BLACK)

68110-31J00-GY8

$61.05

2-2

.TAPE SET, FUEL TANK | FOR YVB

68110-31J00-AA3

Unavailable

2-2

(GRAY/BLACK)

68110-31J00-AA3

Unavailable

2-3

.TAPE SET, FUEL TANK | FOR YWW

68110-31J00-BGZ

Unavailable

2-3

(GRAY/WHITE)

68110-31J00-BGZ

Unavailable

3

CAP SET,FUEL TANK FILLER

44200-17820

$242.68

4

BOLT

44244-11J00

$3.76

5

CUSHION,FUEL TANK SIDE

44541-31J00

Unavailable

6

BRACKET,FUEL TANK REAR

44550-31J00

Unavailable

7

BOLT (8X16)

01550-0816A

$2.31

8

CUSHION,FUEL TANK RR LWR

44545-06G00

$20.58

9

CUSHION,FUEL TANK RR UPR

44542-06G00

$18.93

10

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

11

BOLT (8X35)

01550-0835A

$2.80

12

HOSE, WATER DRAIN

44423-31J20

Unavailable

13

HOSE, FUEL TANK BRTHR NO.1

44424-31J20

Unavailable

14

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$15.48

15

3 WAY

09367-06007

$3.17

16

HOSE, FUEL TANK BRTHR NO.2

44424-31J10

Unavailable

17

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

18

MOLDING, FUEL TANK COVER

68241-31J00

Unavailable

19

BRACKET, FUEL TANK COVER

44179-31J00

$13.07

19

SIDE RH

44179-31J00

$13.07

20

BRACKET, FUEL TANK COVER

44189-31J00

$13.07

20

SIDE LH

44189-31J00

$13.07

21

SCREW (6X10)

09139-06181

$3.52

22

NUT (M6)

44523-47H00

$13.30

23

CUSHION,FUEL TANK COVER BRKT

44542-31J00

$5.43

24

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.46

25

MOLDING, FUEL TANK REAR

44552-24B00

$13.26

26

BOLT

07130-1016B

Unavailable

27

CUSHION, FUEL TANK

44544-31J00

$6.23

28

GUIDE,DRAIN HOSE

44480-31J00

$11.50

29

HOSE, FUEL TANK DRAIN NO.2

44423-31J11

Unavailable

30

3 WAY

09367-08005

$5.25

31

CLAMP (L:145)

09407-14407

$2.80

32

CUSHION

44545-31J00

Unavailable
