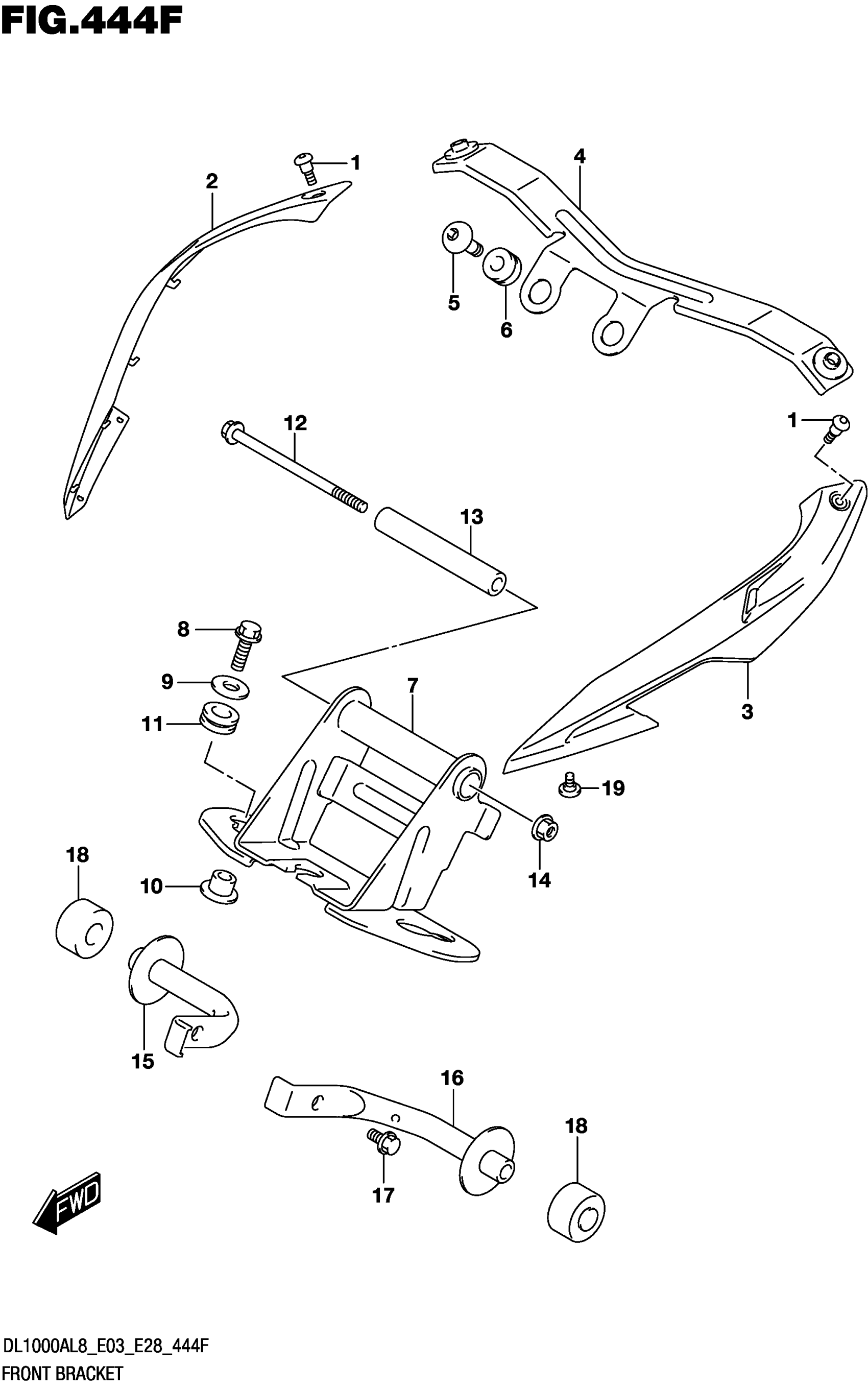

Suzuki DL1000AL8 (2018) FRONT BRACKET (DL1000AL8 E33) (FOR YVB,YWW) Diagram

SCREW

44193-31J00

$5.33

COVER, SIDE REAR RH (BLACK)

94420-31J10-YVB

Unavailable

COVER, SIDE REAR RH (WHITE)

94420-31J10-YWW

$145.97

COVER, SIDE REAR LH (BLACK)

94430-31J10-YVB

Unavailable

COVER, SIDE REAR LH (WHITE)

94430-31J10-YWW

$153.22

BRACKET, COVER

44160-31J00

$21.38

BOLT (6X20)

09139-06190

$4.17

CUSHION, COVER

44164-31J00

Unavailable

BRACKET,FUEL TANK FRONT

44520-31J01

$57.32

SCREW (6X25)

09139-06192

$3.23

WASHER This part replaces 09160-06012.

09160-06054

$1.62

SPACER, FUEL TANK FR

44512-16G00

$7.44

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

BOLT

01550-0695A

Unavailable

SPACER

44561-35F00

$13.88

NUT

08319-3106B

$2.45

BRACKET, SIDE RH

44560-31J00

$16.58

BRACKET, SIDE LH

44560-31J00

$16.58

BOLT

01550-0612A

$1.97

CUSHION,FRONT SIDE BRKT This part replaces 44543-31J00.

44543-31J01

$5.00

SCREW (5X13)

09139-05091

$2.03
