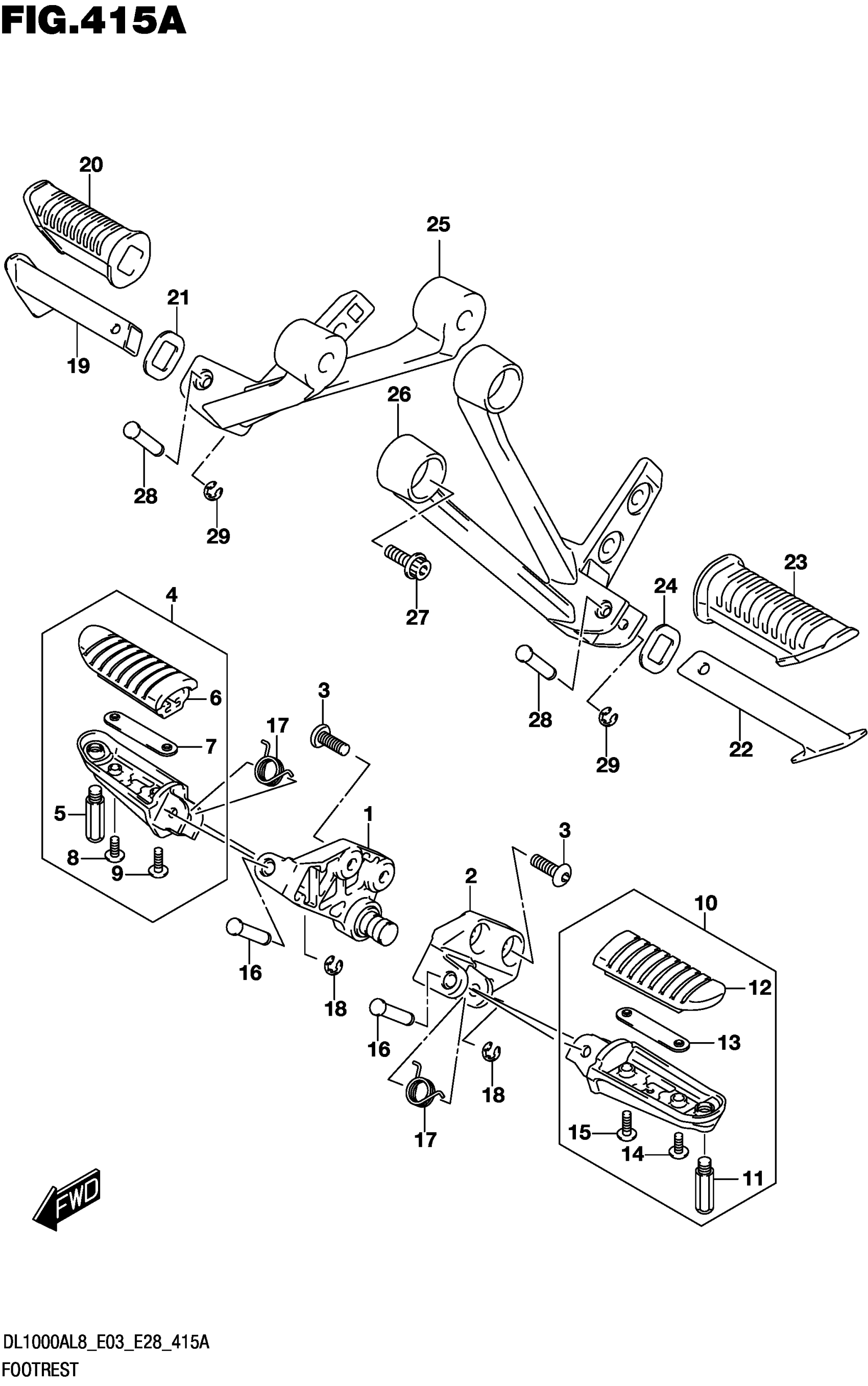

Suzuki DL1000AL8 (2018) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST RH (BLACK This part replaces 43510-06G01-YAP.

43510-06G10-YAP

$94.68

2

BRACKET,FR FOOTREST,L (BLACK) This part replaces 43521-06G01-YAP.

43521-06G11-YAP

$49.10

3

BOLT (8X23)

09106-08150

$3.42

4

FOOTREST ASSY,FRONT RH

43501-31J00

$117.60

5

.SENSOR, FOOTREST

43576-31J00

$10.40

6

.RUBBER

43551-06G00

$14.02

7

.PLATE

43552-06G00

$12.82

8

.SCREW | OUTER

02142-0516A

$1.49

9

SCREW | INNER

02142-0520A

$1.49

10

FOOTREST ASSY,FRONT LH

43502-31J00

$104.38

11

.SENSOR, FOOTREST

43576-31J00

$10.40

12

.RUBBER

43551-06G00

$14.02

13

.PLATE

43552-06G00

$12.82

14

.SCREW | OUTER

02142-0516A

$1.49

15

SCREW | INNER

02142-0520A

$1.49

16

PIN

09208-08019

$2.79

17

SPRING

09448-18022

$3.79

18

E RING

08332-1106A

$1.49

19

BAR, PILLION FOOTREST RH This part replaces 43610-34A30.

43610-34A60

$65.45

20

RUBBER, PILLION FOOTREST This part replaces 43612-33G01.

43612-33G30

$8.15

21

WASHER, FOOTREST RUBBER

43631-31J00

$5.15

22

BAR, PILLION FOOTREST LH This part replaces 43710-34A30.

43710-34A60

$62.45

23

RUBBER, PILLION FOOTREST This part replaces 43612-33G01.

43612-33G30

$8.15

24

WASHER, FOOTREST RUBBER

43631-31J00

$5.15

25

BRKT,PILLION FOOTREST RH (BLA

43811-31J00-YAP

$139.82

26

BRKT,PILLION FOOTREST LH (BLA

43821-31J00-YAP

$139.82

27

BOLT (8X30)

09106-08131

$3.55

28

PIN

09208-06007

$3.29

29

E RING

08332-1104A

$1.49
