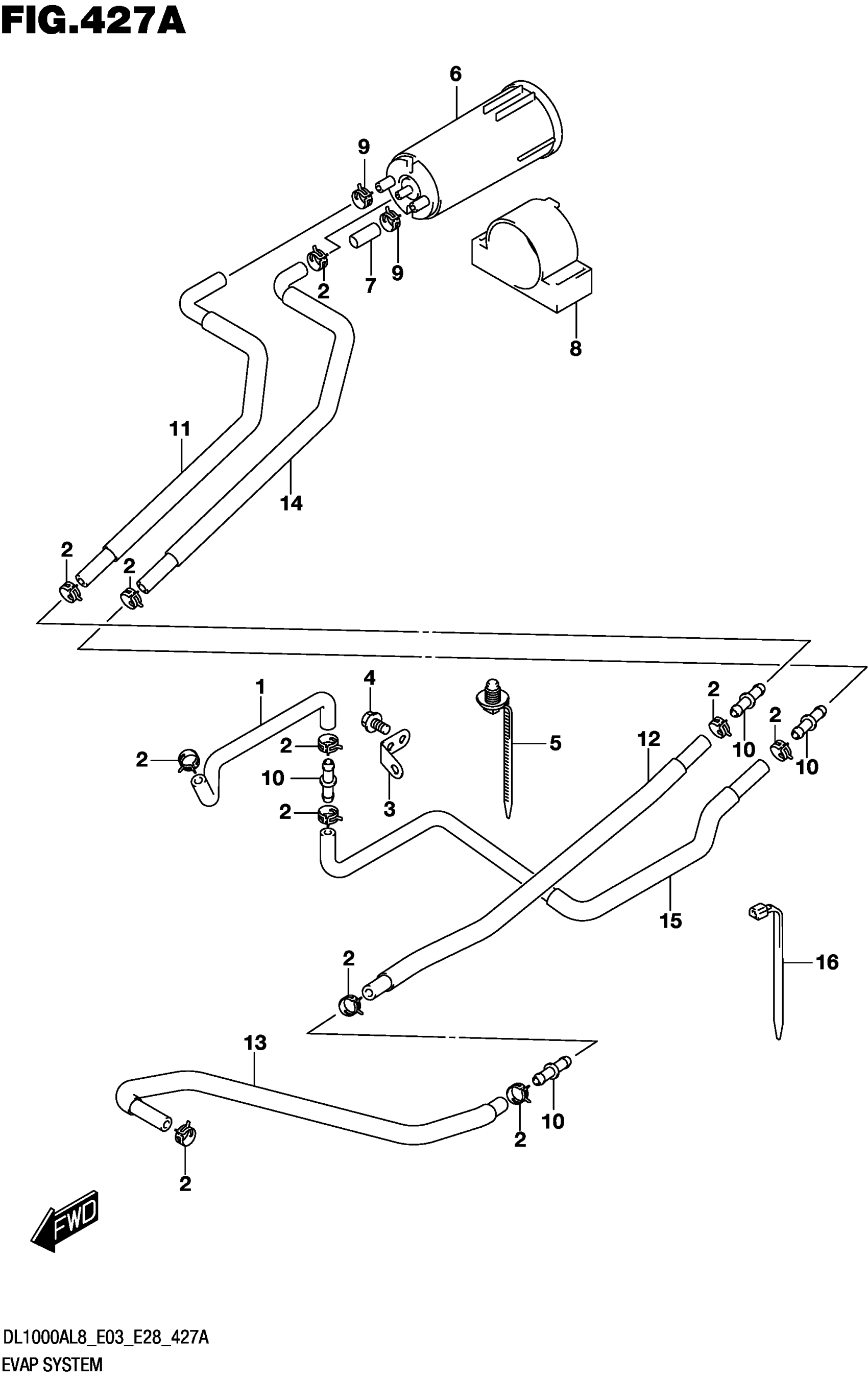

Suzuki DL1000AL8 (2018) EVAP SYSTEM (DL1000AL8 E33) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE

44434-31J01

Unavailable

2

CLIP

09401-11413

$2.26

3

BRACKET, SURGE HOSE

18572-31J00

$9.23

4

BOLT

01550-0612A

$1.97

5

CLAMP (L:154)

09407-17403

$4.91

6

CANISTER

17210-15H10

Unavailable

7

CAP (OD:11.5)

09251-07003

$2.53

8

CUSHION, CANISTER

18571-31J10

Unavailable

9

CLIP

09401-12404

$2.34

10

JOINT

09367-06009

Unavailable

11

HOSE, CSTR PURGE NO.1

18561-31JB0

Unavailable

12

HOSE, CSTR PURGE NO.2

18561-31J10

Unavailable

13

HOSE, CSTR PURGE NO.3

18561-31J20

Unavailable

14

HOSE, CSTR SURGE NO.1

18563-31JA0

Unavailable

15

HOSE, CSTR SURGE NO.2

18563-31JB0

Unavailable

16

CLAMP (L:165)

09407-18402

$2.19
