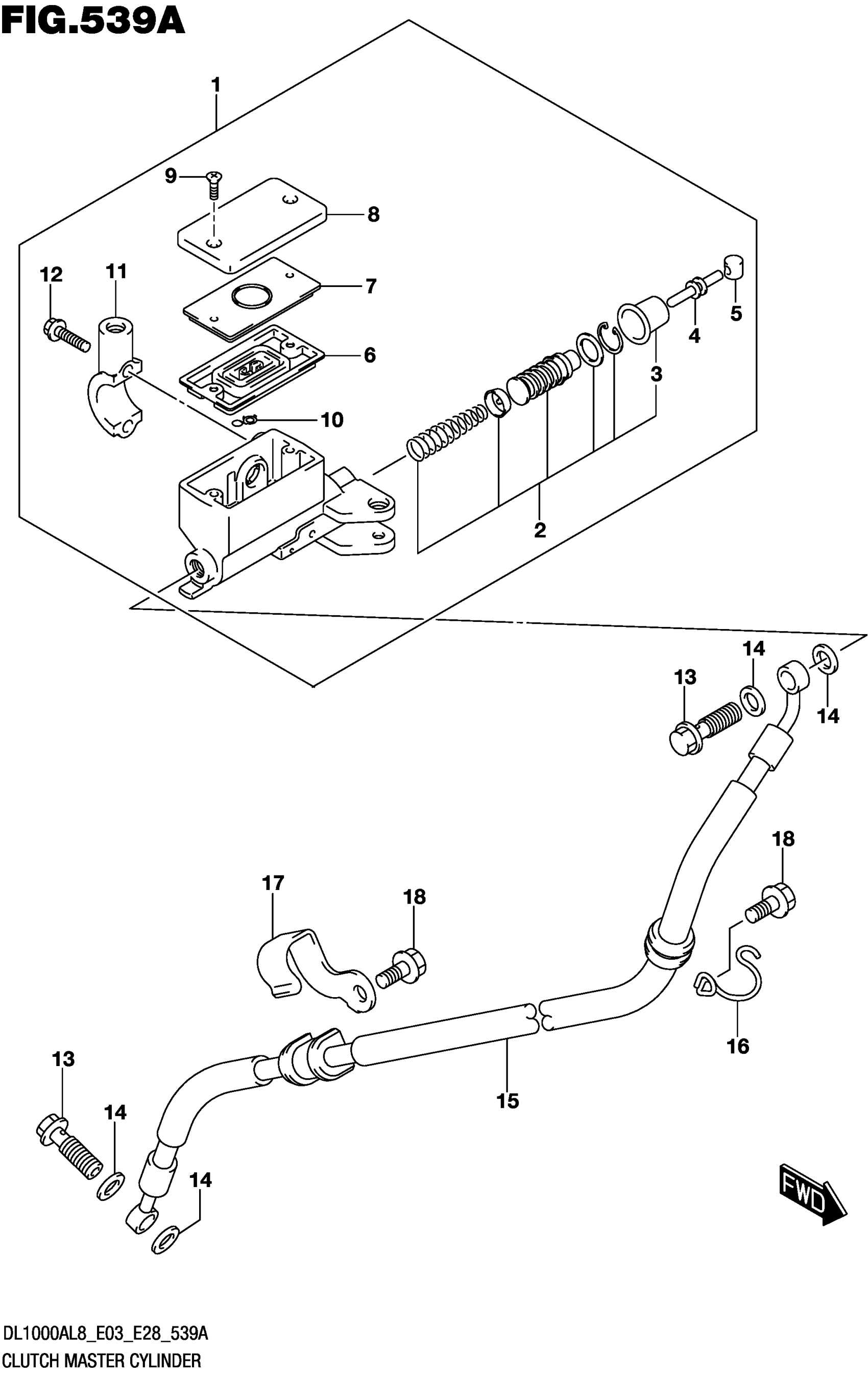

Suzuki DL1000AL8 (2018) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,CLUTCH MASTER

59800-32F40

$313.58

2

.PISTON & CUP SET

59800-31810

$97.42

3

..BOOT

59866-23H00

$8.98

4

.ROD,PUSH

59871-23H10

Unavailable

5

.BUSH

59892-08A00

$4.63

6

.DIAPHRAGM

59667-49460

$8.95

7

.PLATE, DIAPHRAGM

59668-41C00

$8.54

8

.CAP

59669-10G20

$64.72

9

.SCREW

69689-49300

$1.81

10

.PROTECTOR

59664-32F00

$13.20

11

.HOLDER

59671-32F00

$17.87

12

.BOLT (6X22)

59675-02FA0

$3.49

13

UNION

09360-10062

$5.81

14

WASHER (10X15X1.5)

09161-10009

$1.83

15

HOSE, CLUTCH

59910-31J00

Unavailable

16

CLAMP, CLUTCH HOSE NO.1

59915-31J00

Unavailable

17

CLAMP, CLUTCH HOSE NO.2

59921-31J00

Unavailable

18

BOLT

01550-0612A

$1.97
